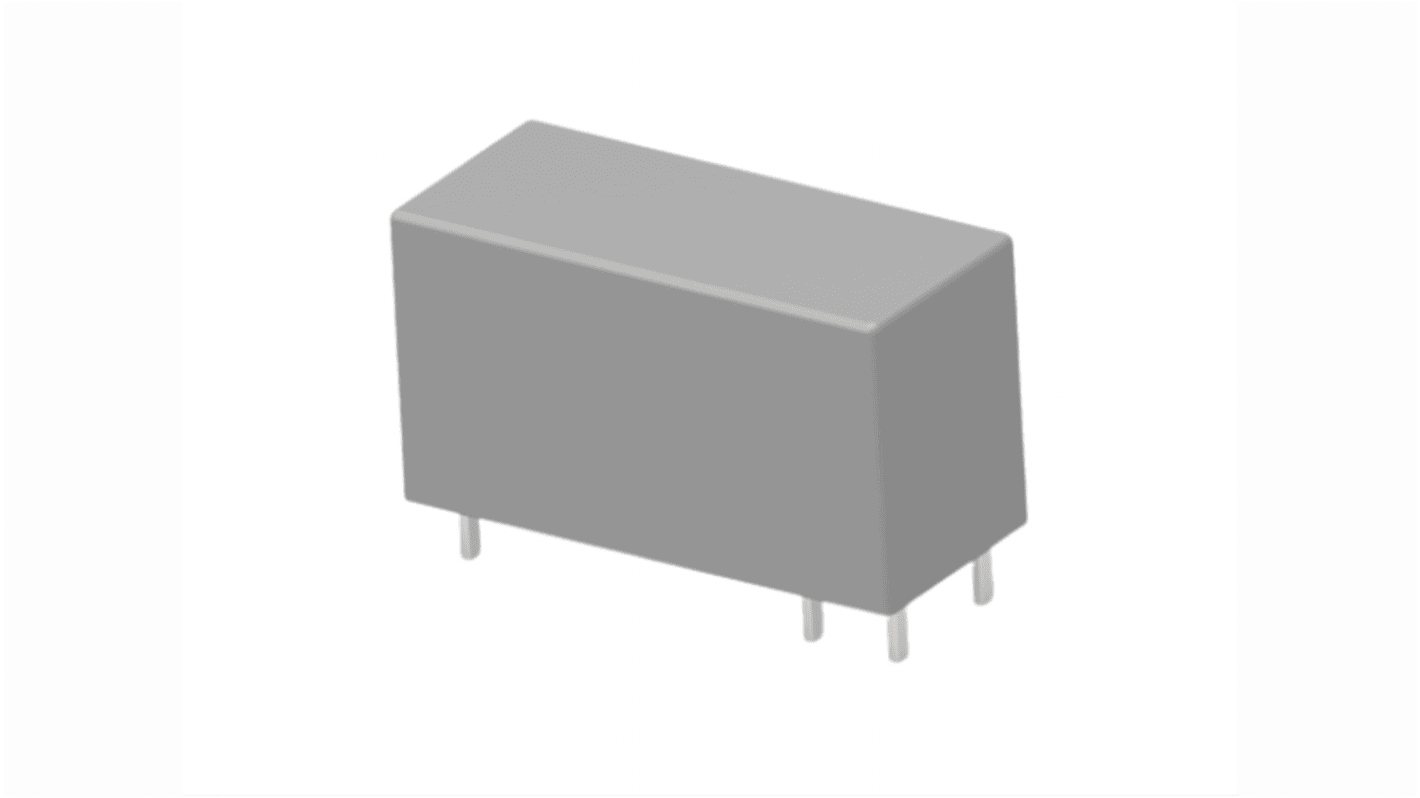

TE Connectivity PCB Mount, Plug In Power Relay, 5V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 276-3901
- Mfr. Part No.:
- 4-1393240-0 RT334005
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£5.00
(exc. VAT)
£6.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 744 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.00 |
| 10 - 99 | £4.79 |
| 100 - 249 | £4.54 |
| 250 + | £4.27 |
*price indicative
- RS Stock No.:
- 276-3901
- Mfr. Part No.:
- 4-1393240-0 RT334005
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount, Plug In | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Series | SCHRACK Power PCB Relay RT1 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 29mm | |
| Coil Resistance | 62 Ω | |
| Coil Power | 403mW | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +85?°C | |
| Height | 15.7mm | |
| Minimum Operating Temperature | +70°C | |
| Depth | 12.7mm | |
| Width | 12.7mm | |
| Dimensions | 29 x 12.7 x 15.7mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount, Plug In | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Series SCHRACK Power PCB Relay RT1 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Length 29mm | ||
Coil Resistance 62 Ω | ||
Coil Power 403mW | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +85?°C | ||
Height 15.7mm | ||
Minimum Operating Temperature +70°C | ||
Depth 12.7mm | ||
Width 12.7mm | ||
Dimensions 29 x 12.7 x 15.7mm | ||
The TE Connectivity Standard Power Relay open or close a circuit by using an electromagnetic coil for seamless power flow.
UL Coil Insulation Class F
Monostable and DC coil magnetic system
Monostable and DC coil magnetic system
