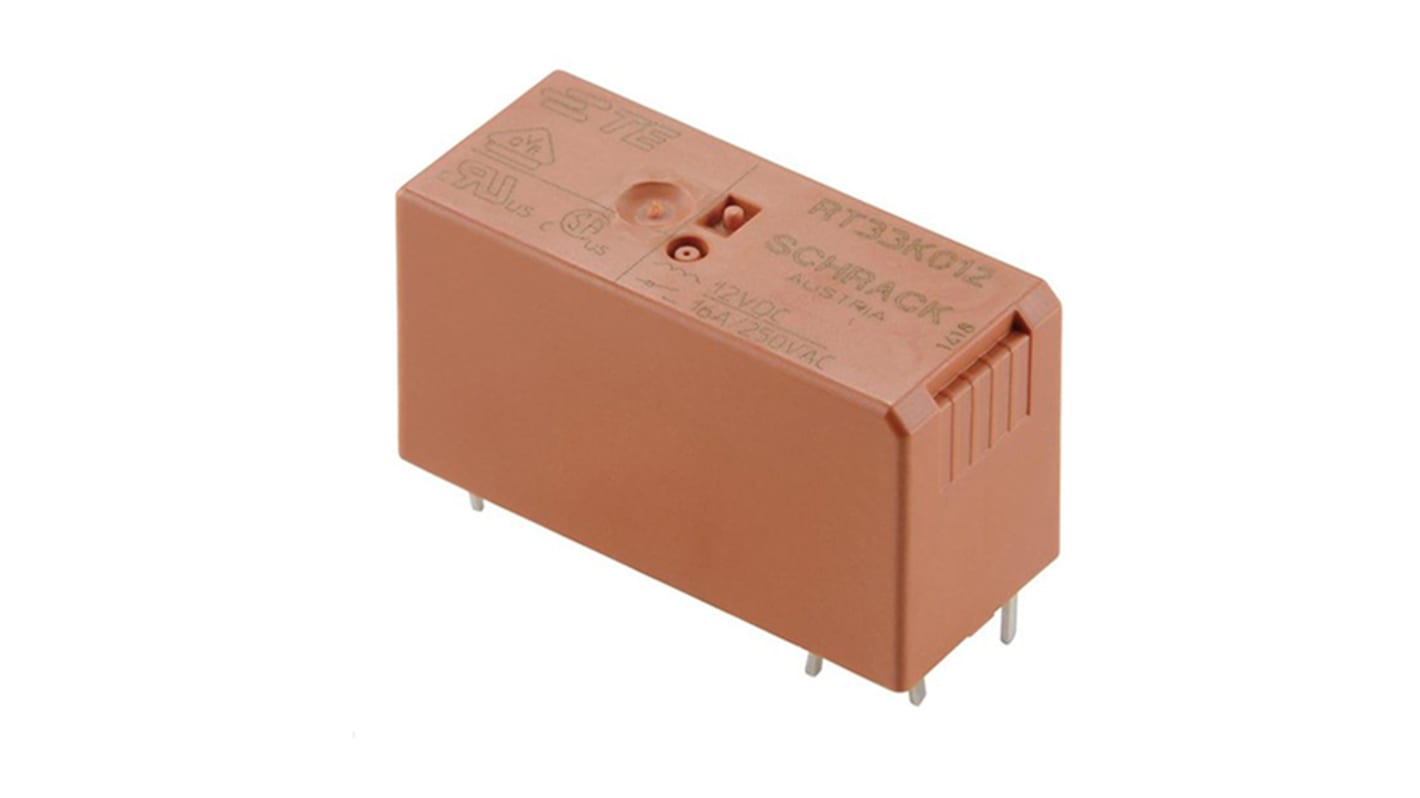

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 909-7949
- Mfr. Part No.:
- 2-1393240-3
- Brand:
- TE Connectivity
23 In stock - FREE next working day delivery available
Added
Price Each
£5.99
(exc. VAT)
£7.19
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £5.99 |
| 5 - 9 | £5.80 |
| 10 - 24 | £5.51 |
| 25 - 49 | £4.97 |
| 50 + | £4.44 |
- RS Stock No.:
- 909-7949
- Mfr. Part No.:
- 2-1393240-3
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
RT1& RT2 Series - Bistable/Latching Relays
From TE Connectivity, the RT1 and RT2 Series of relays are polarized bistable (latching) relays with either 1 or 2 coils. Featuring reinforced insulation and a degree of shock resistance, the RT1 and RT2 series relays are typically used in battery powered equipment or applications where "memory function" is required (e.g. mains failure.)
Features and Benefits:
• Reinforced insulation
• RTII - flux proof
• 5mm pinning
• Shock resistance (destructive) 100g
• RTII - flux proof
• 5mm pinning
• Shock resistance (destructive) 100g
Approvals
UL, CSA, VDE
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 400V |
| Length | 29mm |
| Coil Resistance | 360Ω |
| Coil Power | 400mW |
| Isolation Coil To Contact | 5kVrms |
| Standards Met | CSA, cULus, VDE |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Minimum Operating Temperature | -40°C |
| Life | 30000 (Electrical) Operations, 30000000 (Mechanical) Operations |
| Depth | 12.7mm |
| Maximum Operating Temperature | +85°C |
| Height | 15.7mm |
| Maximum Switching Power AC | 4 kVA |
| Application | Domestic Appliances, Heating Control, Lighting Controls |
