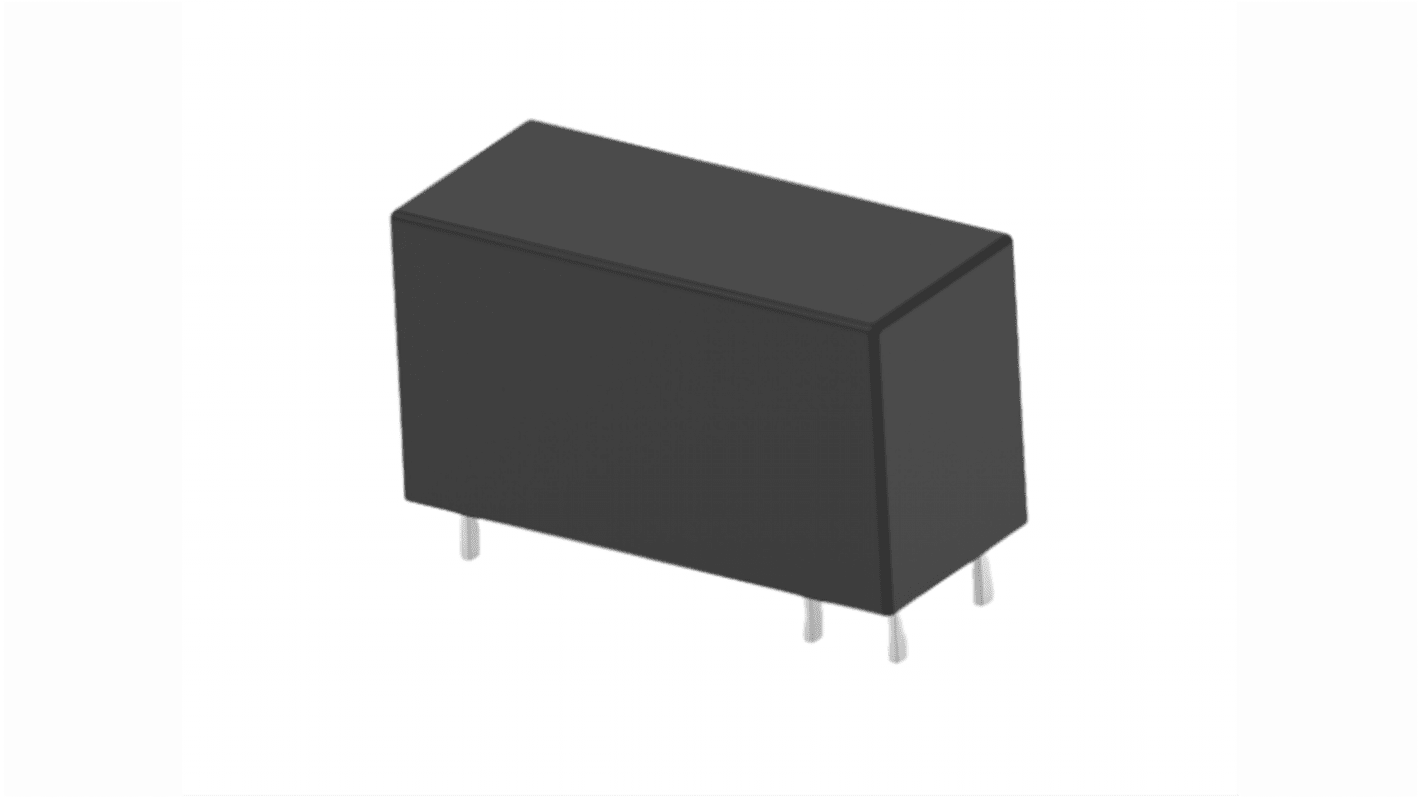

TE Connectivity PCB Mount, Plug In Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 276-3889
- Mfr. Part No.:
- 2-1393237-5
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 20 units)*
£89.62
(exc. VAT)
£107.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 280 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 20 | £4.481 | £89.62 |
| 40 - 80 | £4.212 | £84.24 |
| 100 - 180 | £4.069 | £81.38 |
| 200 + | £3.863 | £77.26 |
*price indicative
- RS Stock No.:
- 276-3889
- Mfr. Part No.:
- 2-1393237-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount, Plug In | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | Potter & Brumfield Power PCB Relay RT1 | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 29mm | |
| Coil Resistance | 360 Ω | |
| Coil Power | 400mW | |
| Contact Material | Silver Alloy | |
| Depth | 12.7mm | |
| Height | 15.7mm | |
| Width | 12.7mm | |
| Dimensions | 29 x 12.7 x 15.7mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount, Plug In | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
Series Potter & Brumfield Power PCB Relay RT1 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Length 29mm | ||
Coil Resistance 360 Ω | ||
Coil Power 400mW | ||
Contact Material Silver Alloy | ||
Depth 12.7mm | ||
Height 15.7mm | ||
Width 12.7mm | ||
Dimensions 29 x 12.7 x 15.7mm | ||
The TE Connectivity Potter and Brumfield Standard Power Relay open or close a circuit by using an electromagnetic coil for seamless power flow.
UL Coil Insulation Class F coil
Monostable and DC coil magnetic system
Monostable and DC coil magnetic system
