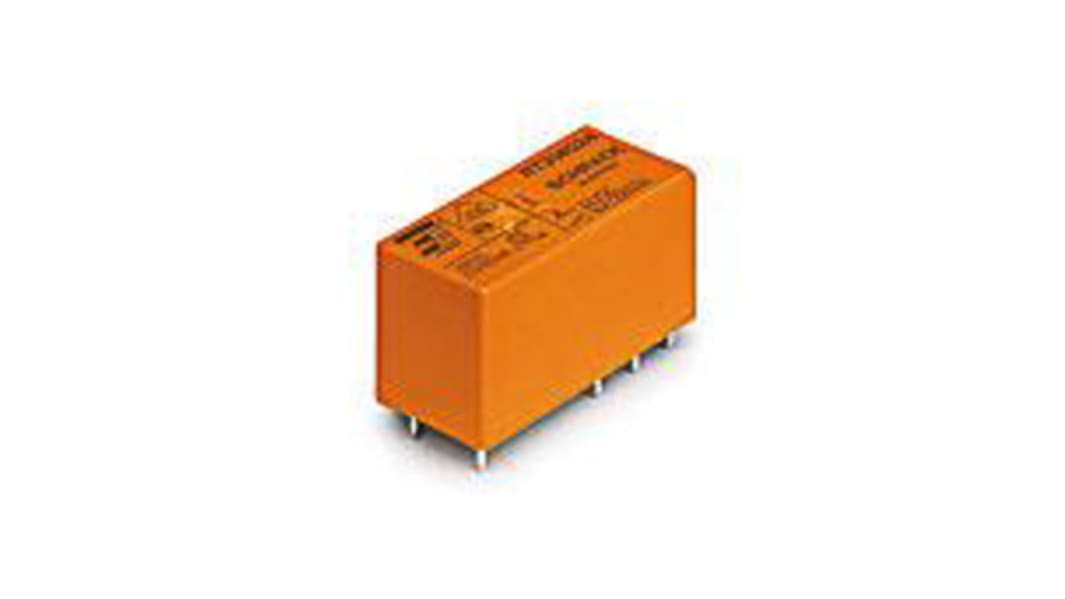

TE Connectivity PCB Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 161-4019
- Mfr. Part No.:
- 2-1393240-7
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 20 units)*
£89.62
(exc. VAT)
£107.54
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 20 | £4.481 | £89.62 |
| 40 - 80 | £4.257 | £85.14 |
| 100 + | £4.122 | £82.44 |
*price indicative
- RS Stock No.:
- 161-4019
- Mfr. Part No.:
- 2-1393240-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | SCHRACK | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 360Ω | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL E214025, IEC 60335-1, VDE Cert. No. 40007571, cCSAus 1142018 | |
| Height | 15.7mm | |
| Coil Power | 400mW | |
| Width | 12.7mm | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series SCHRACK | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 360Ω | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL E214025, IEC 60335-1, VDE Cert. No. 40007571, cCSAus 1142018 | ||
Height 15.7mm | ||
Coil Power 400mW | ||
Width 12.7mm | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
TE Connectivity MSR Series Miniature PCB Power Relays
MSR series miniature PCB power relays with AgSno contacts, high inrush currents and reinforced insulation. These MSR series miniature PCB power relays are through hole mount and the white plastic enclosures are wash tight.
High inrush currents with AgSno contacts
Dimensions 15 mm x 10 mm x 30 mm (H X W X D)
Operational Temperature -40 → +85°C
