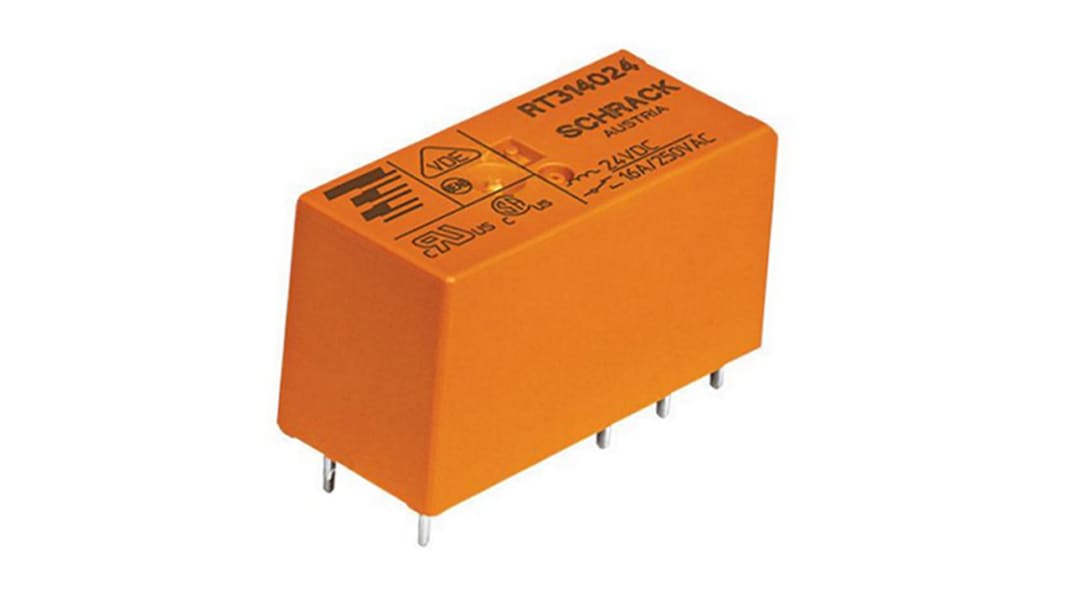

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPST

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£5.58

(exc. VAT)

£6.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 311 unit(s) ready to ship
  • Plus 45 unit(s) ready to ship from another location
  • Plus 37 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 99£5.58
100 - 249£4.73
250 - 499£4.61
500 +£4.48

*price indicative

RS Stock No.:
909-7937
Distrelec Article No.:
137-21-196
Mfr. Part No.:
2-1393240-4
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

24V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

16A

Number of Poles

1

Latching

No

Series

RT1

Terminal Type

PCB Pin

Maximum Switching Voltage AC

400V

Length

29mm

Coil Resistance

1440Ω

Coil Power

400mW

Minimum Operating Temperature

-40°C

Standards Met

CSA, cULus, VDE

Maximum Operating Temperature

+85°C

Depth

12.7mm

Life

30000 (Electrical) Operations, 30000000 (Mechanical) Operations

Height

15.7mm

Isolation Coil To Contact

5kVrms

Contact Material

Silver Alloy

Maximum Switching Power AC

4 kVA

Application

Domestic Appliances, Heating Control, Lighting Controls

RT1& RT2 Series - Bistable/Latching Relays


From TE Connectivity, the RT1 and RT2 Series of relays are polarized bistable (latching) relays with either 1 or 2 coils. Featuring reinforced insulation and a degree of shock resistance, the RT1 and RT2 series relays are typically used in battery powered equipment or applications where "memory function" is required (e.g. mains failure.)

Features and Benefits:


• Reinforced insulation
• RTII - flux proof
• 5mm pinning
• Shock resistance (destructive) 100g

Approvals

UL, CSA, VDE
