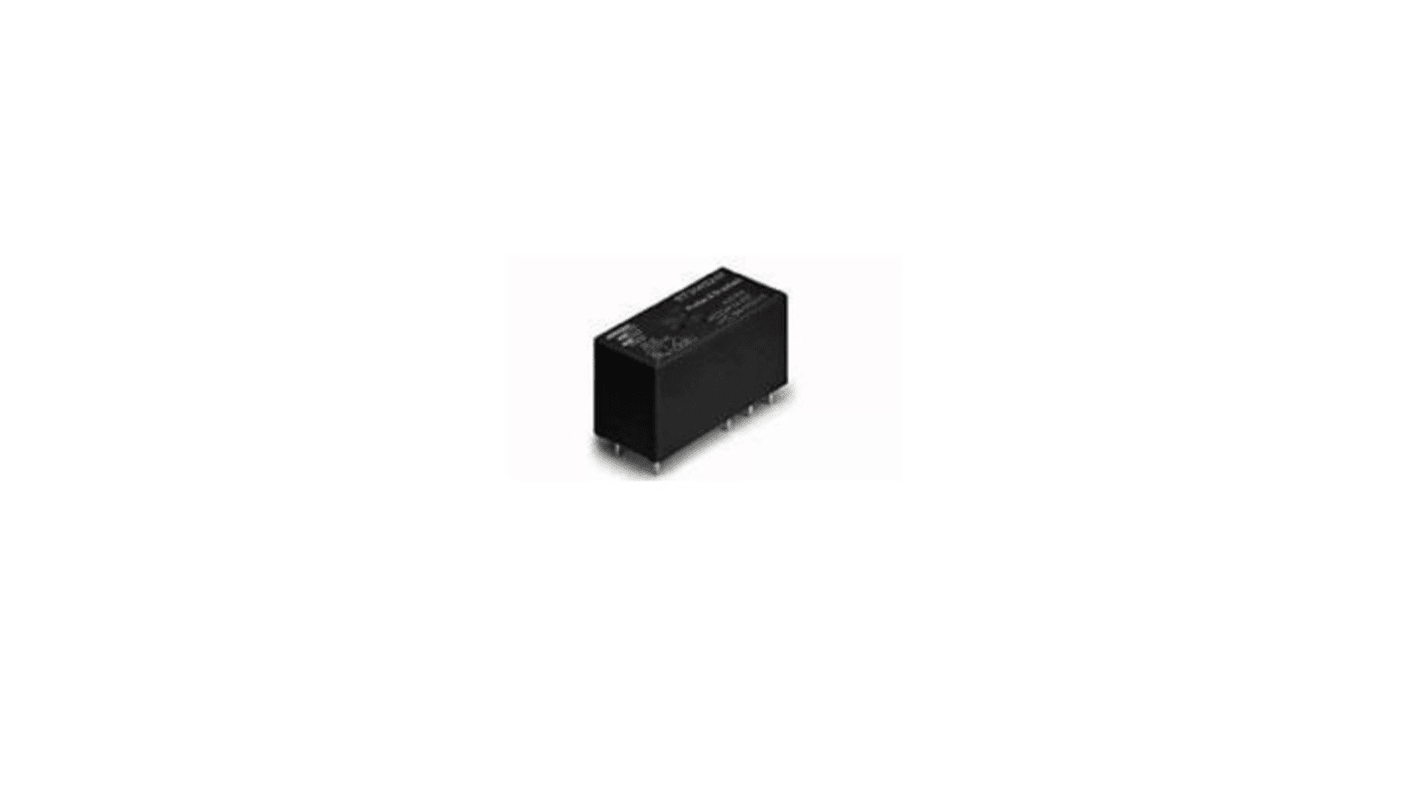

TE Connectivity PCB Power Relay, 24V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 272-7729
- Mfr. Part No.:
- RTE24024F 3-1393237-3
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 20 units)*
£67.76
(exc. VAT)
£81.32
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 80 | £3.388 | £67.76 |
| 100 - 180 | £3.205 | £64.10 |
| 200 - 480 | £3.068 | £61.36 |
| 500 - 980 | £2.987 | £59.74 |
| 1000 + | £2.911 | £58.22 |
*price indicative
- RS Stock No.:
- 272-7729
- Mfr. Part No.:
- RTE24024F 3-1393237-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | RT | |
| Terminal Type | Plug-In | |
| Switching Current | 8A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 1.4kΩ | |
| Height | 15.7mm | |
| Width | 12.7mm | |
| Standards/Approvals | EU ELV Directive 2000/53/EC, REACH EC 1907/2006, RoHS 2011/65/EU | |
| Coil Power | 400mW | |
| Length | 29mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series RT | ||
Terminal Type Plug-In | ||
Switching Current 8A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 1.4kΩ | ||
Height 15.7mm | ||
Width 12.7mm | ||
Standards/Approvals EU ELV Directive 2000/53/EC, REACH EC 1907/2006, RoHS 2011/65/EU | ||
Coil Power 400mW | ||
Length 29mm | ||
Contact Material Silver Nickel Alloy | ||
The TE Connectivity Power relay is a standard type power relay. This power relay supports Mono stable, DC coil magnetic system with 400 mW DC coil power rating.
RoHS compliant
REACH compliant
UL coil insulation class F
1440 ohms coil resistance
