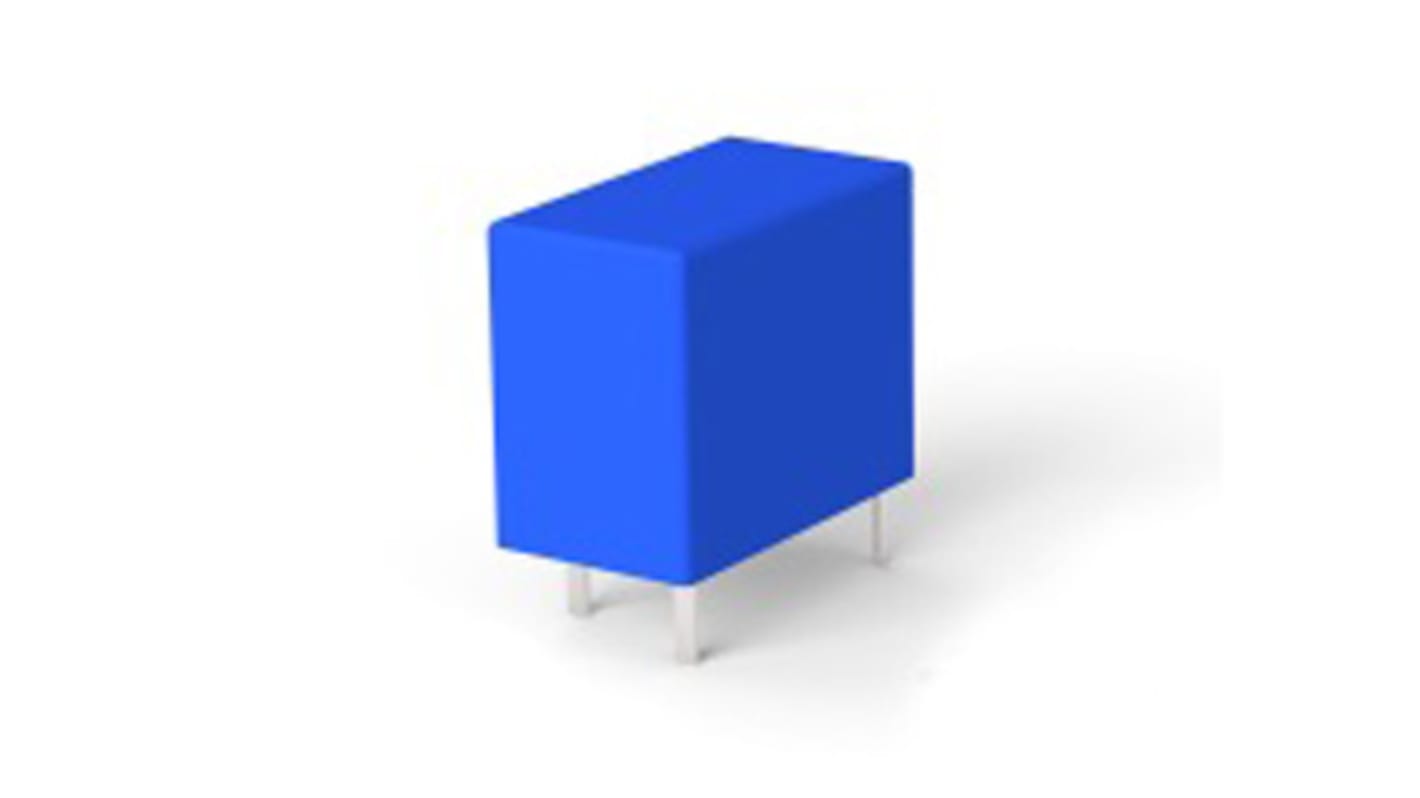

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 163-9320
- Mfr. Part No.:
- OJE-SH-112HM,000
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 163-9320
- Mfr. Part No.:
- OJE-SH-112HM,000
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | OJE | |
| Maximum Switching Voltage AC | 277V | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 18.2mm | |
| Coil Resistance | 320Ω | |
| Coil Power | 450mW | |
| Isolation Coil To Contact | 3kVrms | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -30°C | |
| Height | 14.7mm | |
| Standards Met | CQC03001007764, TUV R 50139166, UL E82292, VDE 40007630 | |
| Depth | 10.2mm | |
| Contact Material | Silver | |
| Life | 100000 (Electrical) operations, 10000000 (Mechanical) operations | |
| Application | Appliances, Industrial Control | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Latching No | ||
Series OJE | ||
Maximum Switching Voltage AC 277V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 18.2mm | ||
Coil Resistance 320Ω | ||
Coil Power 450mW | ||
Isolation Coil To Contact 3kVrms | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -30°C | ||
Height 14.7mm | ||
Standards Met CQC03001007764, TUV R 50139166, UL E82292, VDE 40007630 | ||
Depth 10.2mm | ||
Contact Material Silver | ||
Life 100000 (Electrical) operations, 10000000 (Mechanical) operations | ||
Application Appliances, Industrial Control | ||
