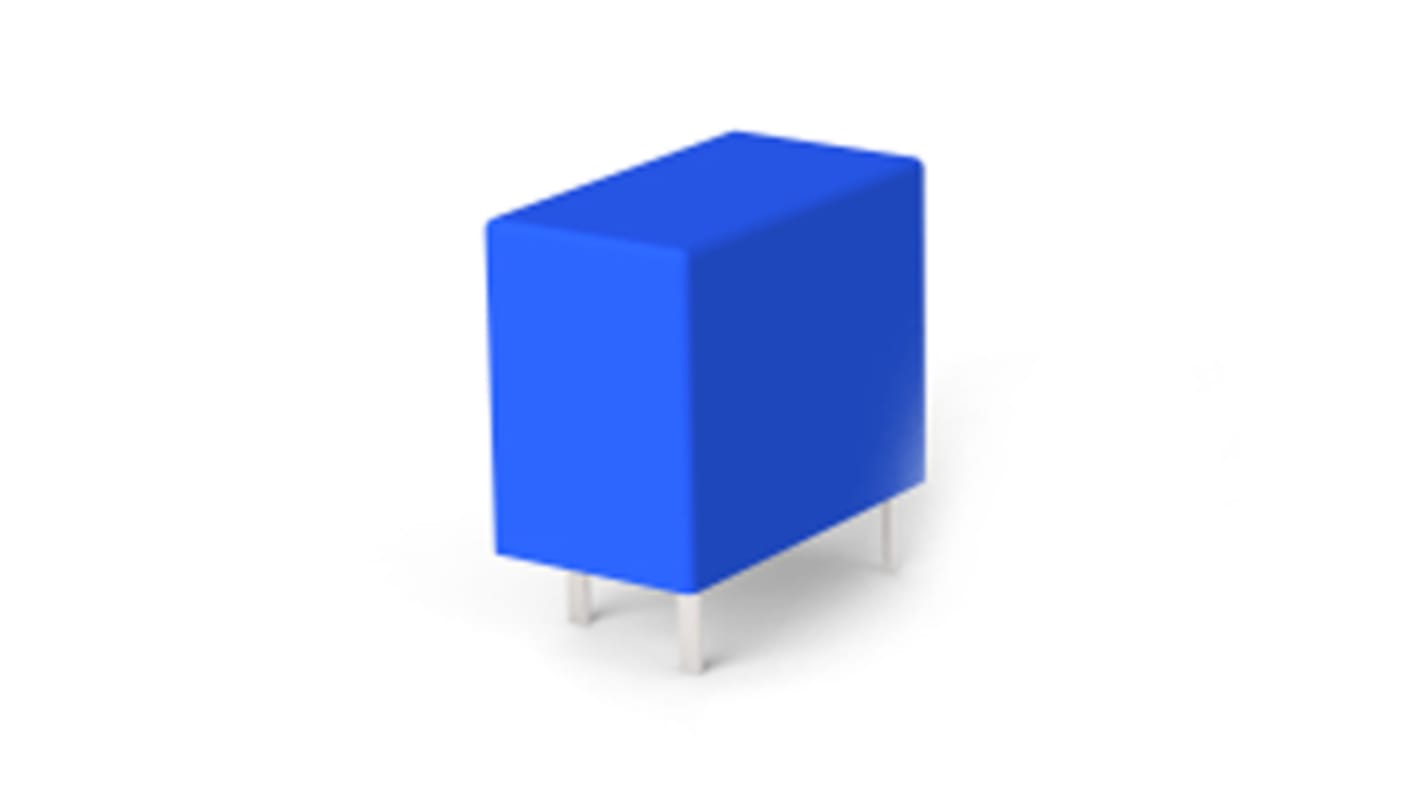

TE Connectivity PCB Power Relay, 5V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 163-9319
- Mfr. Part No.:
- OJE-SH-105HM,000
- Brand:
- TE Connectivity
Subtotal (1 bag of 1000 units)*
£1,244.41
(exc. VAT)
£1,493.29
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £1,244.41 | £1.244 |
*price indicative
- RS Stock No.:
- 163-9319
- Mfr. Part No.:
- OJE-SH-105HM,000
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | OJE | |
| Terminal Type | PCB Pin | |
| Switching Current | 10A | |
| Switching AC Voltage | 30V ac | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 55.6Ω | |
| Width | 10.2mm | |
| Coil Power | 450mW | |
| Height | 14.7mm | |
| Standards/Approvals | RoHS | |
| Length | 18.2mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series OJE | ||
Terminal Type PCB Pin | ||
Switching Current 10A | ||
Switching AC Voltage 30V ac | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 55.6Ω | ||
Width 10.2mm | ||
Coil Power 450mW | ||
Height 14.7mm | ||
Standards/Approvals RoHS | ||
Length 18.2mm | ||
Contact Material Silver Alloy | ||
Power Relay,PCB,SPST OJE Series
The OJE series of power relays are designed for HVAC and industrial control applications.
Standards
VDE 40007630, TUV R 50139166, UL E82292, CQC03001007764
