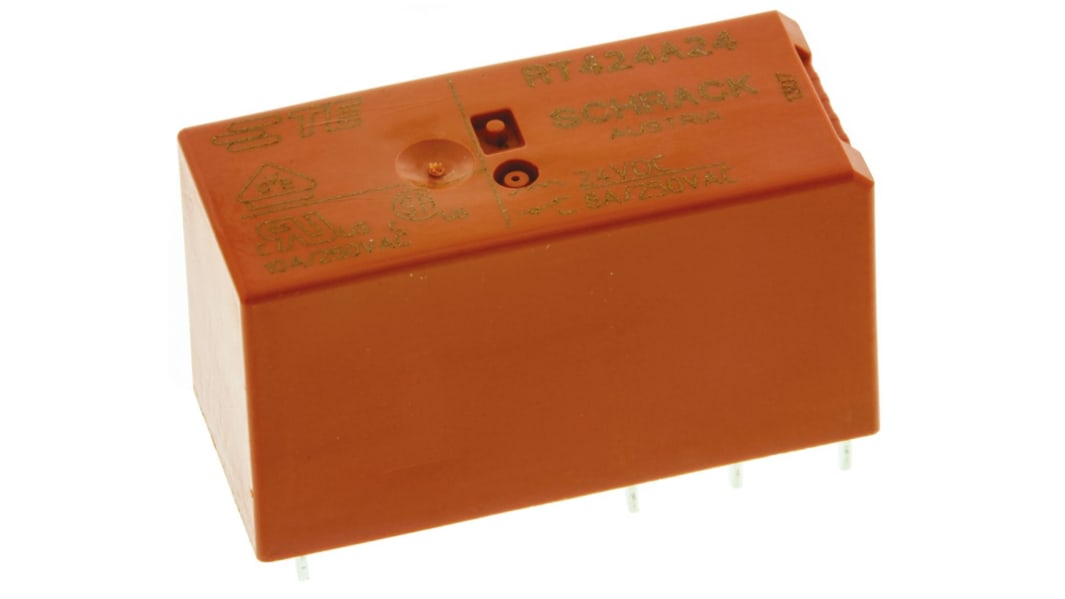

TE Connectivity PCB Mount Latching Power Relay, 24V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 163-8667
- Mfr. Part No.:
- RT424A24
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 20 units)**
£103.20
(exc. VAT)
£123.80
(inc. VAT)
100 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit | Per Box** |
|---|---|---|
| 20 - 20 | £5.16 | £103.20 |
| 40 - 80 | £4.902 | £98.04 |
| 100 - 180 | £4.386 | £87.72 |
| 200 - 480 | £4.133 | £82.66 |
| 500 + | £4.025 | £80.50 |
**price indicative
- RS Stock No.:
- 163-8667
- Mfr. Part No.:
- RT424A24
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 2 | |
| Latching | Yes | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 29mm | |
| Coil Resistance | 1440Ω | |
| Minimum Operating Temperature | -10°C | |
| Depth | 12.7mm | |
| Maximum Operating Temperature | +85°C | |
| Height | 15.7mm | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 2 kVA | |
| Dimensions | 29 x 15.7 x 12.7mm | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching Yes | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 29mm | ||
Coil Resistance 1440Ω | ||
Minimum Operating Temperature -10°C | ||
Depth 12.7mm | ||
Maximum Operating Temperature +85°C | ||
Height 15.7mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 2 kVA | ||
Dimensions 29 x 15.7 x 12.7mm | ||
Application Power | ||
