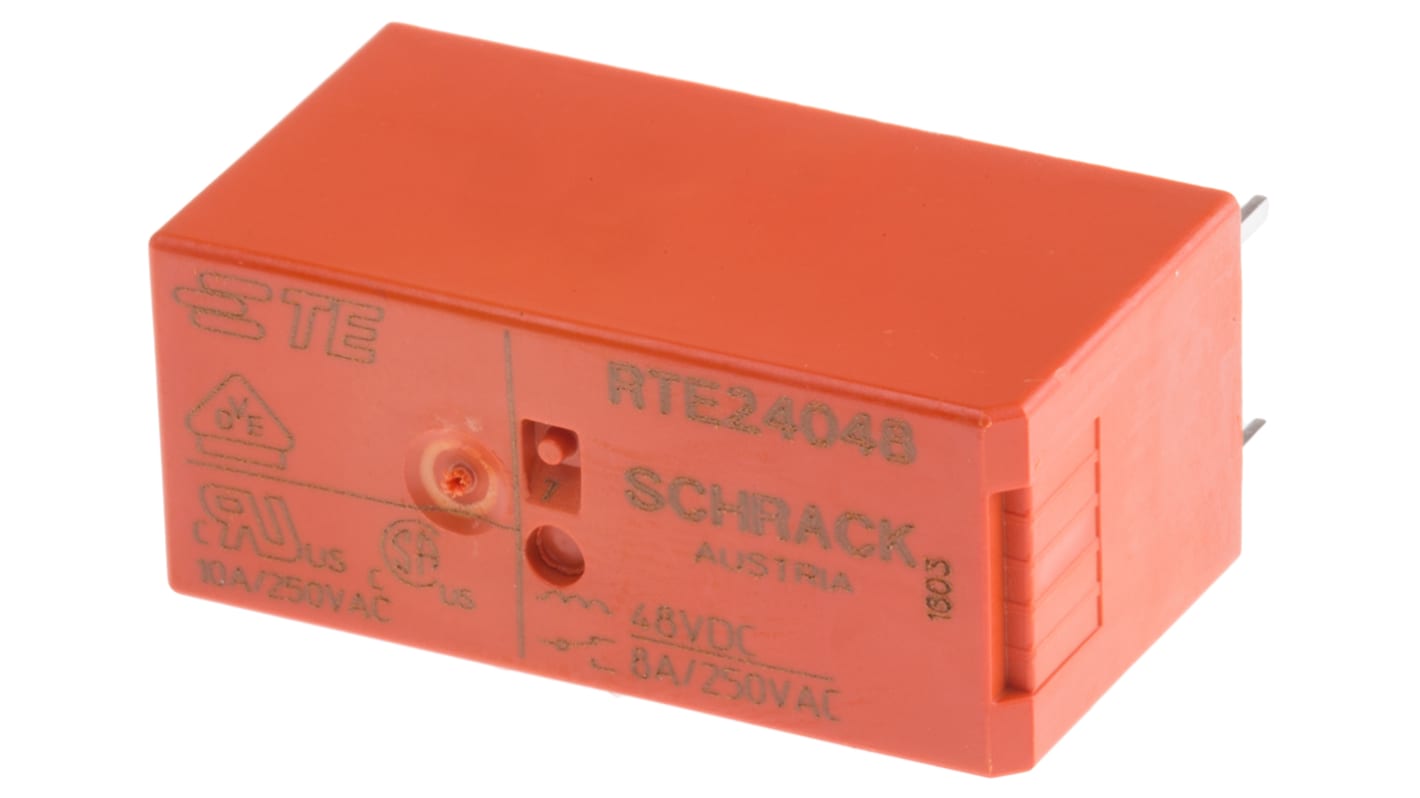

TE Connectivity PCB Mount Power Relay, 48V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 161-5107
- Mfr. Part No.:
- RTE24048
- Brand:
- TE Connectivity
Save 26% when you buy 5000 units
Subtotal (1 box of 500 units)*
£1,544.50
(exc. VAT)
£1,853.50
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 1,500 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 - 500 | £3.089 | £1,544.50 |
| 1000 - 2000 | £2.78 | £1,390.00 |
| 2500 - 4500 | £2.502 | £1,251.00 |
| 5000 + | £2.27 | £1,135.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.56
(exc. VAT)
£4.27
(inc. VAT)
- RS Stock No.:
- 161-5107
- Mfr. Part No.:
- RTE24048
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 48V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 2 | |
| Latching | No | |
| Series | RT2 | |
| Terminal Type | Through Hole | |
| Length | 29mm | |
| Coil Resistance | 5520Ω | |
| Depth | 12.7mm | |
| Contact Material | Silver Nickel Alloy | |
| Maximum Operating Temperature | +85°C | |
| Height | 15.7mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power AC | 2 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 48V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Series RT2 | ||
Terminal Type Through Hole | ||
Length 29mm | ||
Coil Resistance 5520Ω | ||
Depth 12.7mm | ||
Contact Material Silver Nickel Alloy | ||
Maximum Operating Temperature +85°C | ||
Height 15.7mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power AC 2 kVA | ||
Application Power | ||
