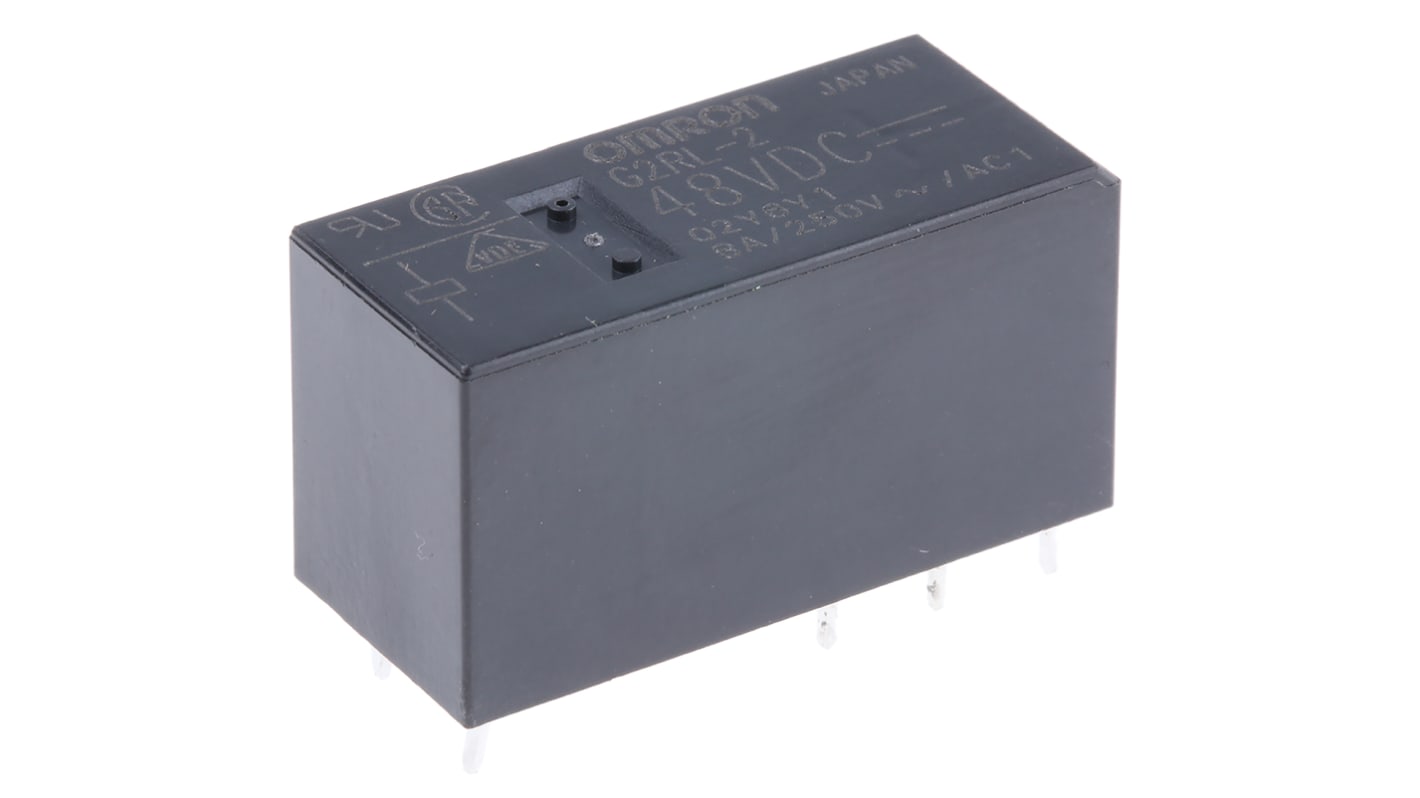

Omron PCB Power Relay, 48V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 365-0614
- Distrelec Article No.:
- 301-71-172
- Mfr. Part No.:
- G2RL-2 DC48
- Brand:
- Omron
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£4.55
(exc. VAT)
£5.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
- Plus 39 unit(s) shipping from 27 July 2026
- Plus 77 unit(s) shipping from 01 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £4.55 |
| 25 - 99 | £4.25 |
| 100 - 249 | £3.95 |
| 250 - 499 | £3.41 |
| 500 + | £3.22 |
*price indicative
- RS Stock No.:
- 365-0614
- Distrelec Article No.:
- 301-71-172
- Mfr. Part No.:
- G2RL-2 DC48
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 48V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | G2RL | |
| Terminal Type | Solder | |
| Switching Current | 8A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 5.4kΩ | |
| Maximum Operating Temperature | 85°C | |
| Width | 12.7mm | |
| Standards/Approvals | CE, UL, RoHS, EN, IEC | |
| Coil Power | 2.5kW | |
| Height | 15.7mm | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 48V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series G2RL | ||
Terminal Type Solder | ||
Switching Current 8A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 5.4kΩ | ||
Maximum Operating Temperature 85°C | ||
Width 12.7mm | ||
Standards/Approvals CE, UL, RoHS, EN, IEC | ||
Coil Power 2.5kW | ||
Height 15.7mm | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
G2RL Series
Low profile 15.7mm height (max.)
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
Approvals
UL recognised; CSA certified; VDE
