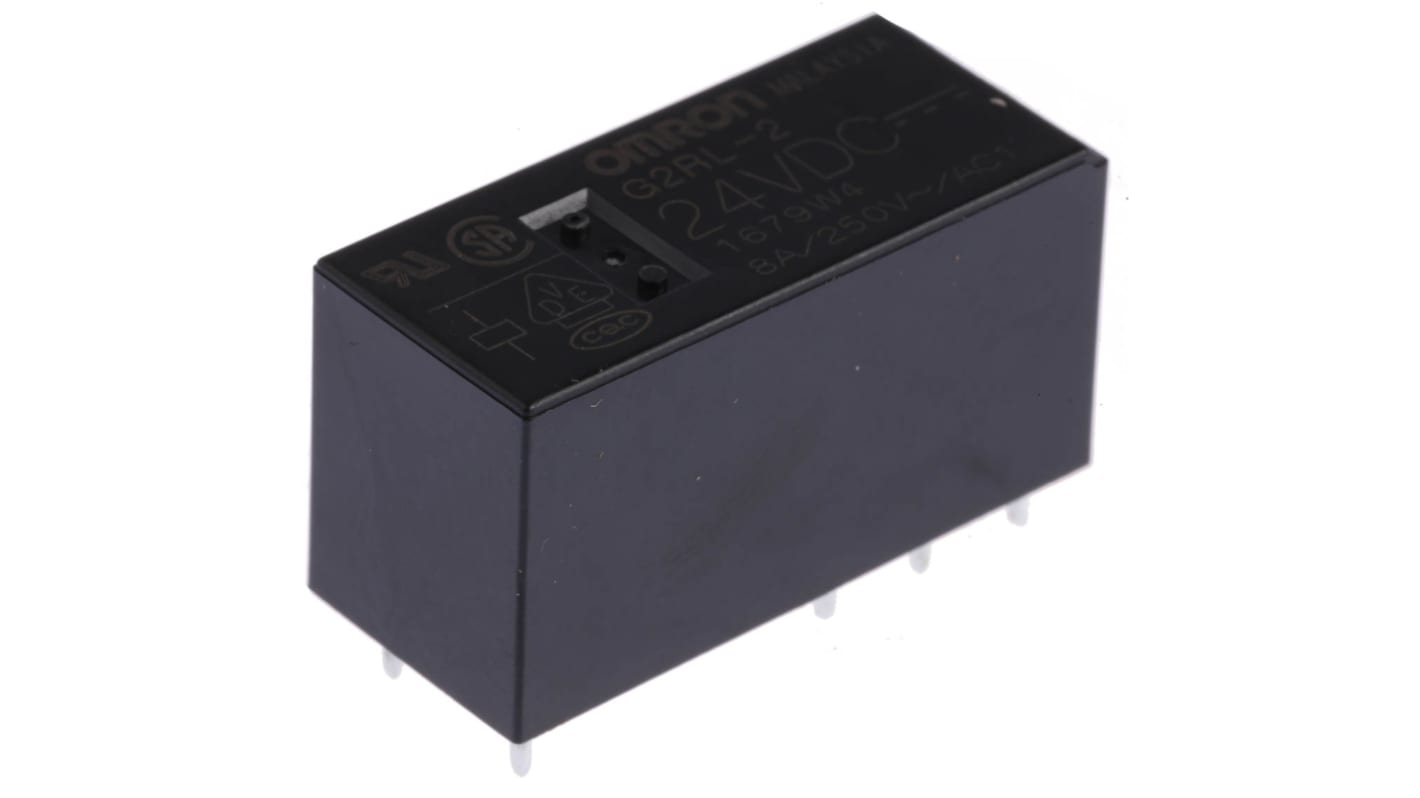

Omron PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 365-0591
- Mfr. Part No.:
- G2RL-2 DC24
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£3.92
(exc. VAT)
£4.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 28 unit(s) ready to ship from another location
- Plus 1,063 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £3.92 |
| 25 - 99 | £3.25 |
| 100 - 249 | £2.93 |
| 250 - 499 | £2.78 |
| 500 + | £2.44 |
*price indicative
- RS Stock No.:
- 365-0591
- Mfr. Part No.:
- G2RL-2 DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 2 | |
| Latching | No | |
| Series | G2RL | |
| Terminal Type | Through Hole | |
| Length | 29mm | |
| Coil Resistance | 1440Ω | |
| Coil Power | 400mW | |
| Contact Material | Silver | |
| Depth | 12.7mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 15.7mm | |
| Isolation Coil To Contact | 5kV ac | |
| Life | 20000000 (Electrical) cycles | |
| Maximum Switching Power AC | 2 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 2 | ||
Latching No | ||
Series G2RL | ||
Terminal Type Through Hole | ||
Length 29mm | ||
Coil Resistance 1440Ω | ||
Coil Power 400mW | ||
Contact Material Silver | ||
Depth 12.7mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Height 15.7mm | ||
Isolation Coil To Contact 5kV ac | ||
Life 20000000 (Electrical) cycles | ||
Maximum Switching Power AC 2 kVA | ||
Application Power | ||
- COO (Country of Origin):
- MY
Omron Power Relay
The Omron G2RL series 2-pole PCB mount non-latching relay has contact configuration of SPDT. It is actuated with 24VDC coil voltage and 8A switching current. This relay is ideal for incorporation in miniature equipment.
Features and Benefits
Tracking resistance is CTI>250
Coil power is 400mW
Coil resistance is 1.44Kohm
Isolation voltage for coil to contact is 5kVAC
Creepage/clearance is 10mm
Operating temperature ranging between 85°C and 105°C
Offers high insulation with insulation distance above 8 mm and impulse withstand voltage of 10kV between coil and contacts
Through hole terminal type
Coil power is 400mW
Coil resistance is 1.44Kohm
Isolation voltage for coil to contact is 5kVAC
Creepage/clearance is 10mm
Operating temperature ranging between 85°C and 105°C
Offers high insulation with insulation distance above 8 mm and impulse withstand voltage of 10kV between coil and contacts
Through hole terminal type
Certifications
UL recognised
CSA certified
VDE
CSA certified
VDE
