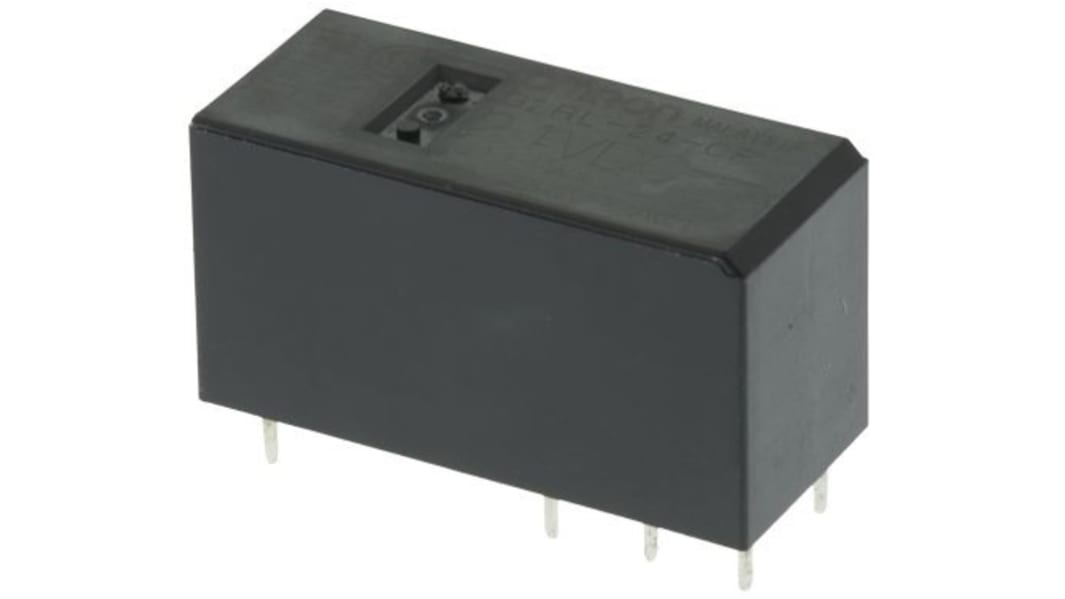

Omron PCB Non-Latching Relay, 5V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 233-4143
- Mfr. Part No.:
- G2RL-2 DC5
- Brand:
- Omron
Bulk discount available
Subtotal (1 tube of 100 units)*
£242.40
(exc. VAT)
£290.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 400 | £2.424 | £242.40 |
| 500 + | £2.356 | £235.60 |
*price indicative
- RS Stock No.:
- 233-4143
- Mfr. Part No.:
- G2RL-2 DC5
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 5V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | G2RL | |
| Terminal Type | Through Hole | |
| Switching Current | 8A | |
| Switching AC Voltage | 440V ac | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 300V dc | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 62.5Ω | |
| Standards/Approvals | IEC/EN 60079-15, RoHS, VDE | |
| Width | 12.7mm | |
| Height | 15.7mm | |
| Length | 29mm | |
| Coil Power | 400mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 5V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series G2RL | ||
Terminal Type Through Hole | ||
Switching Current 8A | ||
Switching AC Voltage 440V ac | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 300V dc | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 62.5Ω | ||
Standards/Approvals IEC/EN 60079-15, RoHS, VDE | ||
Width 12.7mm | ||
Height 15.7mm | ||
Length 29mm | ||
Coil Power 400mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron G2RL series low profile power relay with 15.7 mm height, ideal for incorporation in miniature equipment's. It has Ag-alloy contact material.
Flux protection
Ambient operating temperature from -40°C to 85°C
100 mO maximum contact resistance
