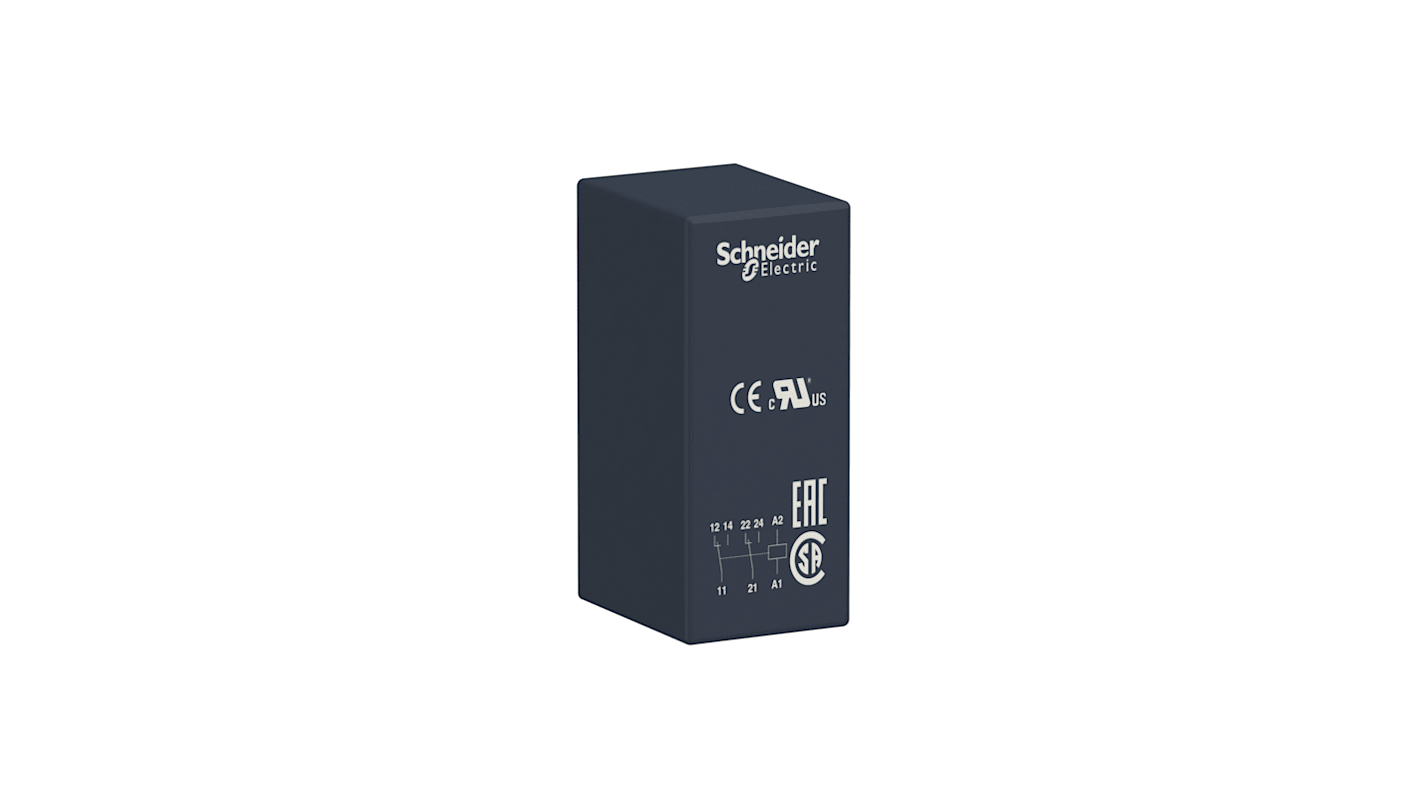

Schneider Electric PCB Mount Power Relay, 48V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 742-3778
- Mfr. Part No.:
- RSB2A080ED
- Brand:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
£7.50
(exc. VAT)
£9.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 66 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £7.50 |
5 - 9 | £7.28 |
10 + | £6.95 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 742-3778
- Mfr. Part No.:
- RSB2A080ED
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 48V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Series | Harmony Relay RSB | |
Terminal Type | Through Hole | |
Better World Product | Yes | |
Contact Material | Silver Alloy | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Better World Verification | Green Premium | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 48V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Series Harmony Relay RSB | ||
Terminal Type Through Hole | ||
Better World Product Yes | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Better World Verification Green Premium | ||
Schneider Electric Zelio RSB Series Relays
A range of Schneider Electric interface relays from the Zelio series. These plug in Relays are suitable for standard applications.
Simple installation and operation
Contacts material silver alloy (Ag/Ni)
DC or AC coil
Operating temperature -40 → 70 °C
Ingress protection IP40
Contacts material silver alloy (Ag/Ni)
DC or AC coil
Operating temperature -40 → 70 °C
Ingress protection IP40
Standards
IEC/EN 61810-1, UL 508, CSA C22-2 n° 14
Approvals
UL, CSA
Schneider Electric RSB2A080ED
This Harmony RSB interfacing plug-in relay has a control coil voltage of 48V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
