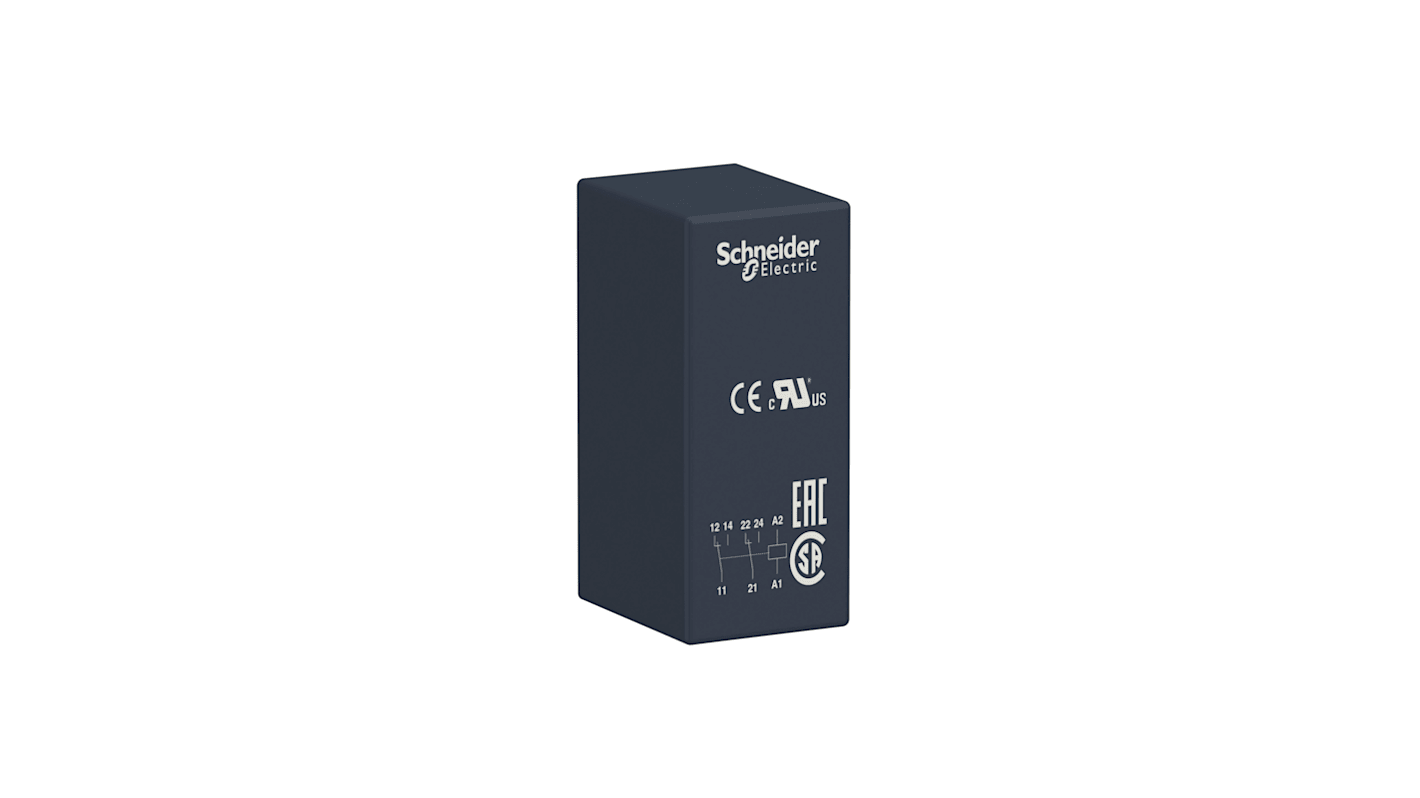

Schneider Electric PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 742-3766
- Distrelec Article No.:
- 302-15-477
- Mfr. Part No.:
- RSB2A080BD
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£5.08
(exc. VAT)
£6.10
(inc. VAT)
FREE delivery for orders over £50.00
- 601 unit(s) ready to ship
- Plus 323 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 + | £5.08 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 742-3766
- Distrelec Article No.:
- 302-15-477
- Mfr. Part No.:
- RSB2A080BD
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 24V dc | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Series | Harmony Relay RSB | |
Terminal Type | Through Hole | |
Maximum Switching Voltage DC | 300V | |
Length | 29mm | |
Coil Resistance | 1.44 kΩ | |
Contact Material | Silver Alloy | |
Standards Met | RoHS Compliant | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +70°C | |
Depth | 12.5mm | |
Better World Product | Yes | |
Height | 15.7mm | |
Better World Verification | Green Premium | |
Dimensions | 29 x 12.5 x 15.7mm | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Series Harmony Relay RSB | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage DC 300V | ||
Length 29mm | ||
Coil Resistance 1.44 kΩ | ||
Contact Material Silver Alloy | ||
Standards Met RoHS Compliant | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Depth 12.5mm | ||
Better World Product Yes | ||
Height 15.7mm | ||
Better World Verification Green Premium | ||
Dimensions 29 x 12.5 x 15.7mm | ||
