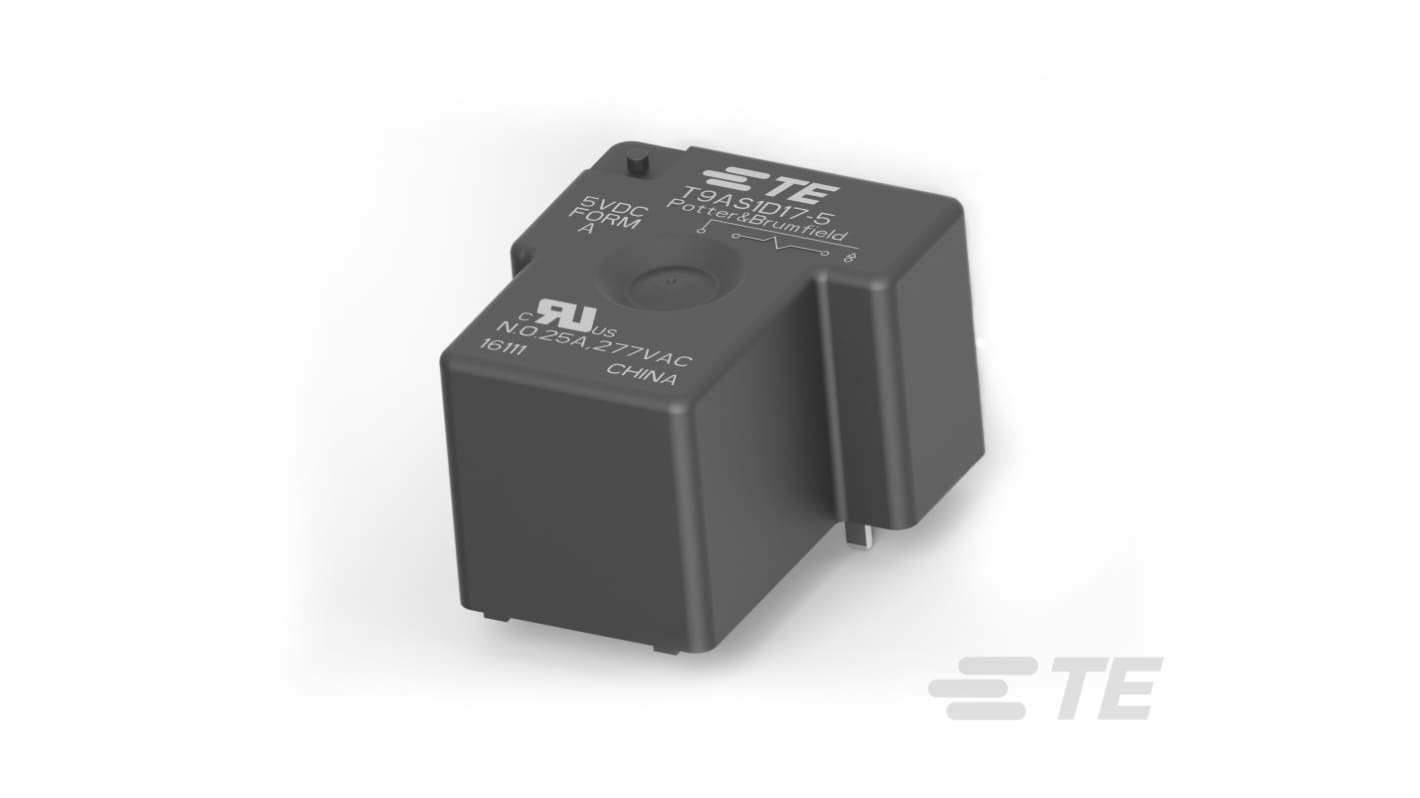

TE Connectivity PCB Power Relay, 5V dc Coil, 30A Switching Current, 1 NO
- RS Stock No.:
- 480-313
- Distrelec Article No.:
- 304-59-894
- Mfr. Part No.:
- 1-2071229-4
- Brand:
- TE Connectivity
Subtotal (1 tray of 50 units)*
£196.15
(exc. VAT)
£235.38
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £196.15 | £3.923 |
*price indicative
- RS Stock No.:
- 480-313
- Distrelec Article No.:
- 304-59-894
- Mfr. Part No.:
- 1-2071229-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | 1 NO | |
| Mount Type | PCB | |
| Series | Potter & Brumfield T9A | |
| Terminal Type | Solder | |
| Switching Current | 30A | |
| Switching DC Voltage | 30V dc | |
| Switching AC Voltage | 277V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 25Ω | |
| Standards/Approvals | UL | |
| Coil Power | 1W | |
| Length | 32.5mm | |
| Width | 27.4mm | |
| Height | 20.4mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Contact Resistance | 75mΩ | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration 1 NO | ||
Mount Type PCB | ||
Series Potter & Brumfield T9A | ||
Terminal Type Solder | ||
Switching Current 30A | ||
Switching DC Voltage 30V dc | ||
Switching AC Voltage 277V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 25Ω | ||
Standards/Approvals UL | ||
Coil Power 1W | ||
Length 32.5mm | ||
Width 27.4mm | ||
Height 20.4mm | ||
Contact Material Silver Alloy Gold Plated | ||
Contact Resistance 75mΩ | ||
- COO (Country of Origin):
- CN
The TE Connectivity general purpose power relay is designed for versatility and robust performance in demanding applications. Offering a reliable 1 Form A SPST-NO design, this relay operates with a 30 A contact rating, making it suitable for high-current switching tasks. With a coil voltage of 5 VDC and a contact voltage rating of 277 VAC, this product from the Potter & Brumfield T9A series promises seamless functionality across a variety of electronic devices. It combines features like UL coil insulation class F, ensuring safety and durability, and is engineered for easy integration into existing systems. Whether utilized in industrial, automotive, or consumer applications, this relay stands out for its reliability, efficiency, and compliance with international standards, making it a vital component for engineers seeking dependable performance.
Designed for high current switching suitability
Provides a robust performance across various applications
Engineered with UL coil insulation for enhanced safety
Features a mechanical attachment style suitable for board mounting
Constructed with silver cadmium oxide for improved contact reliability
Utilizes a compact and efficient design for space-saving integration
Offers a diverse range of compatible products within the series
