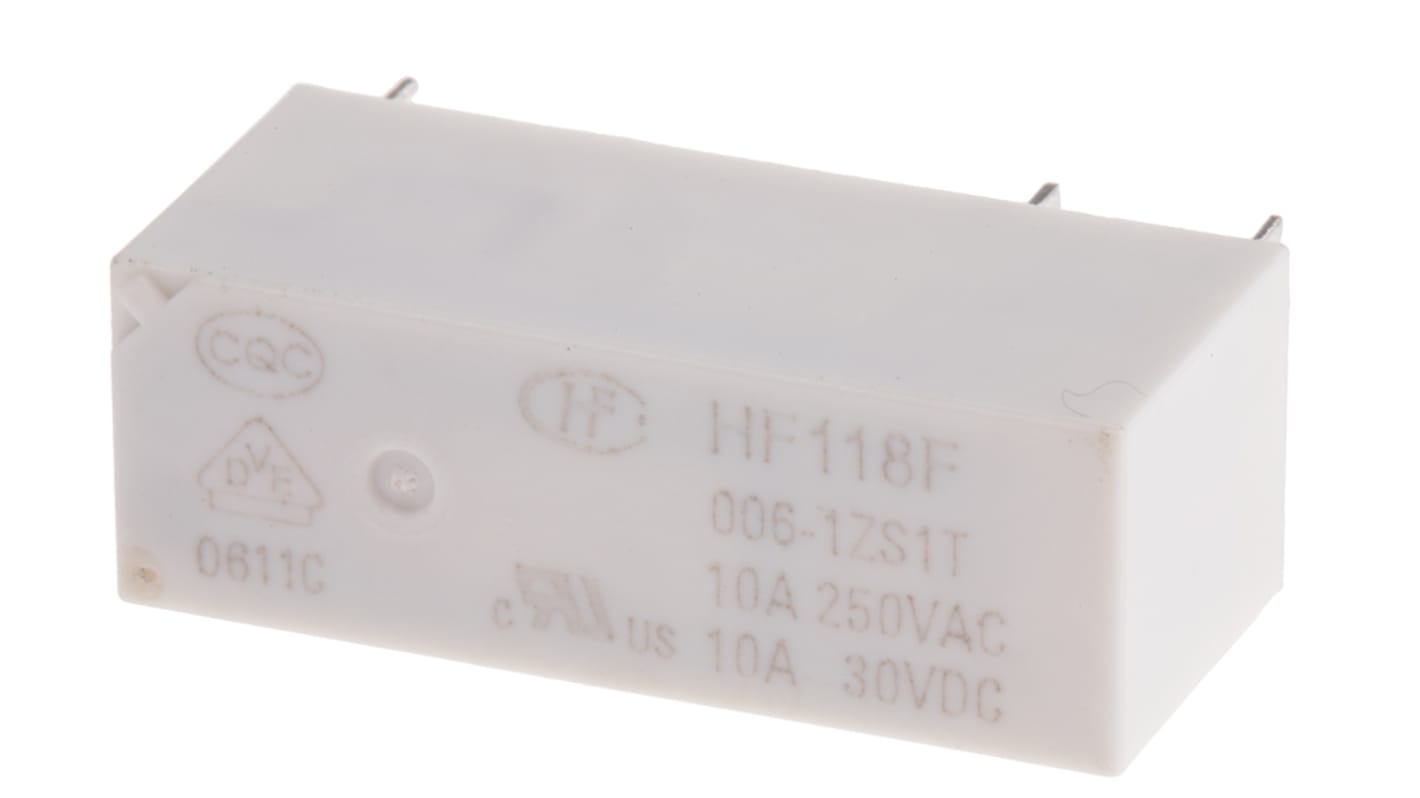

RS PRO PCB Mount Power Relay, 6V dc Coil, 10A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£3.23

(exc. VAT)

£3.88

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 165 unit(s) shipping from 03 November 2025
  • Plus 64 unit(s) shipping from 03 November 2025
  • Plus 686 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£3.23
25 - 49£3.07
50 - 99£2.90
100 - 249£2.77
250 +£2.59

*price indicative

Packaging Options:
RS Stock No.:
476-684
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Coil Voltage

6V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

1

Latching

No

Terminal Type

Through Hole

Maximum Switching Voltage AC

440V ac

Maximum Switching Voltage DC

125V dc

Length

28.5mm

Coil Resistance

164Ω

Coil Power

290mW

Contact Material

Silver Alloy

Life

100000 (Electrical) cycles, 10000000 (Mechanical) cycles

Standards Met

CQC CQC04001011425, RoHS Compliant, UL E133481, VDE File No.: 40010480

Minimum Operating Temperature

-40°C

Height

12.5mm

Isolation Coil To Contact

5kV ac

Maximum Operating Temperature

+85°C

Depth

10.1mm

Maximum Switching Power DC

300 W

Maximum Switching Power AC

2.5 kVA

Application

Power

COO (Country of Origin):
CN

Extra Low Profile Relays


Low profile: 12.5mm max height
10A switching capacity
3.2mm pinning
5kV dielectric strength (between coil and contacts)
Surge voltage up to 10kV (between coil and contacts)
Wash tight
Creepage distance >8mm
Conforms to VDE 0435/ 0631/ 0700

Standards

IEC 60335-1

Approvals

UL (File no. E133481), VDE (File no. 40010480), CQC (File no. CQC04001011425)
