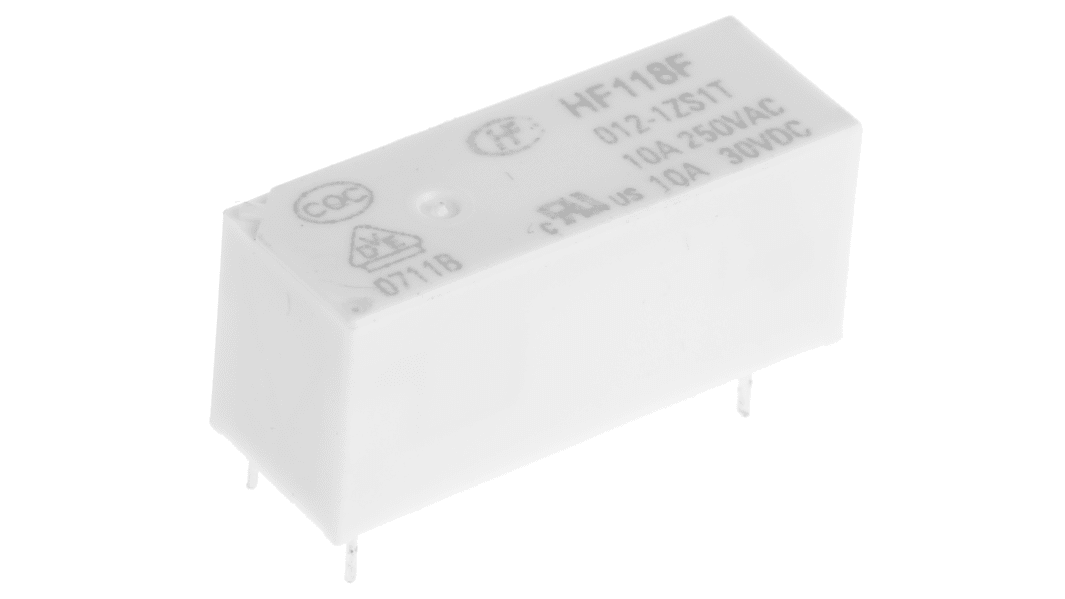

RS PRO PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 476-589
- Distrelec Article No.:
- 304-04-290
- Brand:
- RS PRO
Subtotal (1 unit)*
£5.65
(exc. VAT)
£6.78
(inc. VAT)
FREE delivery for orders over £50.00
- 115 unit(s) ready to ship
- Plus 27 unit(s) ready to ship from another location
- Plus 518 unit(s) shipping from 31 October 2025
Units | Per unit |
|---|---|
| 1 - 24 | £5.65 |
| 25 - 49 | £5.14 |
| 50 - 99 | £4.56 |
| 100 - 249 | £4.10 |
| 250 + | £3.62 |
*price indicative
- RS Stock No.:
- 476-589
- Distrelec Article No.:
- 304-04-290
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 440V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 28.5mm | |
| Coil Resistance | 620Ω | |
| Coil Power | 290mW | |
| Standards Met | CQC CQC04001011425, RoHS Compliant, UL E133481, VDE File No.: 40010480 | |
| Contact Material | Silver Alloy | |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Height | 12.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 5kV ac | |
| Depth | 10.1mm | |
| Maximum Switching Power DC | 300 W | |
| Maximum Switching Power AC | 2.5 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 440V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 28.5mm | ||
Coil Resistance 620Ω | ||
Coil Power 290mW | ||
Standards Met CQC CQC04001011425, RoHS Compliant, UL E133481, VDE File No.: 40010480 | ||
Contact Material Silver Alloy | ||
Life 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Height 12.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 5kV ac | ||
Depth 10.1mm | ||
Maximum Switching Power DC 300 W | ||
Maximum Switching Power AC 2.5 kVA | ||
Application Power | ||
- COO (Country of Origin):
- CN
Extra Low Profile Relays
10A switching capacity
3.2mm pinning
5kV dielectric strength (between coil and contacts)
Surge voltage up to 10kV (between coil and contacts)
Wash tight
Creepage distance >8mm
Conforms to VDE 0435/ 0631/ 0700
Standards
Approvals
