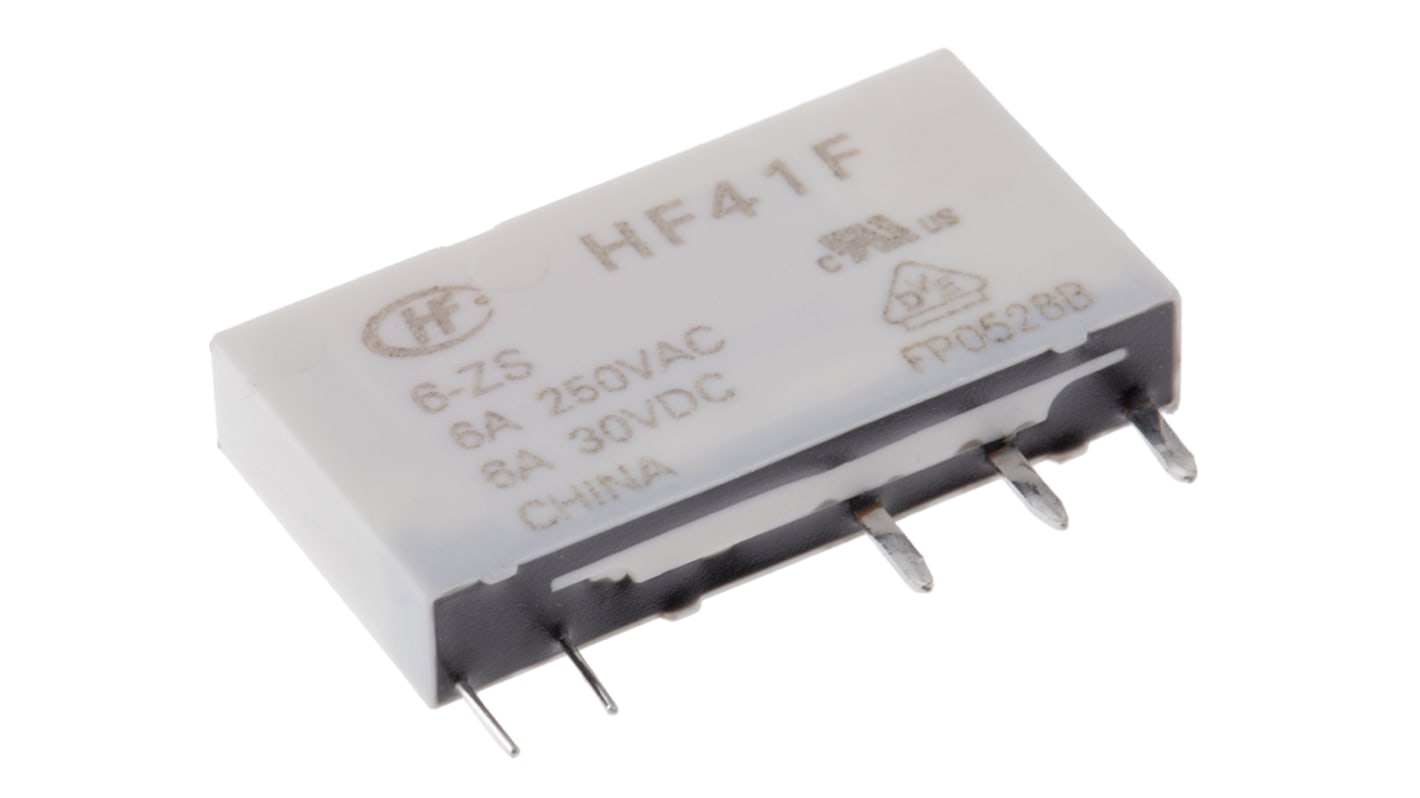

RS PRO PCB Power Relay, 6V dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 476-624
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 476-624
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 6V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Terminal Type | Through Hole | |
| Switching Current | 6A | |
| Length | 28mm | |
| Height | 15mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 6V dc | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Terminal Type Through Hole | ||
Switching Current 6A | ||
Length 28mm | ||
Height 15mm | ||
- COO (Country of Origin):
- CN
Slim Relays
Slim size (width 5mm)
High sensitivity, coil power 170mW
4kV dielectric strength (between coil and contacts)
Surge voltage up to 6kV (between coil and contacts)
Wash tight
Clearance/creepage distance 8mm
Approvals
UL (File no. E133481), VDE (File no. 40020043)
