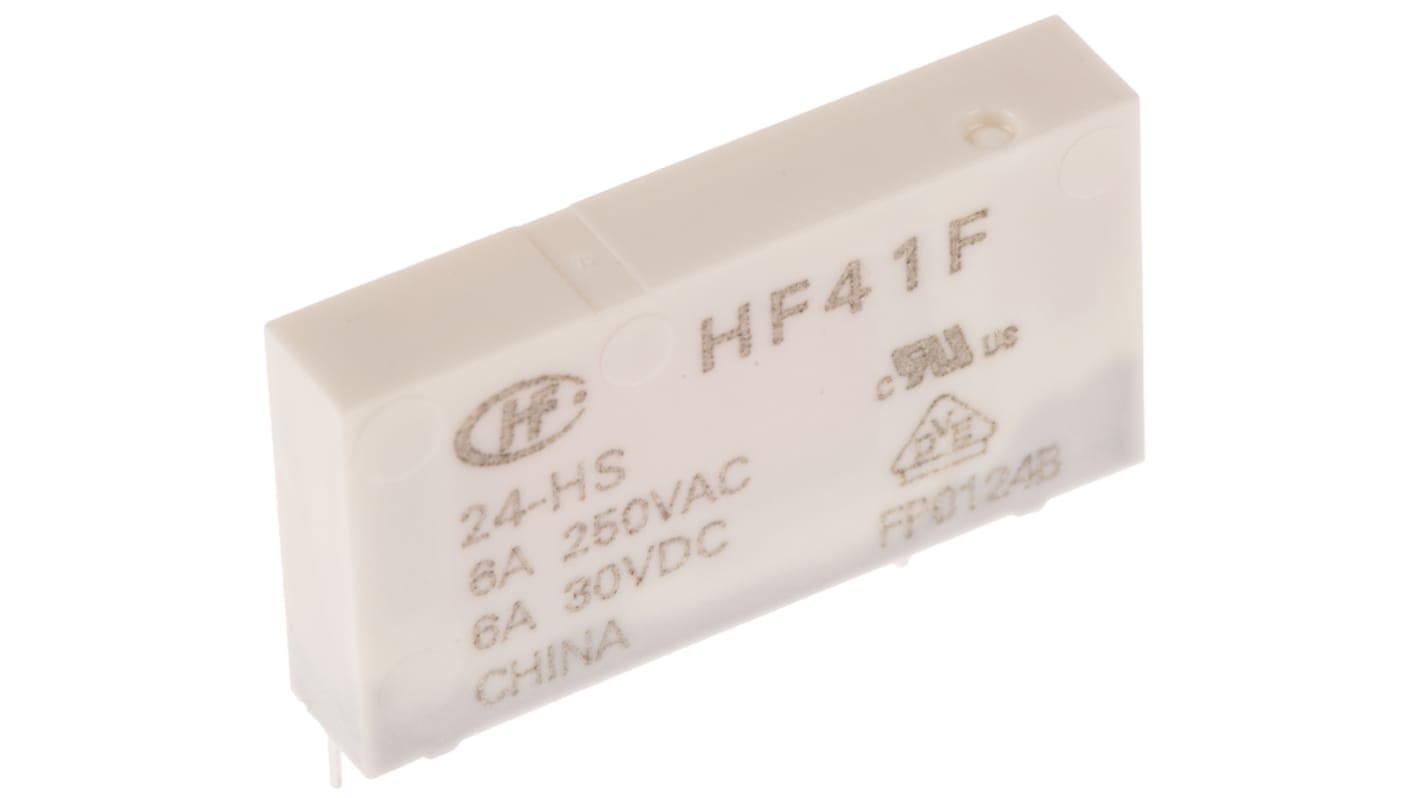

RS PRO PCB Mount Power Relay, 24V dc Coil, 6A Switching Current, SPST
- RS Stock No.:
- 800-4552
- Distrelec Article No.:
- 304-03-536
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£4.12
(exc. VAT)
£4.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 302 unit(s) ready to ship
- Plus 114 unit(s) ready to ship from another location
- Plus 1,294 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £4.12 |
| 20 - 49 | £3.98 |
| 50 - 99 | £3.62 |
| 100 - 199 | £2.89 |
| 200 + | £2.46 |
*price indicative
- RS Stock No.:
- 800-4552
- Distrelec Article No.:
- 304-03-536
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 28mm | |
| Coil Resistance | 3390Ω | |
| Coil Power | 170mW | |
| Depth | 5mm | |
| Contact Material | Silver Alloy | |
| Height | 15mm | |
| Standards Met | RoHS Compliant, UL E133481, VDE 40020043 | |
| Life | 10000000 (Mechanical) Operations, 60000 (Electrical) Operations | |
| Isolation Coil To Contact | 4kV ac | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power DC | 180 W | |
| Maximum Switching Power AC | 1.5 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 28mm | ||
Coil Resistance 3390Ω | ||
Coil Power 170mW | ||
Depth 5mm | ||
Contact Material Silver Alloy | ||
Height 15mm | ||
Standards Met RoHS Compliant, UL E133481, VDE 40020043 | ||
Life 10000000 (Mechanical) Operations, 60000 (Electrical) Operations | ||
Isolation Coil To Contact 4kV ac | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power DC 180 W | ||
Maximum Switching Power AC 1.5 kVA | ||
Application Power | ||
- COO (Country of Origin):
- CN
Slim Relays
Slim size (width 5mm)
High sensitivity, coil power 170mW
4kV dielectric strength (between coil and contacts)
Surge voltage up to 6kV (between coil and contacts)
Wash tight
Clearance/creepage distance 8mm
High sensitivity, coil power 170mW
4kV dielectric strength (between coil and contacts)
Surge voltage up to 6kV (between coil and contacts)
Wash tight
Clearance/creepage distance 8mm
Approvals
UL (File no. E133481), VDE (File no. 40020043)
