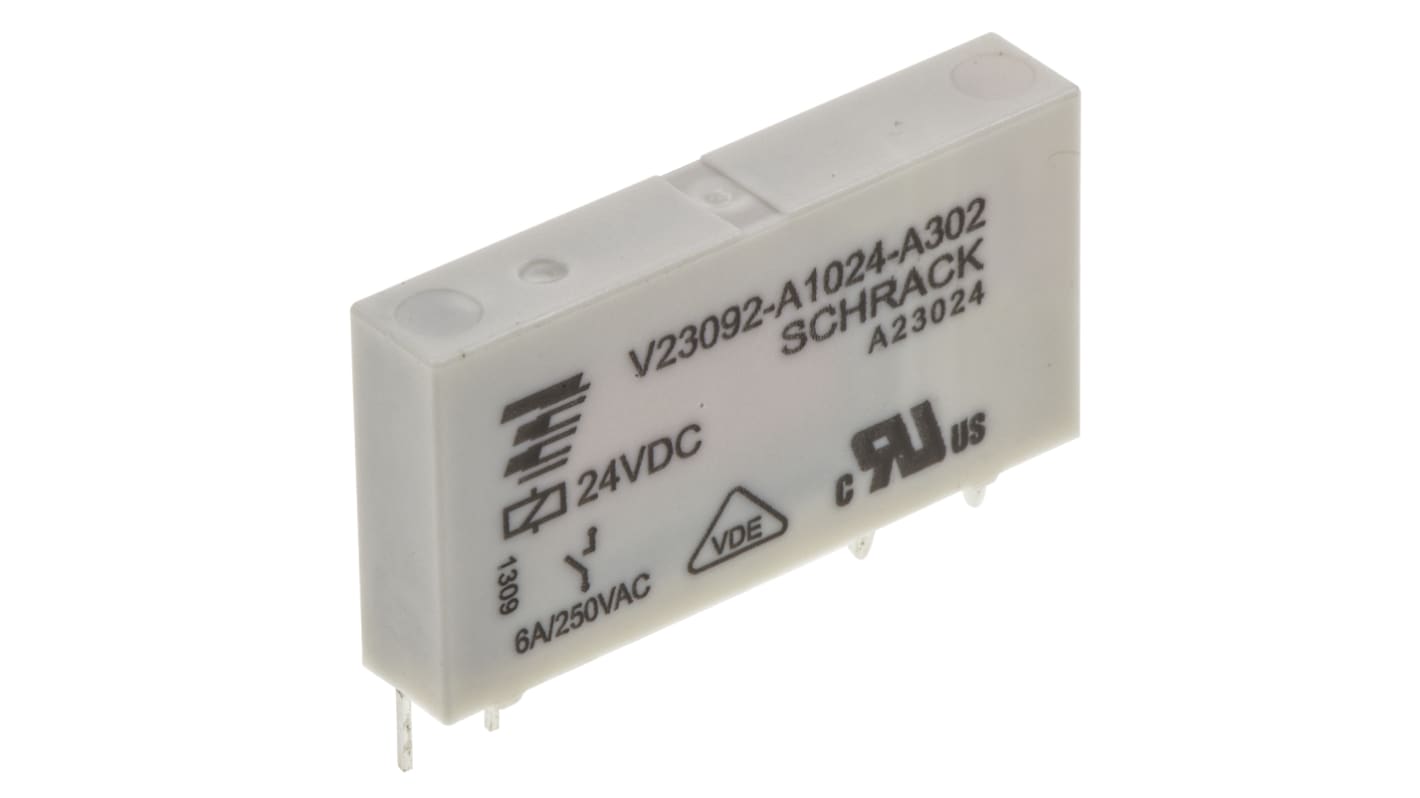

TE Connectivity PCB Power Relay, 24V dc Coil, 6A Switching Current, SPST
- RS Stock No.:
- 256-2443
- Distrelec Article No.:
- 137-21-057
- Mfr. Part No.:
- V23092A1024A302
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£10.95
(exc. VAT)
£13.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 69 unit(s) shipping from 04 May 2026
- Plus 21 unit(s) shipping from 04 May 2026
- Plus 260 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.95 |
*price indicative
- RS Stock No.:
- 256-2443
- Distrelec Article No.:
- 137-21-057
- Mfr. Part No.:
- V23092A1024A302
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | SNR | |
| Terminal Type | PCB Pin | |
| Switching Current | 6A | |
| Switching Power | 1.5kVA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 3.4kΩ | |
| Maximum Operating Temperature | 85°C | |
| Length | 28mm | |
| Width | 5mm | |
| Standards/Approvals | VDE Cert. No. 40010063, UL E214025, UL 508, REACH, IEC 61810-1, IEC 60068-2-20, EU RoHS/ELV, EN60730-1, CHINA RoHS | |
| Coil Power | 170mW | |
| Height | 15mm | |
| Contact Material | Silver Nickel Alloy Gold Plated, Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series SNR | ||
Terminal Type PCB Pin | ||
Switching Current 6A | ||
Switching Power 1.5kVA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 3.4kΩ | ||
Maximum Operating Temperature 85°C | ||
Length 28mm | ||
Width 5mm | ||
Standards/Approvals VDE Cert. No. 40010063, UL E214025, UL 508, REACH, IEC 61810-1, IEC 60068-2-20, EU RoHS/ELV, EN60730-1, CHINA RoHS | ||
Coil Power 170mW | ||
Height 15mm | ||
Contact Material Silver Nickel Alloy Gold Plated, Silver Tin Oxide | ||
1 pole 6A, 1 form C (CO), 1 form A (NO)
Only 5mm wide
Flat pack version available
Sensitive coil 170mW
Reinforced insulation
Strong coil pins for DIN-rail socket
Allows high function- / packaging density
Cadmium-free contacts, AgNi 90/10 for AC-loads
