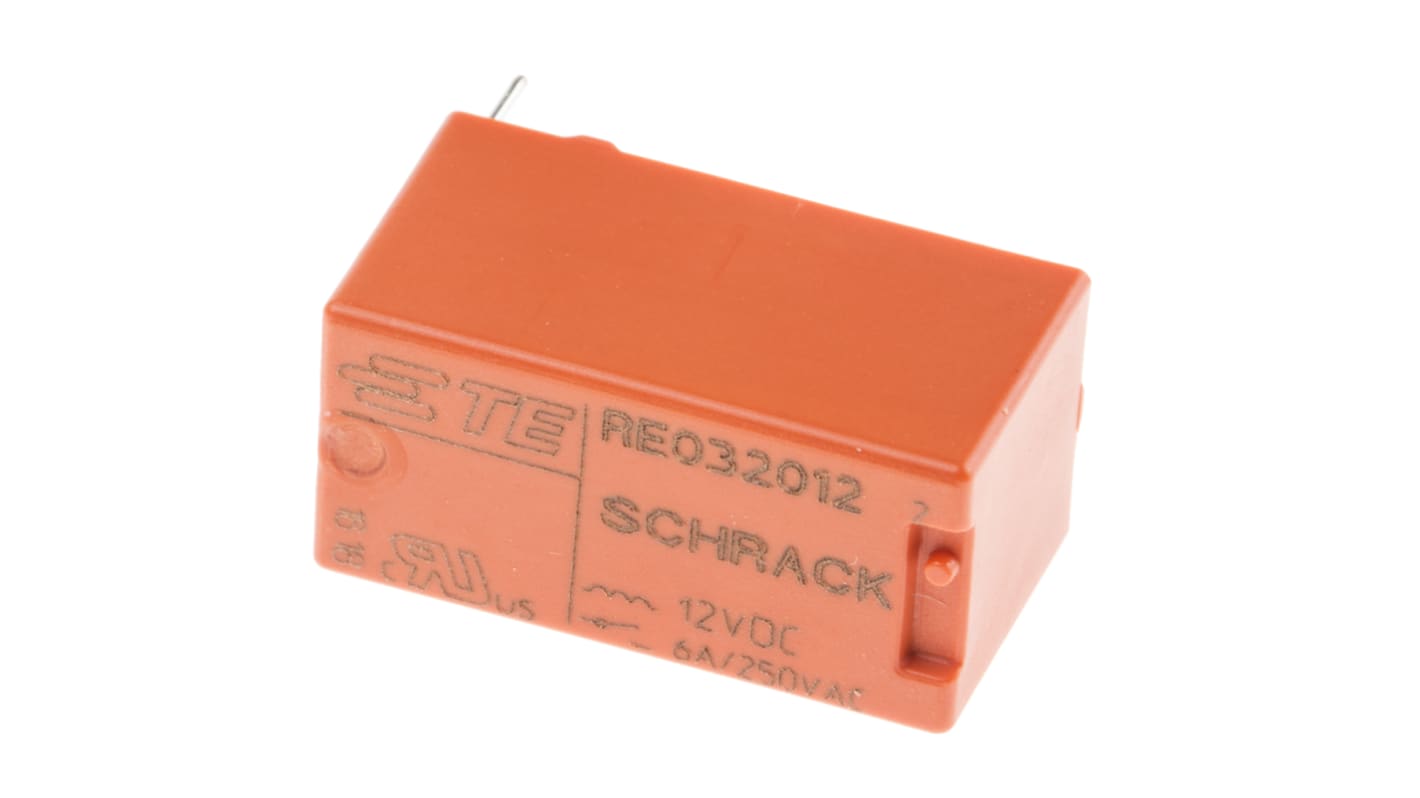

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 6A Switching Current, SPST
- RS Stock No.:
- 756-1319
- Mfr. Part No.:
- RE032012
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Tube of 25)
£4.311
(exc. VAT)
£5.173
(inc. VAT)
- RS Stock No.:
- 756-1319
- Mfr. Part No.:
- RE032012
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Length | 20mm | |
| Coil Resistance | 720Ω | |
| Coil Power | 200mW | |
| Height | 10.6mm | |
| Contact Material | Silver Alloy | |
| Isolation Coil To Contact | 4kVrms | |
| Maximum Operating Temperature | +70°C | |
| Series | RE | |
| Minimum Operating Temperature | -40°C | |
| Depth | 10mm | |
| Maximum Switching Power AC | 1.5 kVA | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Length 20mm | ||
Coil Resistance 720Ω | ||
Coil Power 200mW | ||
Height 10.6mm | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 4kVrms | ||
Maximum Operating Temperature +70°C | ||
Series RE | ||
Minimum Operating Temperature -40°C | ||
Depth 10mm | ||
Maximum Switching Power AC 1.5 kVA | ||
- COO (Country of Origin):
- CZ
RE Series
Sensitive coil 200mW
RTIII - wash tight
Creepage & clearance 4mm
Flammability class - UL94V-0
PCB area 200mm2
Dimensions 10.6x20x10mm
Applications include PLC's, timers, temperature control, I/O cards, white goods etc
RTIII - wash tight
Creepage & clearance 4mm
Flammability class - UL94V-0
PCB area 200mm2
Dimensions 10.6x20x10mm
Applications include PLC's, timers, temperature control, I/O cards, white goods etc
Approvals
UL, VDE
