Microchip 2 16 bit- Analogue to Digital Converter (ADC) 3.75 sps, 24-Pin SSOP
- RS Stock No.:
- 598-753
- Mfr. Part No.:
- MCP3905EV
- Brand:
- Microchip
Bulk discount available
Subtotal (1 unit)*
£163.25
(exc. VAT)
£195.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £163.25 |
| 5 + | £159.98 |
*price indicative
- RS Stock No.:
- 598-753
- Mfr. Part No.:
- MCP3905EV
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Analogue to Digital Converter (ADC) | |
| Architecture | Delta Sigma | |
| Number of ADCs | 2 | |
| Resolution | 16 bit | |
| Sampling Rate | 3.75sps | |
| Input Type | Single Ended | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Pin Count | 24 | |
| Interface Type | SPI | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 2mm | |
| Maximum Supply Voltage | 5.5V | |
| Standards/Approvals | RoHS | |
| Series | MCP3905 | |
| Minimum Supply Voltage | 4.5V | |
| Length | 8.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Analogue to Digital Converter (ADC) | ||
Architecture Delta Sigma | ||
Number of ADCs 2 | ||
Resolution 16 bit | ||
Sampling Rate 3.75sps | ||
Input Type Single Ended | ||
Mount Type Surface | ||
Package Type SSOP | ||
Pin Count 24 | ||
Interface Type SPI | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 2mm | ||
Maximum Supply Voltage 5.5V | ||
Standards/Approvals RoHS | ||
Series MCP3905 | ||
Minimum Supply Voltage 4.5V | ||
Length 8.5mm | ||
Automotive Standard No | ||

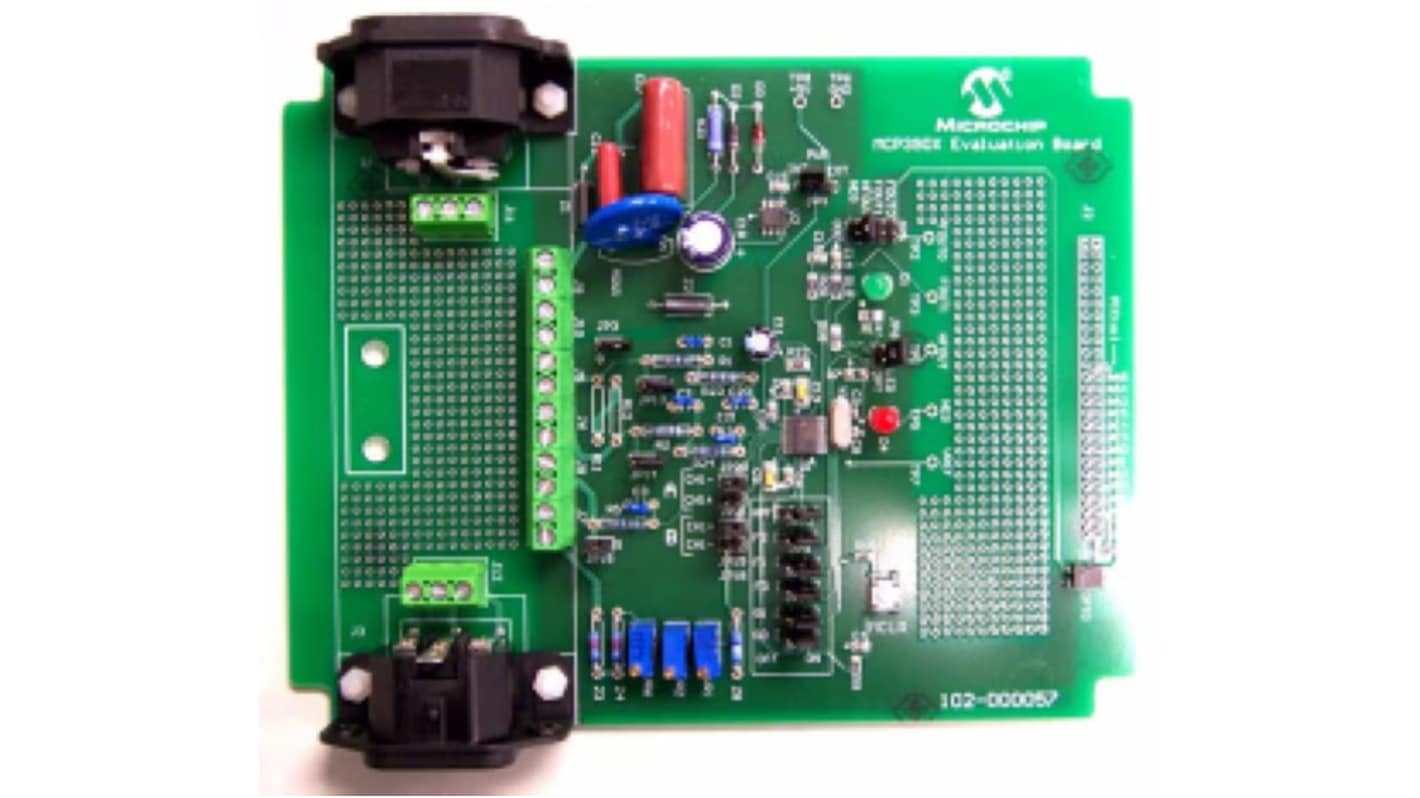

The Microchip Evaluation board designed for power monitoring applications, providing exceptional metering capabilities in a robust and compact package. This product features integrated functionality, making it ideal for developers seeking to evaluate the performance of the MCP3905. With enhancements in measurement accuracy and efficiency, the evaluation board serves as a reliable platform for testing and prototyping. Its user-friendly design facilitates seamless integration into existing systems, enabling the swift development of energy monitoring designs. Additionally, the board’s versatility caters to a range of applications, from low-power energy meters to more complex systems requiring sophisticated monitoring solutions.
Offers extensive connectivity options for easy integration
Supports advanced metering functionalities for precise energy measurements
Enhances system design efficiency and accelerates the product development cycle
Compact layout optimises space utilisation in evaluation setups
Facilitates straightforward prototyping and testing for various applications
