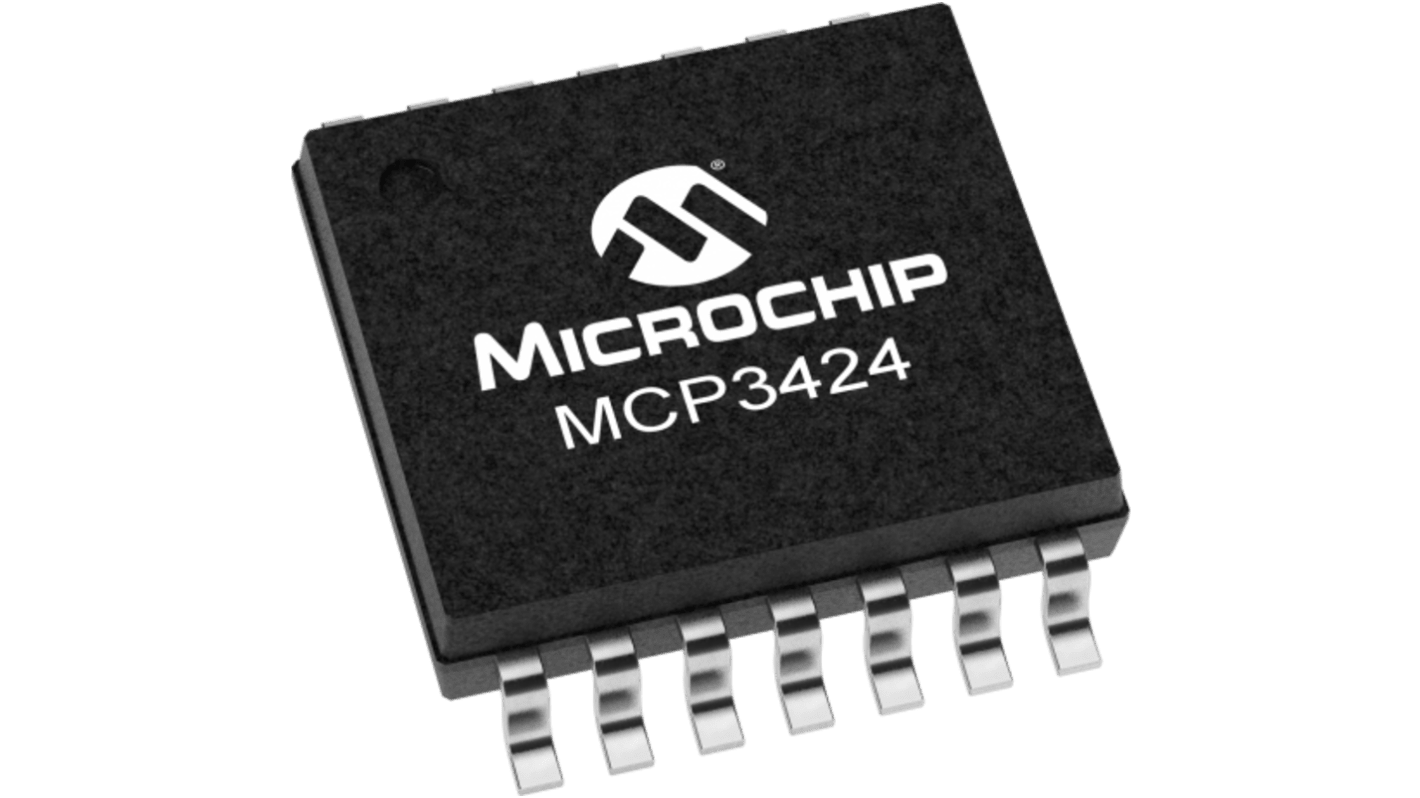

Microchip 4 18 bit- Analogue to Digital Converter (ADC) 3.75 sps, 14-Pin TSSOP
- RS Stock No.:
- 598-578
- Mfr. Part No.:
- MCP3424T-E/ST
- Brand:
- Microchip
Subtotal (1 reel of 2500 units)*
£9,725.00
(exc. VAT)
£11,675.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £3.89 | £9,725.00 |
*price indicative
- RS Stock No.:
- 598-578
- Mfr. Part No.:
- MCP3424T-E/ST
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Architecture | Delta Sigma | |
| Product Type | Analogue to Digital Converter (ADC) | |
| Number of ADCs | 4 | |
| Resolution | 18 bit | |
| Sampling Rate | 3.75sps | |
| Input Type | Single Ended | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 5.5V | |
| Standards/Approvals | RoHS | |
| Minimum Supply Voltage | 2.7V | |
| Height | 1.1mm | |
| Series | MCP342 | |
| Length | 3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Architecture Delta Sigma | ||
Product Type Analogue to Digital Converter (ADC) | ||
Number of ADCs 4 | ||
Resolution 18 bit | ||
Sampling Rate 3.75sps | ||
Input Type Single Ended | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 5.5V | ||
Standards/Approvals RoHS | ||
Minimum Supply Voltage 2.7V | ||
Height 1.1mm | ||
Series MCP342 | ||
Length 3mm | ||
Automotive Standard No | ||
The Microchip High performance ADC is engineered to meet the demands of precision measurement applications. The product is designed to offer exceptional resolution, making it ideal for devices requiring accurate data acquisition. With built-in features that optimise power consumption and reduce complexity, it serves as a reliable solution for industry professionals and hobbyists alike. The integration of internal amplifiers not only enhances input signal management but also minimises external component count, streamlining your circuit design.
Offers a low power consumption design making it an eco friendly choice
Integrates internal signal conditioning to simplify circuit layouts
Provides a high degree of accuracy suitable for demanding applications
Supports multiple input configurations for increased flexibility
Features a robust design that adapts effectively in various environments
Allows seamless interfacing with microcontrollers for easy integration
Showcases a compact design perfect for space constrained projects
