TE Connectivity, AHV 20 A 760V 50Hz, 60 Hz, Chassis Mount EMI Filter, Terminal Block 3 Phase
- RS Stock No.:
- 264-5652
- Mfr. Part No.:
- 2405081-4
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 264-5652
- Mfr. Part No.:
- 2405081-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Current | 20A | |
| Product Type | EMI Filter | |
| Maximum Voltage | 760V | |
| Mount Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Series | AHV | |
| Number of Stages | 1 | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 2mA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, UL 60939-3, CSA 22.2 NO 8 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Current 20A | ||
Product Type EMI Filter | ||
Maximum Voltage 760V | ||
Mount Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Series AHV | ||
Number of Stages 1 | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 2mA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, UL 60939-3, CSA 22.2 NO 8 | ||
- COO (Country of Origin):
- CZ

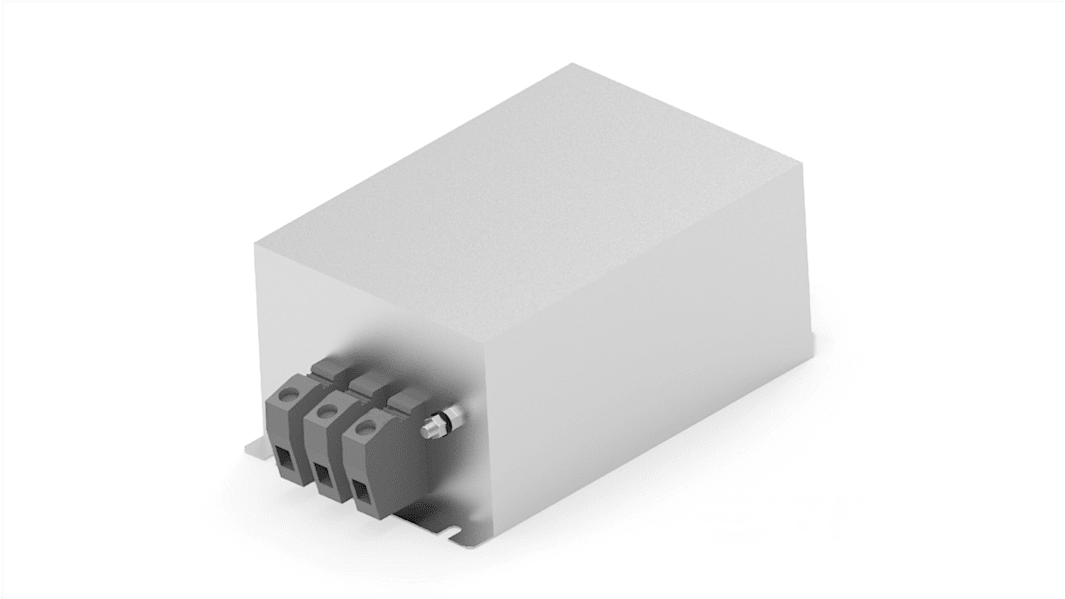

The TE Connectivity three phase very high performance EMI filter is chassis for motor drive applications requiring compact space and convenient installation with superior performance at significant interference levels.
IT power distribution network
Process automation equipment's
Low leakage current
