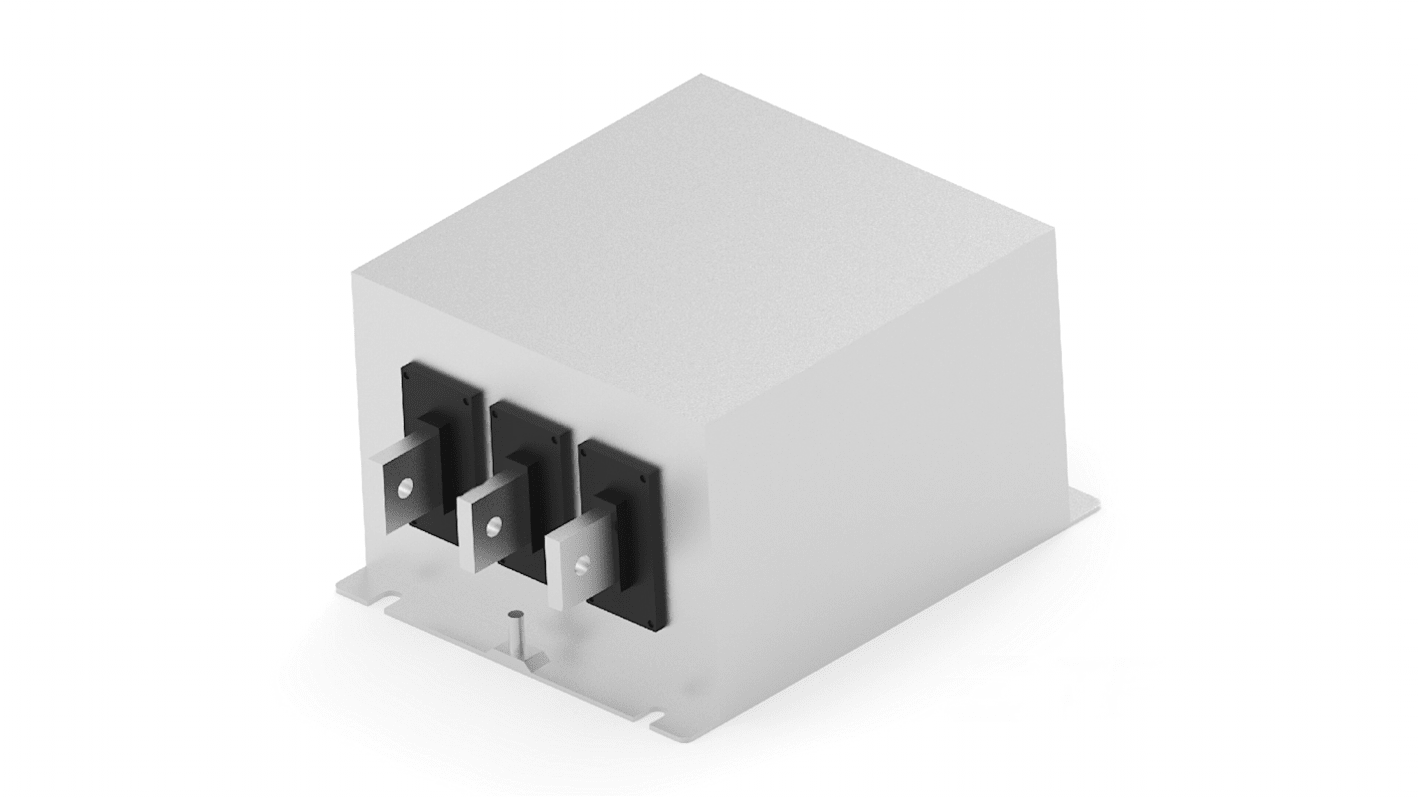

TE Connectivity, AHV 1 kA 760V 50Hz, 60 Hz, Chassis Mount EMI Filter, Busbar 3 Phase
- RS Stock No.:
- 264-5639
- Mfr. Part No.:
- 2-2405081-4
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£1,430.04
(exc. VAT)
£1,716.05
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,430.04 |
*price indicative
- RS Stock No.:
- 264-5639
- Mfr. Part No.:
- 2-2405081-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Current | 1kA | |
| Product Type | EMI Filter | |
| Maximum Voltage | 760V | |
| Mount Type | Chassis Mount | |
| Termination Style | Busbar | |
| Number of Phases | 3 | |
| Number of Stages | 1 | |
| Series | AHV | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 3mA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA 22.2 NO 8, RoHS, UL 60939-3 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Current 1kA | ||
Product Type EMI Filter | ||
Maximum Voltage 760V | ||
Mount Type Chassis Mount | ||
Termination Style Busbar | ||
Number of Phases 3 | ||
Number of Stages 1 | ||
Series AHV | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 3mA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA 22.2 NO 8, RoHS, UL 60939-3 | ||
- COO (Country of Origin):
- CZ
The TE Connectivity three phase very high performance EMI filter is chassis for motor drive applications requiring compact space and convenient installation with superior performance at significant interference levels.
IT power distribution network
Process automation equipment's
Low leakage current
