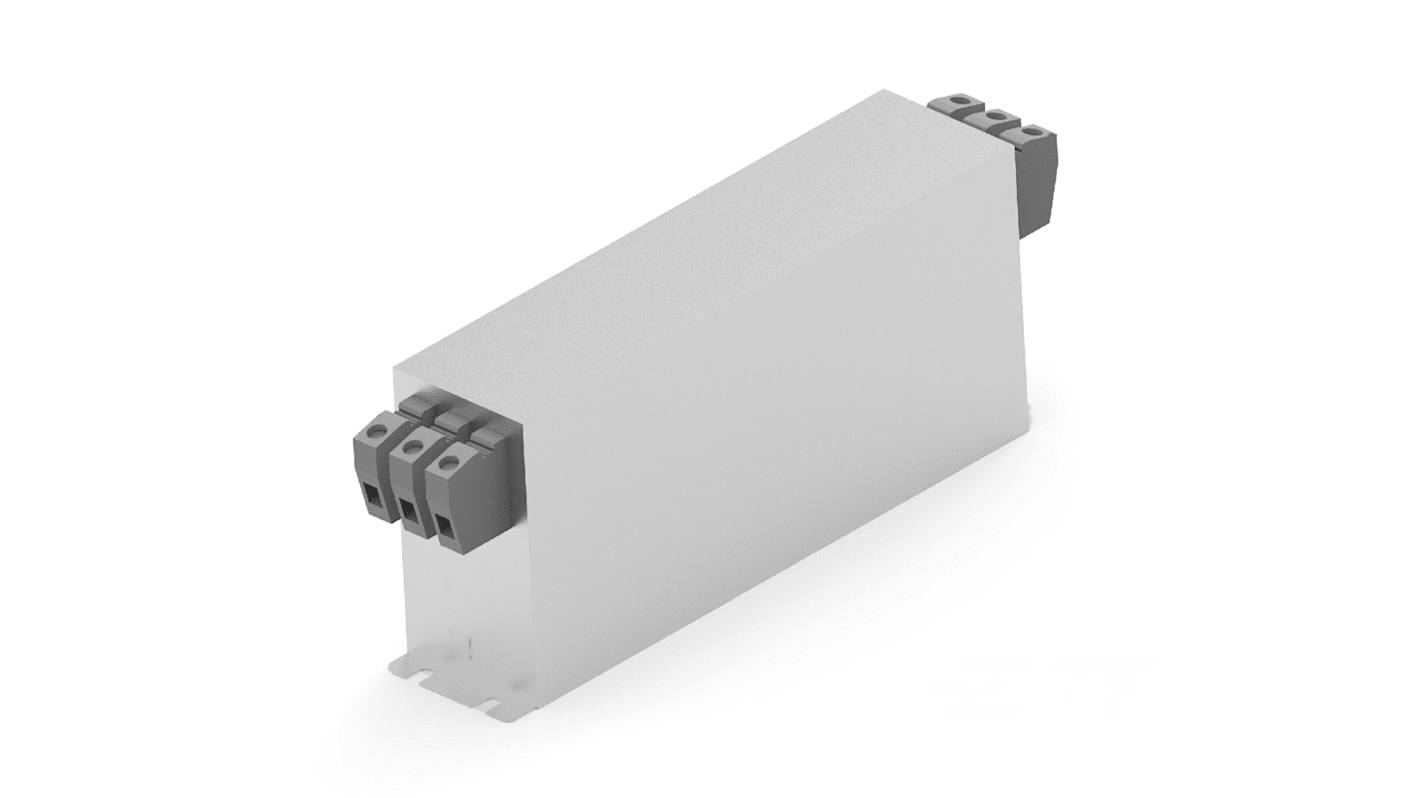

TE Connectivity, AHV 7 A 760V 50Hz, 60 Hz, Chassis Mount EMI Filter, Terminal Block 3 Phase
- RS Stock No.:
- 264-5640
- Mfr. Part No.:
- 2405077-1
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 264-5640
- Mfr. Part No.:
- 2405077-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Current | 7A | |
| Product Type | EMI Filter | |
| Maximum Voltage | 760V | |
| Mount Type | Chassis Mount | |
| Termination Style | Terminal Block | |
| Number of Phases | 3 | |
| Series | AHV | |
| Number of Stages | 1 | |
| Operating Frequency | 50, 60Hz | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Leakage Current | 2.5mA | |
| Standards/Approvals | UL 60939-3, RoHS, CSA 22.2 NO 8 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Current 7A | ||
Product Type EMI Filter | ||
Maximum Voltage 760V | ||
Mount Type Chassis Mount | ||
Termination Style Terminal Block | ||
Number of Phases 3 | ||
Series AHV | ||
Number of Stages 1 | ||
Operating Frequency 50, 60Hz | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Leakage Current 2.5mA | ||
Standards/Approvals UL 60939-3, RoHS, CSA 22.2 NO 8 | ||
- COO (Country of Origin):
- CZ
The TE Connectivity three phase very high performance EMI filter is bookshelf design for motor drive applications requiring minimum space and convenient installation with superior performance at significant interference levels.
Renewable energy systems
Process automation equipment's
Energy conversion devices
