MG Chemicals Amber, Clear Epoxy Potting Compound

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CA
Product Details

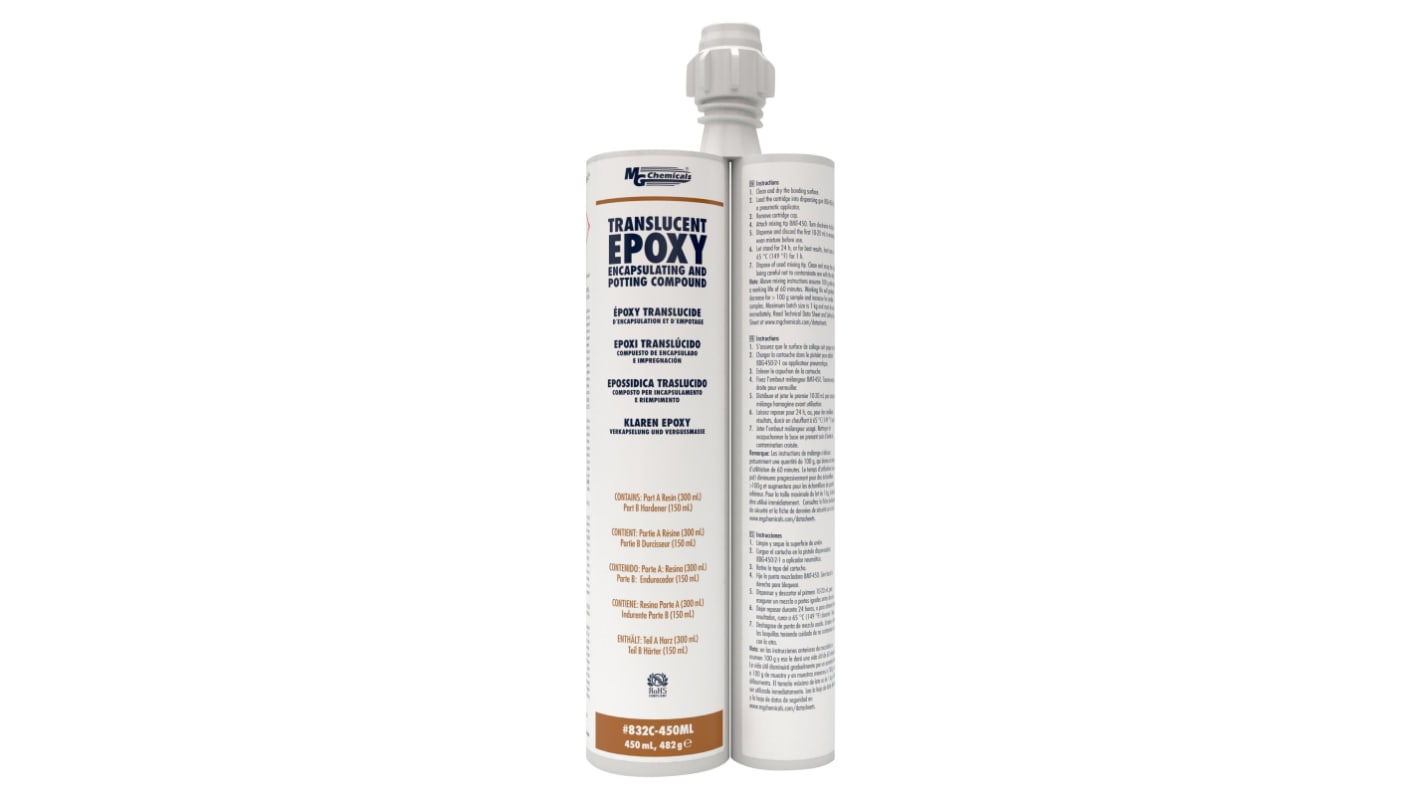

The 832C Translucent Epoxy Encapsulating and Potting Compound is an electric grade epoxy. It is simple to mix and easy to use. This two parts clear epoxy provides great insulation and protection value. It protects against static discharges, shocks, vibrations, and mechanical impacts. It insulates against heat and conductivity. It is extremely resistant to environmental humidity, salt water, and many harsh chemicals.

Extreme impact resistance (contains a form of nylon)
Easy 2A:1B mix ratio by volume compatible with most dispensing equipment
Negligible Volatile Organic Content (VOC)
RoHS Compliant

Specifications
Attribute Value
Product Material Epoxy
Package Type Cartridge
Package Size 450 mL
Special Properties Chemical Resistance, Harsh Resistance, Salt Water Resistance
Cure Time 24 h @ +22°C
Hardness 84 Shore D
Thermal Conductivity 0.309W/mK
Colour Amber, Clear
Maximum Operating Temperature +140°C
Minimum Operating Temperature -30°C
Dielectric Strength 16.7 kV/mm, 425 V/mil
Chemical Composition (C12-14) Alkylglycidyl Ether, Bisphenol A Diglycidyl Ether Resin (Liquid), C18 Fatty Acid Dimers/Polyethylenepolyamine Polyamides, Triethylenetetramine
Physical Form Liquid
Operating Temperature Range -30 → +140 °C
Viscosity Measurement 1900 (Part A) cP, 5800 (Part B) cP
Volume Resistivity 1.22 x 10^16Ω cm
17 In stock - FREE next working day delivery available
Price Each
£ 36.81
(exc. VAT)
£ 44.17
(inc. VAT)
Units
Per unit
1 - 5
£36.81
6 - 14
£35.33
15 +
£34.60
