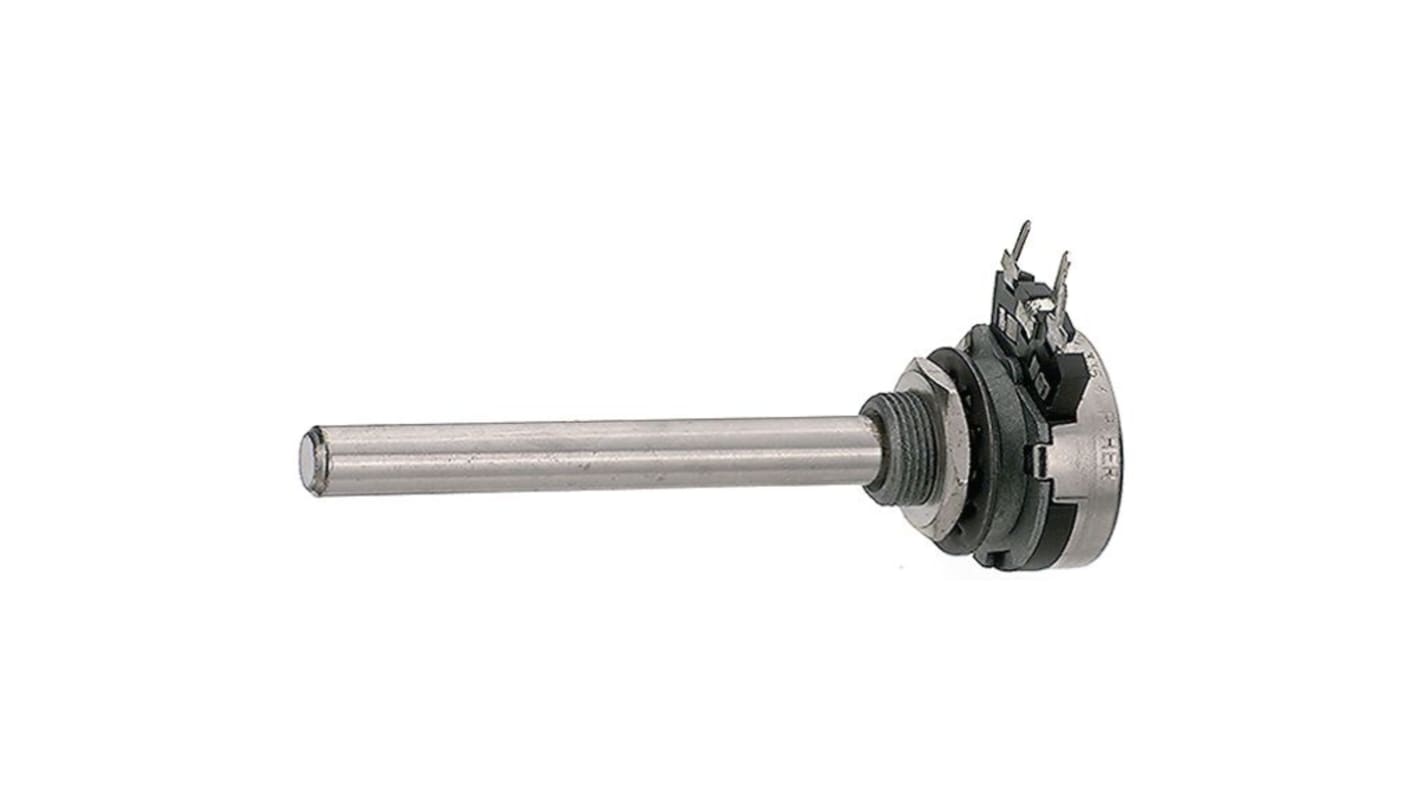

PIHER SENSORS AND CONTROLS S.S.A T-21 1 mΩ Linear Potentiometer 1-Turns 1-Gang Through Hole, T-21AHM0607105A
- RS Stock No.:
- 287-2501
- Distrelec Article No.:
- 164-35-378
- Mfr. Part No.:
- T-21AHM0607105A
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Subtotal (1 unit)*
£5.98
(exc. VAT)
£7.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 81 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.98 |
*price indicative
- RS Stock No.:
- 287-2501
- Distrelec Article No.:
- 164-35-378
- Mfr. Part No.:
- T-21AHM0607105A
- Brand:
- PIHER SENSORS AND CONTROLS S.S.A
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PIHER SENSORS AND CONTROLS S.S.A | |
| Potentiometer Type | Linear | |
| Product Type | Potentiometer | |
| Maximum Resistance | 1mΩ | |
| Shaft Diameter | 6mm | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 250mW | |
| Electrical Taper | Linear | |
| Mount Type | Through Hole | |
| Termination Style | Soldering Lug | |
| Shaft Length | 60mm | |
| Pin Count | 3 | |
| Adjustment Type | Side | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | REACH, RoHS | |
| Length | 21.5mm | |
| Height | 33mm | |
| Tolerance ± | 20% | |
| Series | T-21 | |
| Actuator Type | Round | |
| Select all | ||
|---|---|---|
Brand PIHER SENSORS AND CONTROLS S.S.A | ||
Potentiometer Type Linear | ||
Product Type Potentiometer | ||
Maximum Resistance 1mΩ | ||
Shaft Diameter 6mm | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 250mW | ||
Electrical Taper Linear | ||
Mount Type Through Hole | ||
Termination Style Soldering Lug | ||
Shaft Length 60mm | ||
Pin Count 3 | ||
Adjustment Type Side | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals REACH, RoHS | ||
Length 21.5mm | ||
Height 33mm | ||
Tolerance ± 20% | ||
Series T-21 | ||
Actuator Type Round | ||
- COO (Country of Origin):
- ES
The 21mm Carbon Potentiometer features a mechanical rotation angle of 310° ± 5°, providing precise control over adjustments. Its electrical rotation angle spans 290° ± 20°, ensuring accurate electrical output across its range. With an operating temperature range of 25°C to 70°C, this potentiometer remains functional and reliable in a variety of environmental conditions. These specifications make it suitable for diverse applications where precise control and durability are essential.
High mechanical endurance
Carbon resistive element
