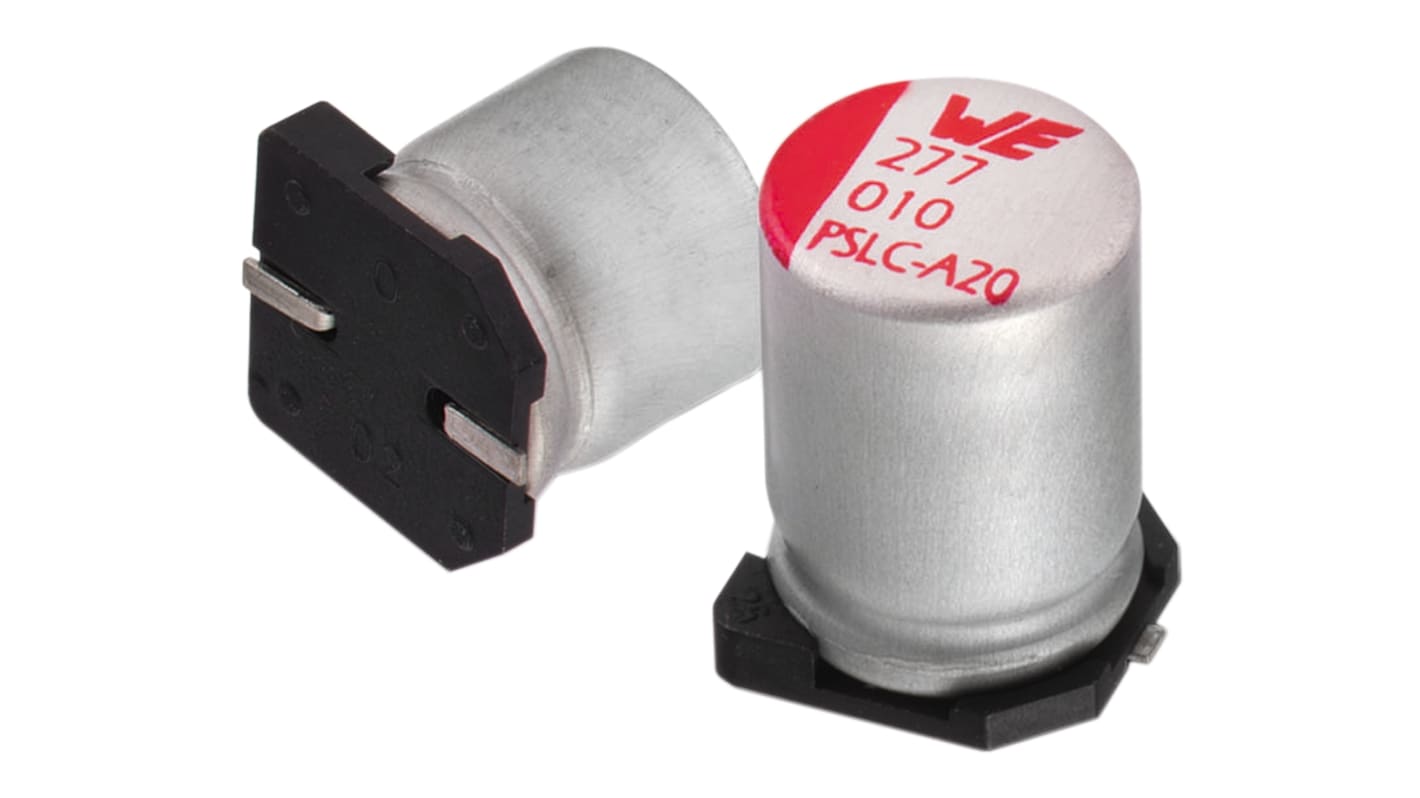

Wurth Elektronik 82μF Surface Mount Polymer Capacitor, 20V dc

View this category

Subtotal (1 reel of 500 units)*

£341.50

(exc. VAT)

£410.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
500 +£0.683£341.50

*price indicative

RS Stock No.:
163-5959
Mfr. Part No.:
875115452002
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Technology

Polymer

Capacitance

82µF

Voltage

20V dc

Dielectric Material Family

Aluminium

Mounting Type

Surface Mount

Equivalent Series Resistance

20mΩ

Lead Pitch

3.1mm

Tolerance

±20%

Maximum Operating Temperature

+105°C

Height

8.7mm

Dimensions

8.7 (Dia) x 8.7mm

Series

WCAP-PSHP

Polarised

Polar

Leakage Current

328 μA

Dissipation Factor

8%

Lifetime

2000h

Minimum Operating Temperature

-55°C

Ripple Current

3.5A

Diameter

8.7mm
