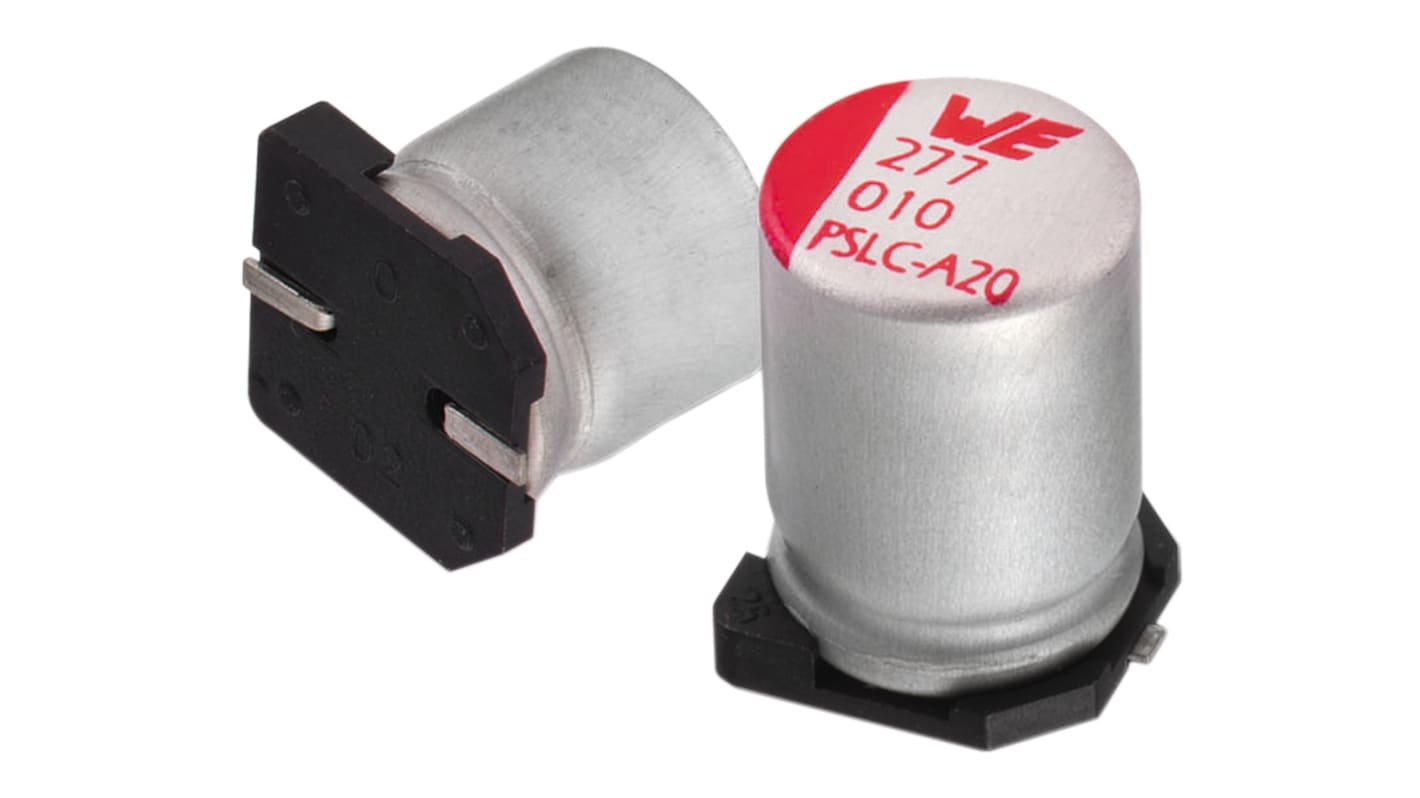

Wurth Elektronik 10μF Surface Mount Polymer Capacitor, 20V dc

View all Polymer Capacitors

Subtotal (1 pack of 5 units)*

£2.87

(exc. VAT)

£3.445

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£0.574£2.87

*price indicative

RS Stock No.:
838-7529
Mfr. Part No.:
875105444001
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Technology

Polymer

Capacitance

10µF

Voltage

20V dc

Dielectric Material Family

Aluminium

Mounting Type

Surface Mount

Equivalent Series Resistance

30mΩ

Lead Pitch

2.1mm

Tolerance

±20%

Height

6.3mm

Maximum Operating Temperature

+105°C

Dimensions

5.8 (Dia) x 6.3mm

Series

WCAP-PSLP

Diameter

5.8mm

Dissipation Factor

8%

Ripple Current

2.2A

Minimum Operating Temperature

-55°C

Polarised

Polar

Lifetime

2000h

Leakage Current

600 μA

Wurth Elektronik SMD Aluminium Polymer Capacitor - WCAP-PSLP series


Aluminium Polymer capacitors contain solid conductive polymer instead of wet electrolytic,thus the benefits are:
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer

WCAP-PSLP are low profile SMD polymer electrolytic capacitors Series
Load life of 2000h @ +105°C
Operating temperature: -55°C to +105°C
Reflow soldering is recommended
