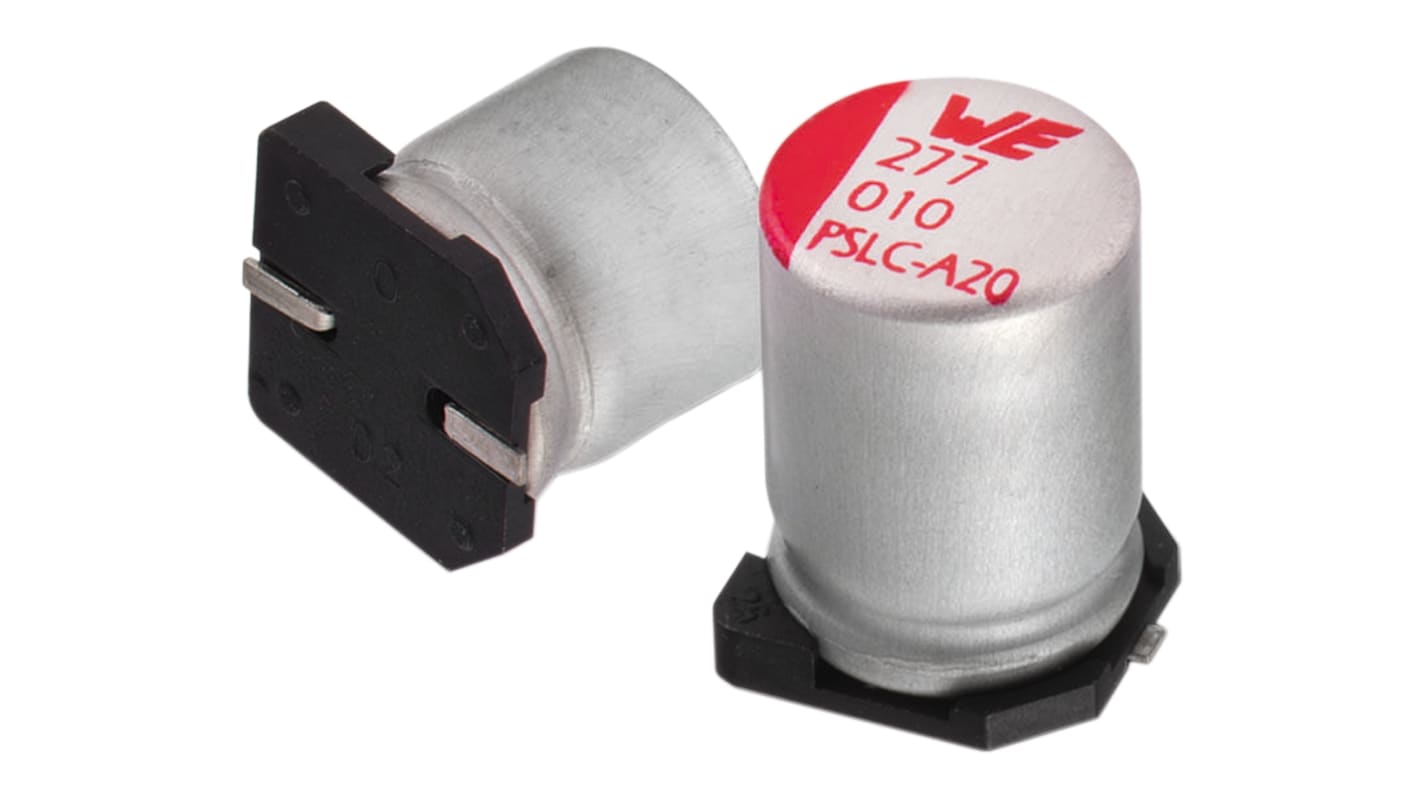

Wurth Elektronik 22μF Surface Mount Polymer Capacitor, 20V dc

View all Polymer Capacitors

Subtotal (1 pack of 5 units)*

£2.91

(exc. VAT)

£3.49

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1,000 unit(s) shipping from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£0.582£2.91

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
838-7526
Mfr. Part No.:
875105444003
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Technology

Polymer

Capacitance

22µF

Dielectric Material Family

Aluminium

Voltage

20V dc

Mounting Type

Surface Mount

Equivalent Series Resistance

30mΩ

Lead Pitch

2.1mm

Tolerance

±20%

Maximum Operating Temperature

+105°C

Height

6.3mm

Dimensions

5.8 (Dia) x 6.3mm

Series

WCAP-PSLP

Polarised

Polar

Dissipation Factor

8%

Lifetime

2000h

Leakage Current

600 μA

Diameter

5.8mm

Minimum Operating Temperature

-55°C

Ripple Current

2.2A

Wurth Elektronik SMD Aluminium Polymer Capacitor - WCAP-PSLP series


Aluminium Polymer capacitors contain solid conductive polymer instead of wet electrolytic,thus the benefits are:
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer

WCAP-PSLP are low profile SMD polymer electrolytic capacitors Series
Load life of 2000h @ +105°C
Operating temperature: -55°C to +105°C
Reflow soldering is recommended
