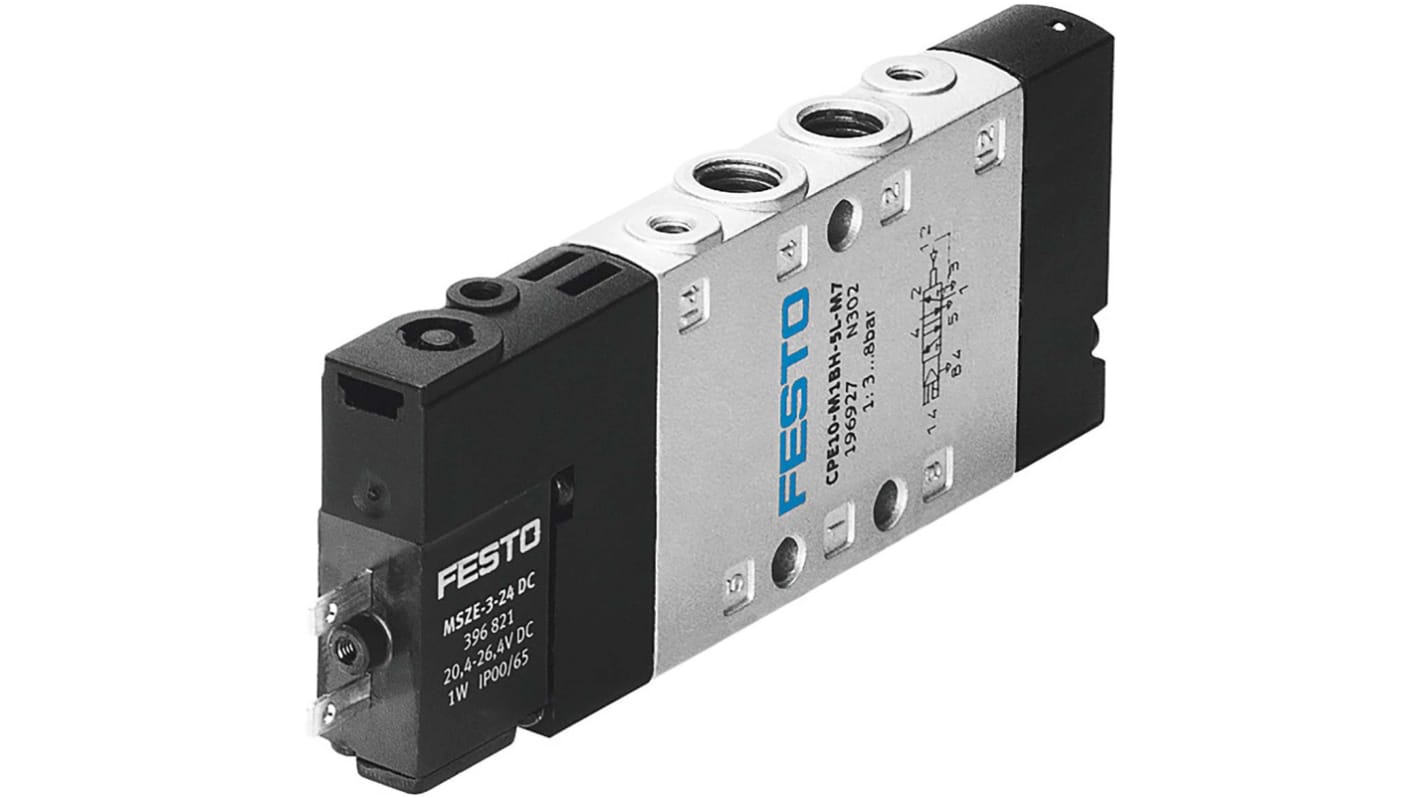

Festo Solenoid Pilot Valve - Electric G CPE Series 196937
- RS Stock No.:
- 175-4619
- Distrelec Article No.:
- 301-68-398
- Mfr. Part No.:
- CPE14-M1BH-5/3G-1/8
- Brand:
- Festo
Subtotal (1 unit)*
£210.24
(exc. VAT)
£252.29
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 19 unit(s) shipping from 07 September 2026
- Plus 20 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £210.24 |
*price indicative
- RS Stock No.:
- 175-4619
- Distrelec Article No.:
- 301-68-398
- Mfr. Part No.:
- CPE14-M1BH-5/3G-1/8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Solenoid Pilot Valve | |
| Port Type | Push-in, Threaded | |
| Connection Thread Standard | G | |
| Actuation Type | Electric | |
| Series | CPE | |
| Mount Type | Through Hole | |
| Number of Ports | 5 | |
| Body Material | Aluminium | |
| Maximum Operating Pressure | 8 bar | |
| Maximum Pilot Pressure | 10bar | |
| Port Gender | Female | |
| Minimum Pilot Pressure | 0.9bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Flow Rate | 800L/min | |
| Valve Function | 5/3 | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | c UL US, RoHS | |
| Width | 14mm | |
| Model Number | 196937 | |
| Thread Size | 1/8 in | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Solenoid Pilot Valve | ||
Port Type Push-in, Threaded | ||
Connection Thread Standard G | ||
Actuation Type Electric | ||
Series CPE | ||
Mount Type Through Hole | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Operating Pressure 8 bar | ||
Maximum Pilot Pressure 10bar | ||
Port Gender Female | ||
Minimum Pilot Pressure 0.9bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Flow Rate 800L/min | ||
Valve Function 5/3 | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals c UL US, RoHS | ||
Width 14mm | ||
Model Number 196937 | ||
Thread Size 1/8 in | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Festo Solenoid Pilot Valve, Piston Slide Design Type, 3 Bar Minimum Operating Pressure - CPE14-M1BH-5/3G
Need a handy multitasker to support your complex compressed air operation? Choose this solenoid pilot valve from Festo. Its 5/3 design delivers fully pneumatic operation with the benefit of a closed function. This means air can't get in or out when there's no actuating signal, so you have the ability to stop the system in safety-critical jobs. A throttleable exhaust function protects your equipment by blowing off some steam if the air pressure gets too high. This is a widely compatible option, as its coil is energised by 24V DC.
Features & Benefits
• Standard flow rate of 750L/min to support demanding applications
• Responsive switching-on time of 20ms means your equipment is up and running promptly
• IP65 rating means it's completely dust-tight and withstands low-pressure water sprays from any direction
• Hard-wearing aluminium body shrugs off mechanical stress, impact and abrasion to deliver a long service life
Applications
• Pharmaceutical production
• Aerospace engineering
• Process automation
What size of threads do the connection ports have?
This solenoid pilot valve has M3 ports, so you'll have no trouble linking to standard pneumatic equipment.
How much does the unit weigh?
It weighs in at just 120g, so it doesn't add excess load to your setup.
