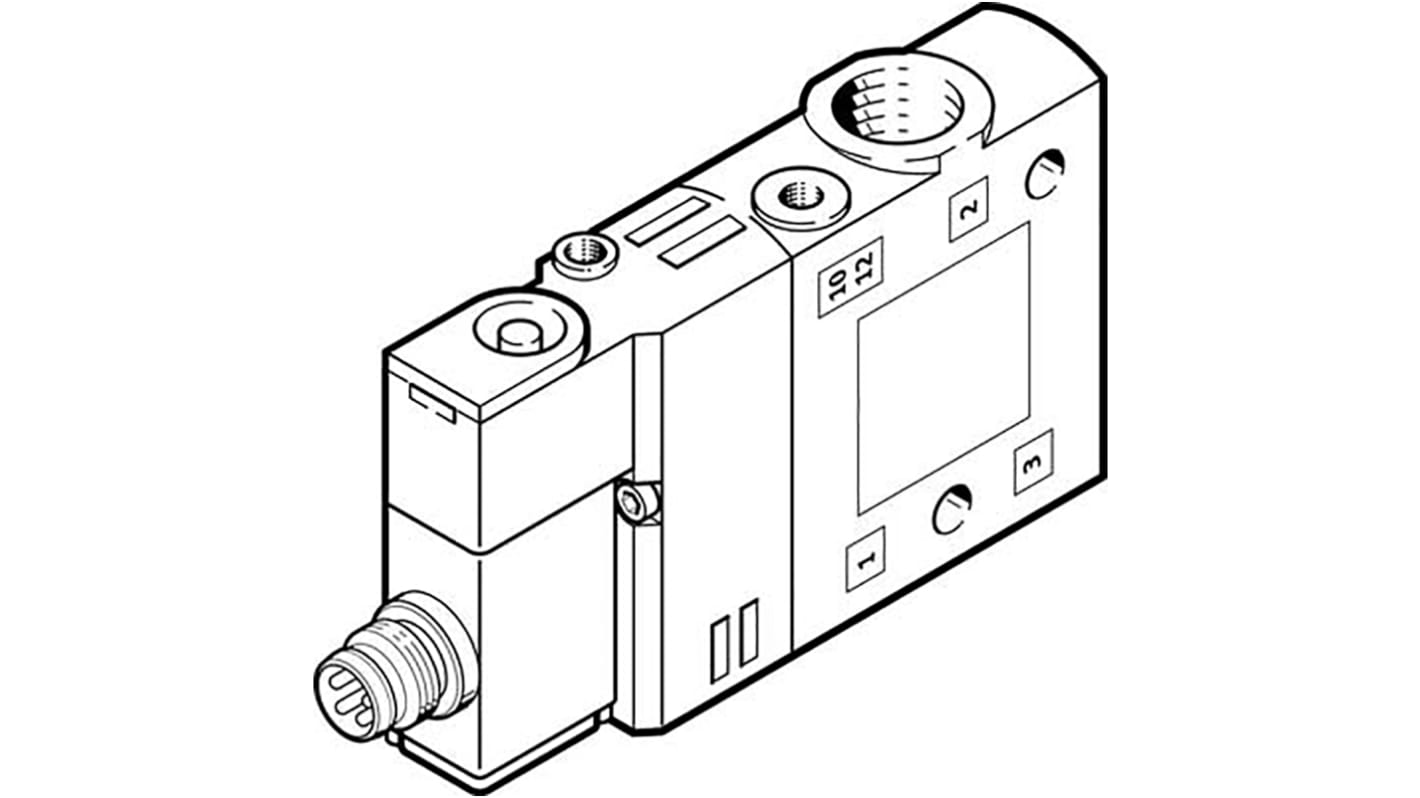

Festo 3/2 Solenoid Pilot Valve - Pilot G 1/8 CPE Series 24V dc, 550247
- RS Stock No.:
- 175-2117
- Mfr. Part No.:
- CPE14-M1CH-3GL-1/8
- Brand:
- Festo
Subtotal (1 unit)*
£119.86
(exc. VAT)
£143.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8 unit(s) shipping from 27 October 2025
- Plus 5 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £119.86 |
*price indicative
- RS Stock No.:
- 175-2117
- Mfr. Part No.:
- CPE14-M1CH-3GL-1/8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Function | 3/2 | |
| Connection Port Thread | G 1/8 | |
| Actuation Type | Pilot | |
| Manufacturer Series | CPE | |
| Mounting Style | Through Hole | |
| Solenoid Voltage | 24V dc | |
| Solenoid Fitted | Yes | |
| Number of Ports | 3 | |
| Body Material | Die Cast Aluminium | |
| Maximum Flow Rate | 900L/min | |
| Solenoid Power Consumption | 1.28W | |
| Minimum Operating Pressure | 2.5bar | |
| Thread Size | 1/8in | |
| Maximum Operating Temperature | +50°C | |
| Number of Positions | 2 | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Pressure | 8bar | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand Festo | ||
Function 3/2 | ||
Connection Port Thread G 1/8 | ||
Actuation Type Pilot | ||
Manufacturer Series CPE | ||
Mounting Style Through Hole | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 3 | ||
Body Material Die Cast Aluminium | ||
Maximum Flow Rate 900L/min | ||
Solenoid Power Consumption 1.28W | ||
Minimum Operating Pressure 2.5bar | ||
Thread Size 1/8in | ||
Maximum Operating Temperature +50°C | ||
Number of Positions 2 | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Pressure 8bar | ||
Thread Standard G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Festo Solenoid Pilot Valve, 8 Bar Maximum Operating Pressure, 60g Weight - CPE14-M1CH-3GL-1/8
Keep air moving in the right direction around your pneumatic system with this solenoid pilot valve from Festo. It's a monostable device that remains in its default position when the current is off and is activated when the electrical current comes on. An inscription holder lets you label and easily identify the valve inside your equipment, making maintenance easier. The die-cast aluminium body stands strong against corrosion and impacts. Thanks to a 2.5 to 8 bar operating pressure range, this is a reliable workmate in low-pressure installations.
Features & Benefits
• Standard nominal flow rate of 900L/min for rapid actuation and response in time-sensitive operations
• Standard M8 4-pin electrical connection fits neatly into your existing setup
• NBR seals prevent air leakage and shut out contamination to keep things running smoothly
• IP67 rating means it's dustproof and resistant to immersion in 1m of water for 30 minutes
• Standard M8 4-pin electrical connection fits neatly into your existing setup
• NBR seals prevent air leakage and shut out contamination to keep things running smoothly
• IP67 rating means it's dustproof and resistant to immersion in 1m of water for 30 minutes
Applications
• Irrigation systems
• Oil and gas plants
• Air compressors
• Oil and gas plants
• Air compressors
What does this valve's 3/2 function mean?
It tells you the valve has three ports and two positions for switching. This makes it ideal for regulating a double-acting cylinder that uses compressed air to move its piston back and forth.
