SMC Pneumatic Solenoid Valve - 5/2 Way, 5/3 Way Solenoid NPT VS7-6 Series 24V dc
- RS Stock No.:
- 646-389
- Mfr. Part No.:
- EVS7-6-FHG-D-3CVO-Q
- Brand:
- SMC
Subtotal (1 unit)*
£124.27
(exc. VAT)
£149.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £124.27 |
*price indicative
- RS Stock No.:
- 646-389
- Mfr. Part No.:
- EVS7-6-FHG-D-3CVO-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Solenoid Valve | |
| Connection Thread Standard | NPT | |
| Actuation Type | Solenoid | |
| Series | VS7-6 | |
| Voltage | 24V dc | |
| Solenoid Type | Double | |
| Maximum Operating Pressure | 1 Mpa | |
| Valve Function | 5/2 Way, 5/3 Way | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | ISO, RoHS | |
| Electrical Connection Type | DIN Connector | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Solenoid Valve | ||
Connection Thread Standard NPT | ||
Actuation Type Solenoid | ||
Series VS7-6 | ||
Voltage 24V dc | ||
Solenoid Type Double | ||
Maximum Operating Pressure 1 Mpa | ||
Valve Function 5/2 Way, 5/3 Way | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Hazardous Area Certification No | ||
Standards/Approvals ISO, RoHS | ||
Electrical Connection Type DIN Connector | ||
- COO (Country of Origin):
- JP

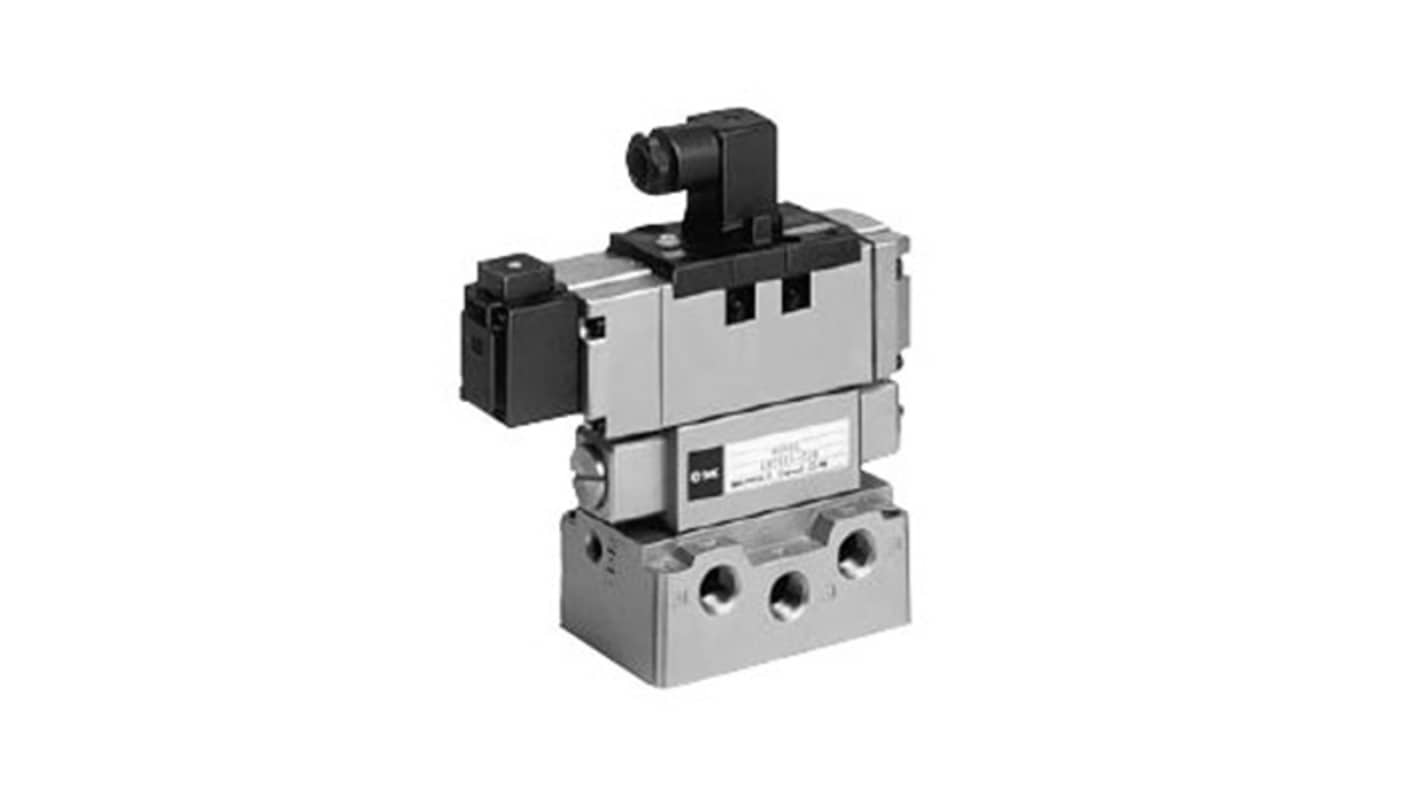

The SMC ISO valve VS7-6 featuring a 4/5 port configuration, delivers reliable and precise pneumatic control for industrial automation systems. Designed for durability and efficient airflow management, this valve ensures smooth operation and easy integration in a variety of applications.
Solenoid interface conforms to CNOMO
Manifold interface to ISO standards
Low power consumption of 1.8W per solenoid
Internal or external pilot supply
Large flow capacity
Fast response and long life
