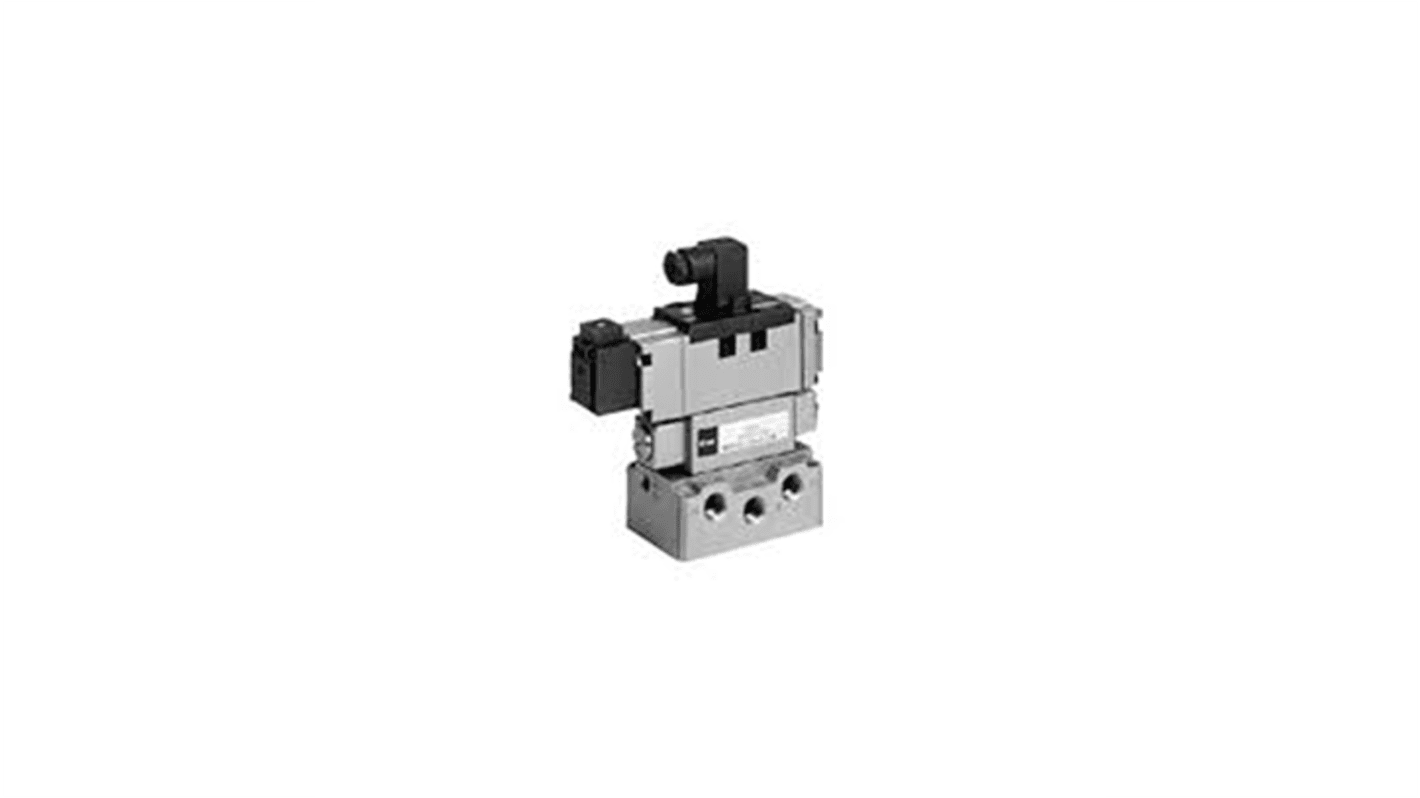

SMC Solenoid Valve - Solenoid EVS7-8 Series
- RS Stock No.:
- 623-773
- Mfr. Part No.:
- EVS7-8-FG-S-6CV-Q
- Brand:
- SMC
Subtotal (1 unit)*
£112.00
(exc. VAT)
£134.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £112.00 |
*price indicative
- RS Stock No.:
- 623-773
- Mfr. Part No.:
- EVS7-8-FG-S-6CV-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Solenoid Valve | |
| Actuation Type | Solenoid | |
| Series | EVS7-8 | |
| Seal Material | Rubber | |
| Solenoid Type | Single | |
| Mount Type | Top Mount | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -10°C | |
| Maximum Flow Rate | 3000L/min | |
| Maximum Operating Temperature | 60°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | ISO 5599/1 | |
| Electrical Connection Type | M 12 Connector | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Solenoid Valve | ||
Actuation Type Solenoid | ||
Series EVS7-8 | ||
Seal Material Rubber | ||
Solenoid Type Single | ||
Mount Type Top Mount | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -10°C | ||
Maximum Flow Rate 3000L/min | ||
Maximum Operating Temperature 60°C | ||
Hazardous Area Certification No | ||
Standards/Approvals ISO 5599/1 | ||
Electrical Connection Type M 12 Connector | ||
- COO (Country of Origin):
- JP
The SMC ISO single solenoid valve from the EVS7-8 series, likely a 4 or 5 port valve. This valve provides consistent pneumatic control with a single solenoid, conforming to ISO standards and offering flexible installation for various industrial uses.
Single solenoid operation
Offers consistent pneumatic control
Features flexible installation
