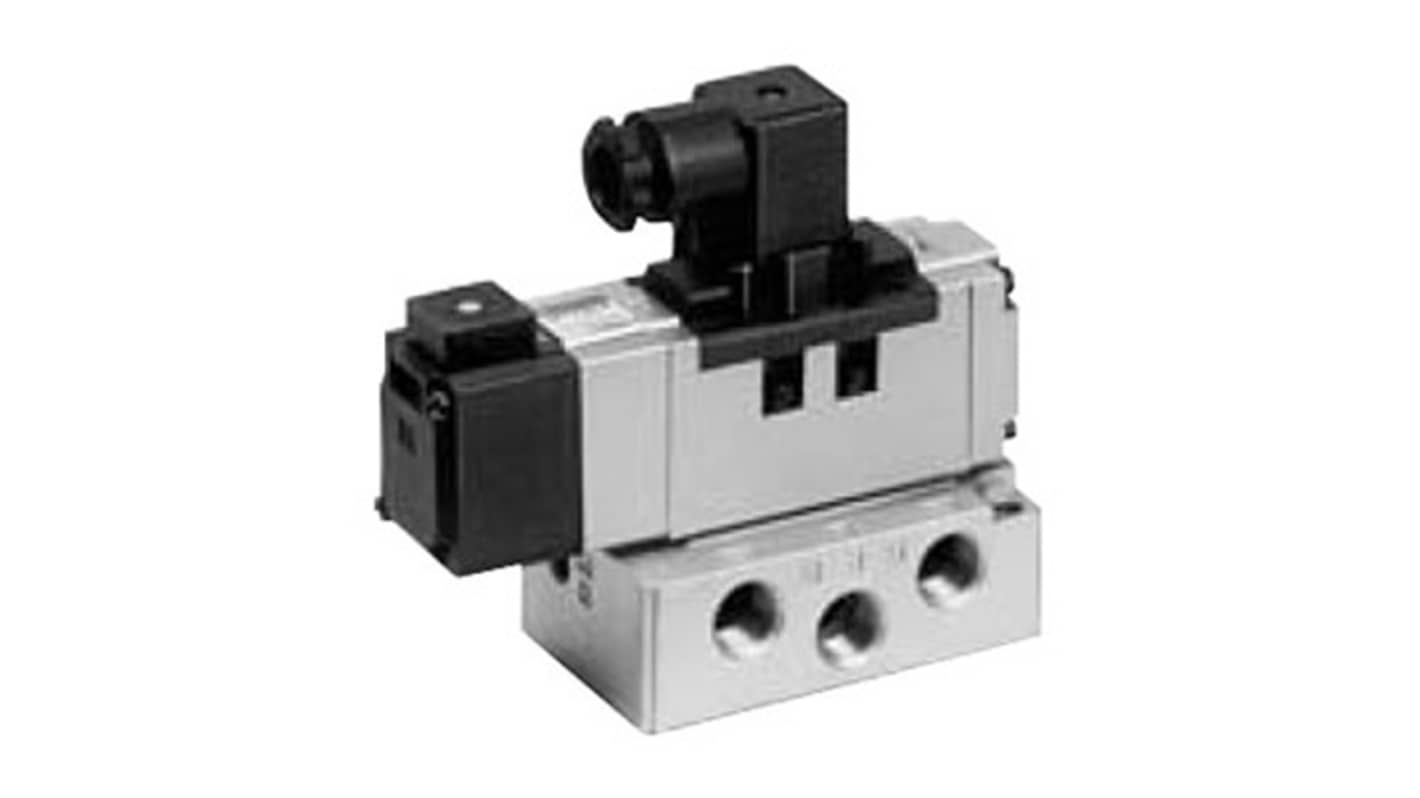

SMC Solenoid Valve - 2 Position, 5 Port, Double Solenoid, NC, Pilot Operated Solenoid Rc or G VP7 Series 24V dc

Subtotal (1 unit)*

£95.49

(exc. VAT)

£114.59

(inc. VAT)

Stocked by manufacturer

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£95.49

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Solenoid Valve
	Port Type	Rc, Exhaust, Manifold, Threaded, Type G
	Connection Thread Standard	Rc or G
	Actuation Type	Solenoid
	Series	VP7
	Voltage	24V dc
	Solenoid Type	Built-In Full-Wave Rectifier
	Seal Material	Rubber
	Mount Type	Manifold, Plate
	Number of Ports	5
	Maximum Operating Pressure	1 Mpa
	Body Material	Die Cast Aluminium
	Minimum Pilot Pressure	0.2MPa
	Valve Function	2 Position, 5 Port, Double Solenoid, NC, Pilot Operated
	Minimum Operating Temperature	-10°C
	Port Gender	Female
	Maximum Flow Rate	1639L/min
	Maximum Operating Temperature	50°C
	Solenoid Power Consumption	0.55W
	Standards/Approvals	Class B coil insulation, IEC60529 IP53, ISO 5599-1, RoHS, Surge suppressed
	Hazardous Area Certification	No
	Electrical Connection Type	DIN Terminal
	Number of Positions	2
