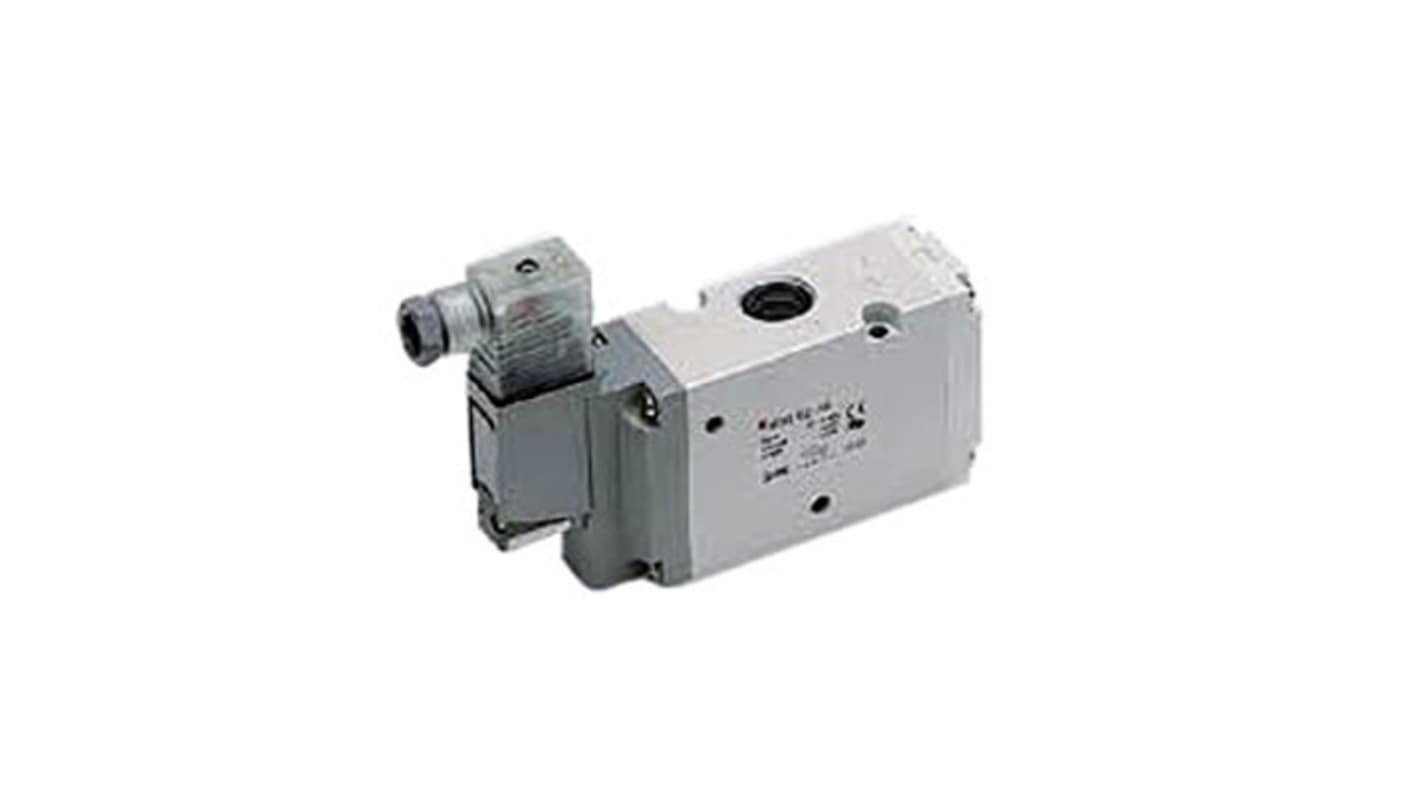

SMC Pneumatic Solenoid Valve - Air Operated Solenoid BSP VP700 Series 24V dc

Subtotal (1 unit)*

£128.93

(exc. VAT)

£154.72

(inc. VAT)

Stocked by manufacturer

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£128.93

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Pneumatic Solenoid Valve
	Port Size	1/2 in
	Port Type	Type G
	Connection Thread Standard	BSP
	Actuation Type	Solenoid
	Seal Material	Elastic Rubber
	Voltage	24V dc
	Series	VP700
	Mount Type	In-Line, Base
	Number of Ports	3
	Body Material	Aluminium
	Maximum Operating Pressure	1 Mpa
	Valve Function	Air Operated
	Mount Pattern	Base
	Maximum Flow Rate	3637L/min
	Port Gender	Female
	Minimum Pilot Pressure	0.2MPa
	Maximum Pilot Pressure	1MPa
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Solenoid Power Consumption	0.55W
	Standards/Approvals	EN175301-803 DIN terminal, RoHS, IP65 likely
	Hazardous Area Certification	No
	Electrical Connection Type	DIN Terminal
	Number of Positions	2
