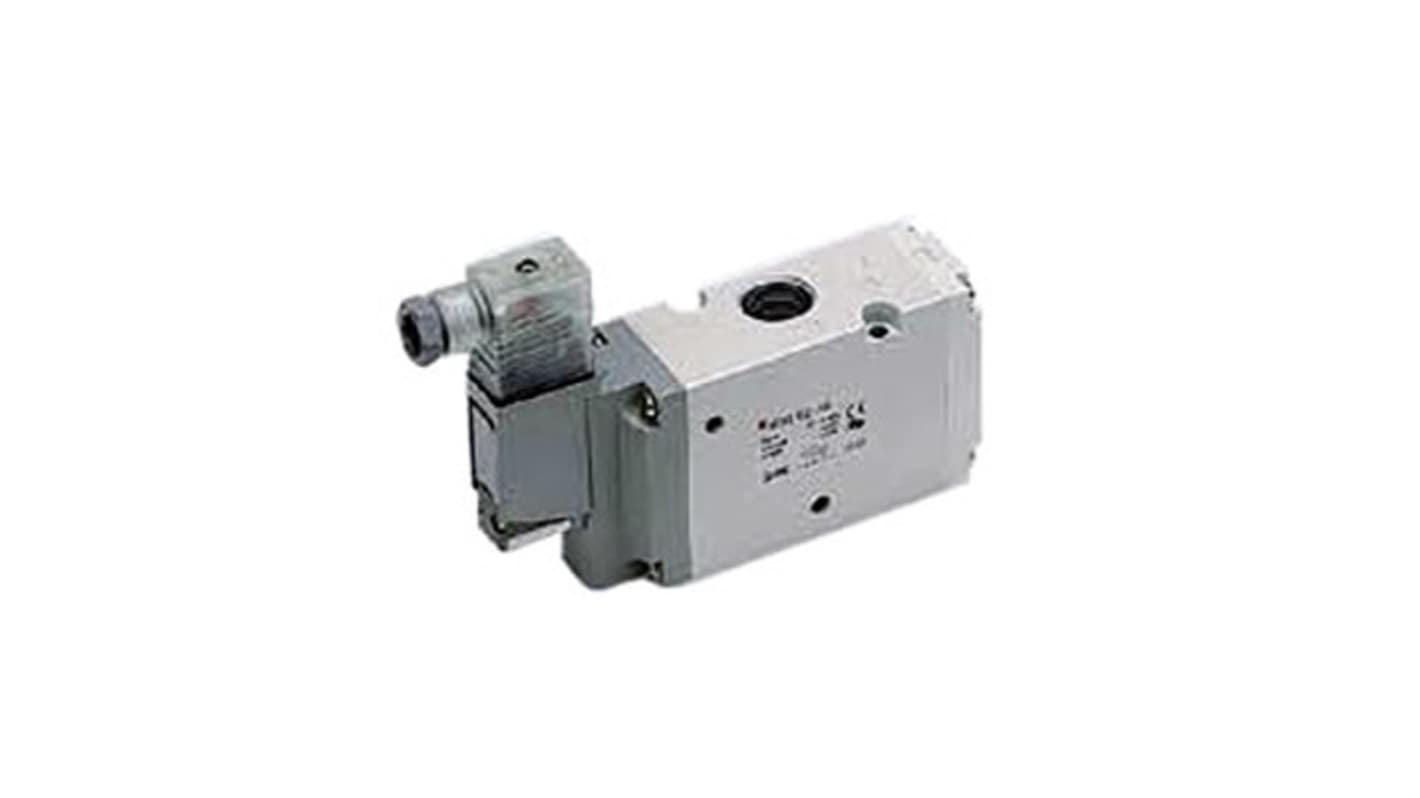

SMC Pneumatic Solenoid Valve - Air Operated Solenoid BSP VP700 Series 24V dc

Subtotal (1 unit)*

£126.66

(exc. VAT)

£151.99

(inc. VAT)

Stocked by manufacturer

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£126.66

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Pneumatic Solenoid Valve
	Port Size	1/2 in
	Port Type	Type G
	Connection Thread Standard	BSP
	Actuation Type	Solenoid
	Voltage	24V dc
	Seal Material	Elastic Rubber
	Series	VP700
	Mount Type	Base, In-Line
	Number of Ports	3
	Body Material	Aluminium
	Maximum Operating Pressure	1 Mpa
	Mount Pattern	Base
	Minimum Operating Temperature	-10°C
	Minimum Pilot Pressure	0.2MPa
	Maximum Pilot Pressure	1MPa
	Valve Function	Air Operated
	Maximum Flow Rate	3637L/min
	Port Gender	Female
	Maximum Operating Temperature	50°C
	Solenoid Power Consumption	0.55W
	Standards/Approvals	EN175301-803 DIN terminal, IP65 likely, RoHS
	Hazardous Area Certification	No
	Number of Positions	2
	Electrical Connection Type	DIN Terminal
