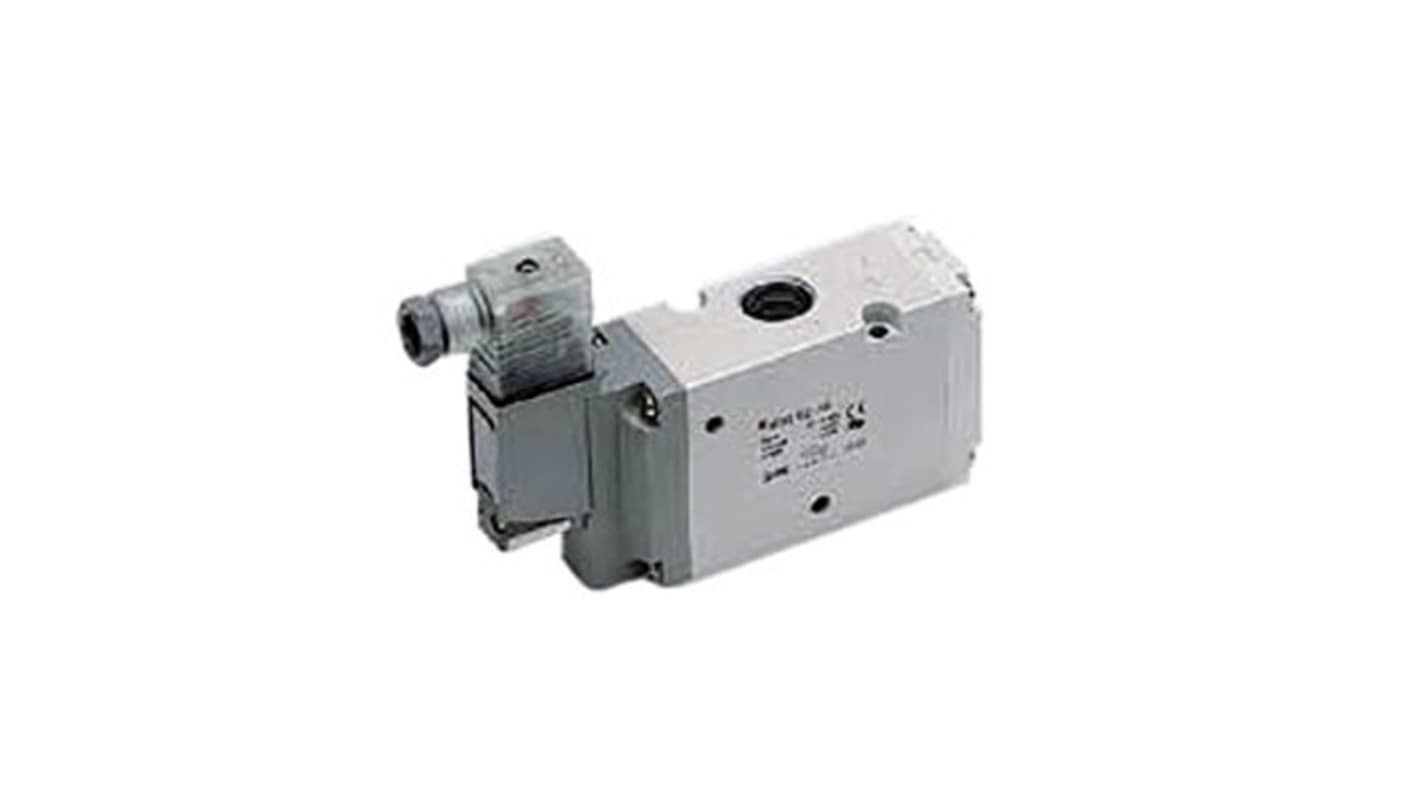

SMC Pneumatic Solenoid Valve - Air Operated Solenoid BSP VP700 Series 110V ac

Subtotal (1 unit)*

£126.66

(exc. VAT)

£151.99

(inc. VAT)

Stocked by manufacturer

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£126.66

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Pneumatic Solenoid Valve
	Port Type	Type G
	Port Size	1/2 in
	Connection Thread Standard	BSP
	Actuation Type	Solenoid
	Voltage	110V ac
	Series	VP700
	Seal Material	Elastic Rubber
	Mount Type	In-Line, Base
	Number of Ports	3
	Maximum Operating Pressure	1 Mpa
	Body Material	Aluminium
	Port Gender	Female
	Minimum Pilot Pressure	0.2MPa
	Minimum Operating Temperature	-10°C
	Mount Pattern	Base
	Valve Function	Air Operated
	Maximum Pilot Pressure	1MPa
	Maximum Flow Rate	3707L/min
	Maximum Operating Temperature	50°C
	Solenoid Power Consumption	0.55W
	Hazardous Area Certification	NO
	Standards/Approvals	IP65 likely, RoHS, EN175301-803 DIN terminal
	Number of Positions	2
	Electrical Connection Type	DIN Terminal
