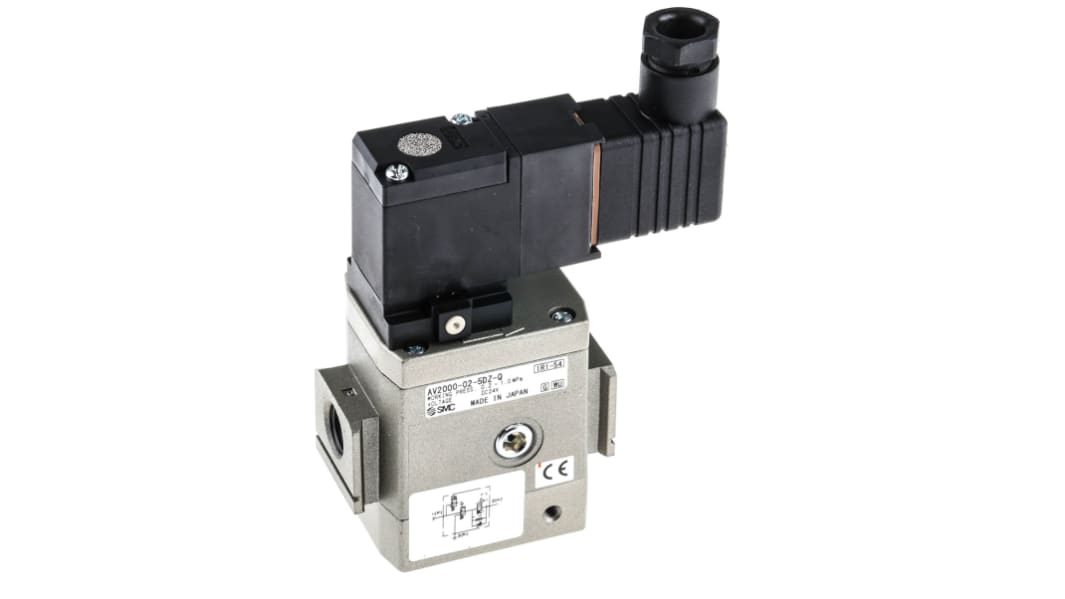

SMC Pneumatic Soft Start Valve, R 1/4 Female 1.5 (Proof) MPa, 1 MPa

Pneumatic start-up valves gradually increase pressure on system start-up and exhaust air rapidly when the system is shut down. Air supply and exhaust can be manually operated, and can be locked in the exhaust position.

Combined soft start and dump spring return valve
Temperature range 0°C to +60°C
Compatible with SMC modular series FRL
Maximum working pressure: 10 bar
Proof pressure rating:15 bar
Gauge port sizes from G 1/4 to G 1/2
Piston and slide material NBR
Low power consumption solenoid - 24Vdc @ 1.8W
Large CV factor

When using the dump valve facility, it is recommended that a silencer is fitted to the relieving port.

This pneumatic soft start valve is designed for efficient control of air supply during system activationA part of the SMC AV2000 Series, this valve features a supply inlet port with an R 1/4 female thread, allowing for a maximum operating pressure of 1.5 MPa and a minimum of 0.2 from die-cast aluminium, it meets established standards including CE, EC Directive, and TUV, ensuring reliability and safety in various applications.

• Incorporates pneumatic soft start technology for smooth operation
• Rapidly exhausts system air when turned off, preventing pressure spikes
• Modular design compatible with F.R.L. combinations for versatile integration
• Effective area of 20mm², optimising air flow and pressure control
• CE and TUV certified, adhering to industry compliance standards
• Low power consumption, enhancing system efficiency and performance

• Used in automation technology to control air supply smoothly
• Ideal for involving pneumatic machinery and systems
• Suitable for integration into control systems for enhanced efficiency
• Utilised in factory automation environments requiring pressure management

The soft start valve gradually increases supply pressure during activation, ensuring smoother operation and reducing wear on connected components, which promotes longevity and reliability in pneumatic systems.

Constructed from die-cast aluminium, the valve offers durability and strength, making it suitable for various industrial environments while meeting stringent performance standards.

Yes, the modular design allows easy integration with F.R.L. combinations, providing flexibility when retrofitting to existing pneumatic systems without major modifications.
