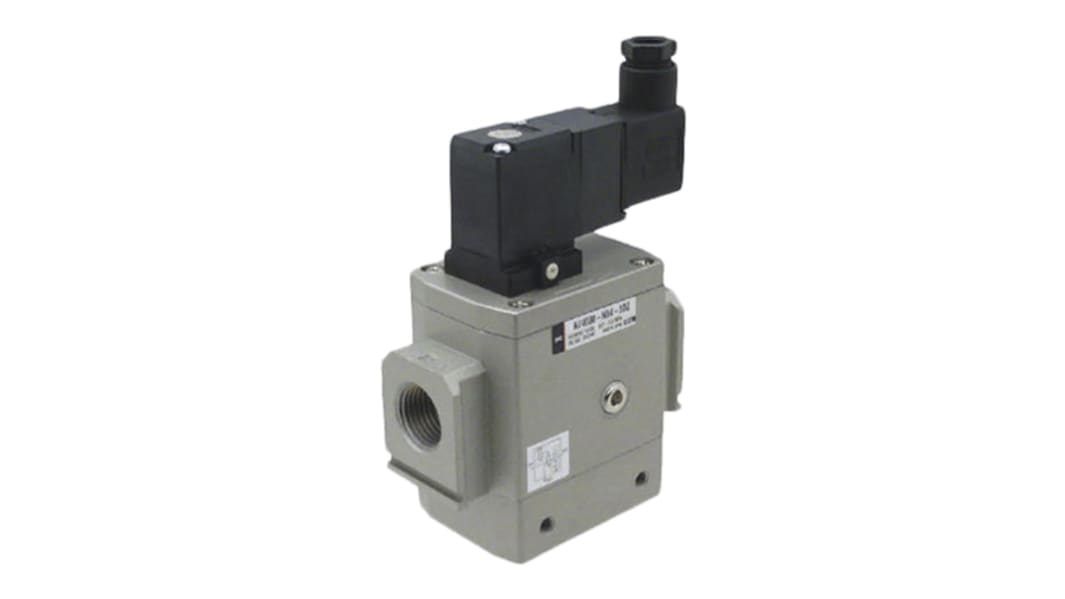

SMC Pneumatic Soft Start Valve 1 Mpa

View this category

Subtotal (1 unit)*

£162.74

(exc. VAT)

£195.29

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£162.74

*price indicative

RS Stock No.:
907-6609
Mfr. Part No.:
AV4000-04-5DZ-Q
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Product Type

Pneumatic Soft Start Valve

Series

AV4000

Minimum Operating Pressure

0.2MPa

Maximum Operating Pressure

1 Mpa

Minimum Operating Temperature

0°C

Material

Cap, Body

Maximum Operating Temperature

60°C

Standards/Approvals

DIN VDE0580, EC Directives, TÜV Rheinland

COO (Country of Origin):
FR

Soft Start & Dump Valve


Pneumatic start-up valves gradually increase pressure on system start-up and exhaust air rapidly when the system is shut down. Air supply and exhaust can be manually operated, and can be locked in the exhaust position.

Combined soft start and dump spring return valve

Temperature range 0°C to +60°C

Compatible with SMC modular series FRL

Maximum working pressure: 10 bar

Proof pressure rating:15 bar

Gauge port sizes from G 1/4 to G 1/2

Piston and slide material NBR

Low power consumption solenoid - 24Vdc @ 1.8W

Large CV factor

Note

When using the dump valve facility, it is recommended that a silencer is fitted to the relieving port.
