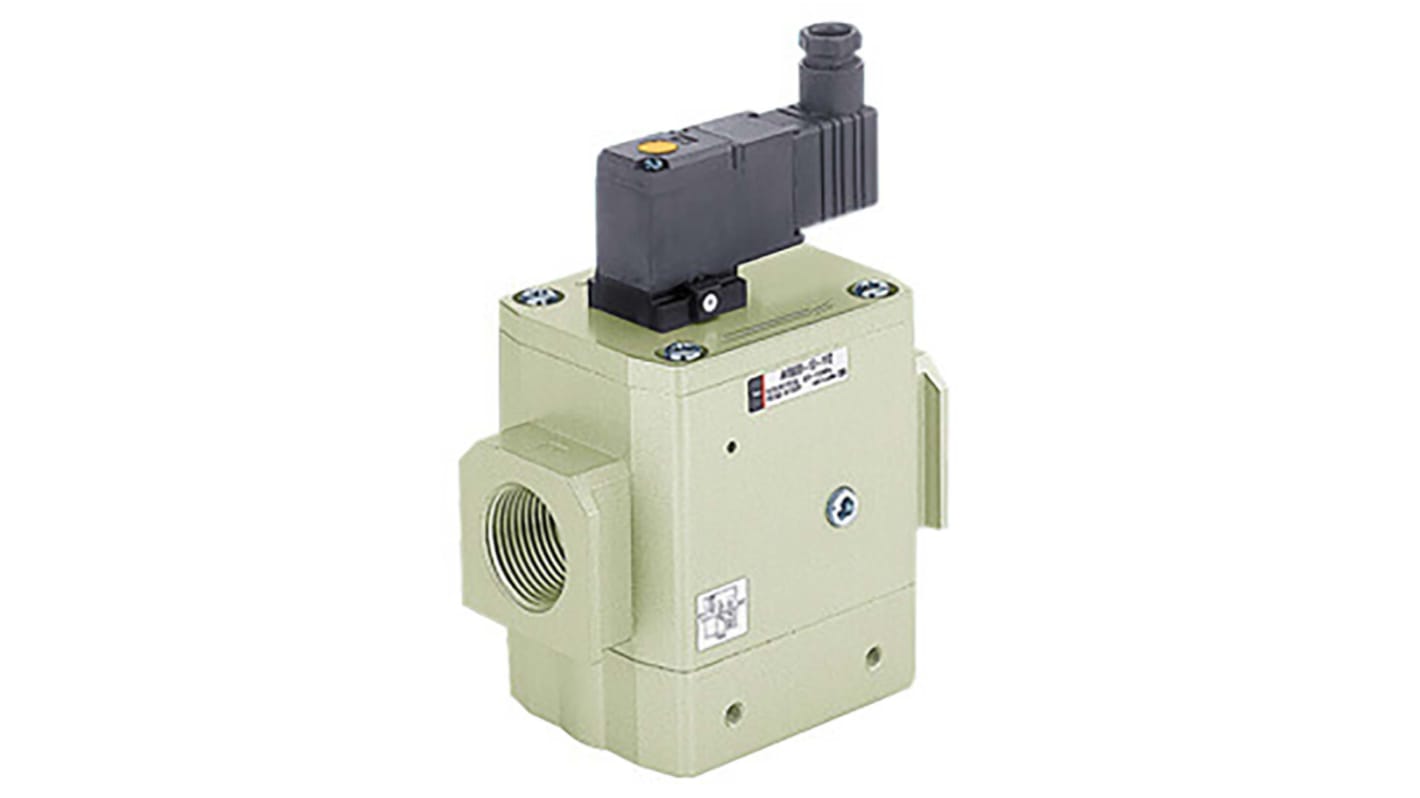

SMC Pneumatic Soft Start Valve 1/4 in G 1/4 1 MPa 1/4 in

Subtotal (1 unit)*

£153.24

(exc. VAT)

£183.89

(inc. VAT)

Last RS stock

Units	Per unit
1 +	£153.24

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Pneumatic Soft Start Valve
	Series	AV2000
	Sub Type	Control Valve
	Inlet Connection Size	1/4 in
	Inlet Connection Type	G 1/4
	Outlet Connection Size	1/4 in
	Minimum Operating Pressure	0.2MPa
	Maximum Operating Pressure	1 MPa
	Material	ADC
	Maximum Operating Temperature	60°C
	Standards/Approvals	No

	Select all
	Brand SMC
	Product Type Pneumatic Soft Start Valve
	Series AV2000
	Sub Type Control Valve
	Inlet Connection Size 1/4 in
	Inlet Connection Type G 1/4
	Outlet Connection Size 1/4 in
	Minimum Operating Pressure 0.2MPa
	Maximum Operating Pressure 1 MPa
	Material ADC
	Maximum Operating Temperature 60°C
	Standards/Approvals No

Operating pressure range: 0.2 - 1MPa

Coil rated voltage: 12, 24VDC,

100, 110 to 120, 200, 220VAC

Allowable voltage fluctuation:

-15% to +10% of rated voltage

Ambient & fluid temperature: 0 to 60°C

Electrical entry: grommet, type D DIN connector,type Y DIN connector
