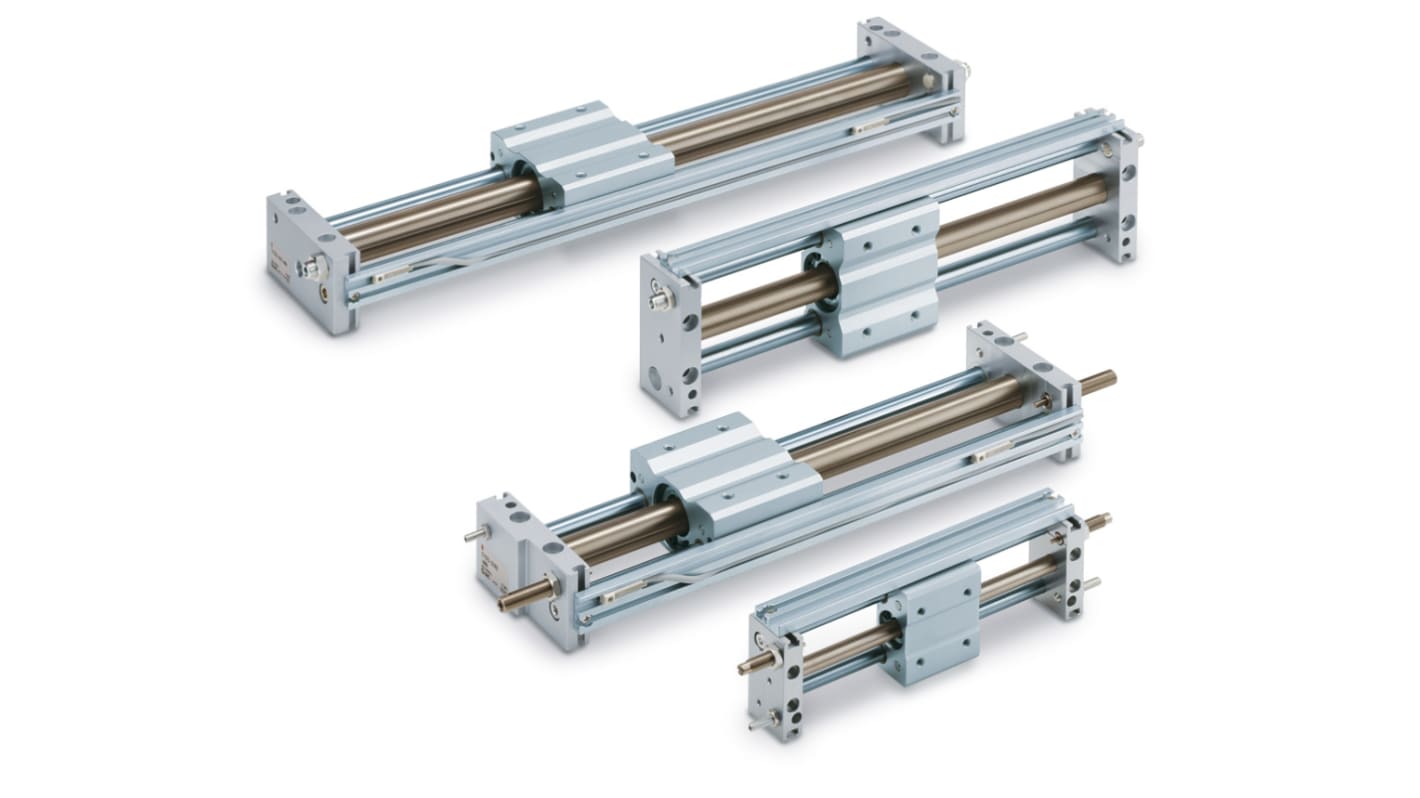

SMC Double Acting Acting Rodless Pneumatic Cylinder 25mm Bore 1.5 m
- RS Stock No.:
- 254-6727
- Mfr. Part No.:
- CY1S25TF-600Z
- Brand:
- SMC
Subtotal (1 unit)*
£718.09
(exc. VAT)
£861.71
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £718.09 |
*price indicative
- RS Stock No.:
- 254-6727
- Mfr. Part No.:
- CY1S25TF-600Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rodless Pneumatic Cylinder | |
| Bore Diameter | 25mm | |
| Stroke Length | 1.5m | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 7 bar | |
| Cushioning Type | Shock Absorber, Rubber | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Weight | 1.84kg | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rodless Pneumatic Cylinder | ||
Bore Diameter 25mm | ||
Stroke Length 1.5m | ||
Action Type Double Acting | ||
Maximum Operating Pressure 7 bar | ||
Cushioning Type Shock Absorber, Rubber | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Weight 1.84kg | ||
- COO (Country of Origin):
- CZ
The SMC rod less cylinder has magnetically coupled uses industrial strength magnets located in the piston and external carriage to form a single unit that will travel when actuated with air pressure. It is available in a standard or heavy duty magnetic ho
0.18 Map minimum operating pressure
Auto switch capable
