SMC Double Acting Acting Rodless Pneumatic Cylinder 40mm Bore 600 mm
- RS Stock No.:
- 370-029
- Distrelec Article No.:
- 110-94-570
- Mfr. Part No.:
- MY1B40TFG-600Z
- Brand:
- SMC
Subtotal (1 unit)*
£491.32
(exc. VAT)
£589.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £491.32 |
*price indicative
- RS Stock No.:
- 370-029
- Distrelec Article No.:
- 110-94-570
- Mfr. Part No.:
- MY1B40TFG-600Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rodless Pneumatic Cylinder | |
| Bore Diameter | 40mm | |
| Stroke Length | 600mm | |
| Connection Thread Standard | G | |
| Series | MY1B | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Body Material | Polyurethane | |
| Cushioning Type | Air Cushion | |
| Mounting Orientation | Auto Switch Mount | |
| Minimum Operating Temperature | 5°C | |
| Guide Type | Basic | |
| Maximum Operating Temperature | 60°C | |
| Weight | 6.11kg | |
| Width | 940mm | |
| Length | 940mm | |
| Standards/Approvals | RoHS | |
| Port Thread Size | 1/4 in G | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rodless Pneumatic Cylinder | ||
Bore Diameter 40mm | ||
Stroke Length 600mm | ||
Connection Thread Standard G | ||
Series MY1B | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Body Material Polyurethane | ||
Cushioning Type Air Cushion | ||
Mounting Orientation Auto Switch Mount | ||
Minimum Operating Temperature 5°C | ||
Guide Type Basic | ||
Maximum Operating Temperature 60°C | ||
Weight 6.11kg | ||
Width 940mm | ||
Length 940mm | ||
Standards/Approvals RoHS | ||
Port Thread Size 1/4 in G | ||
- COO (Country of Origin):
- JP

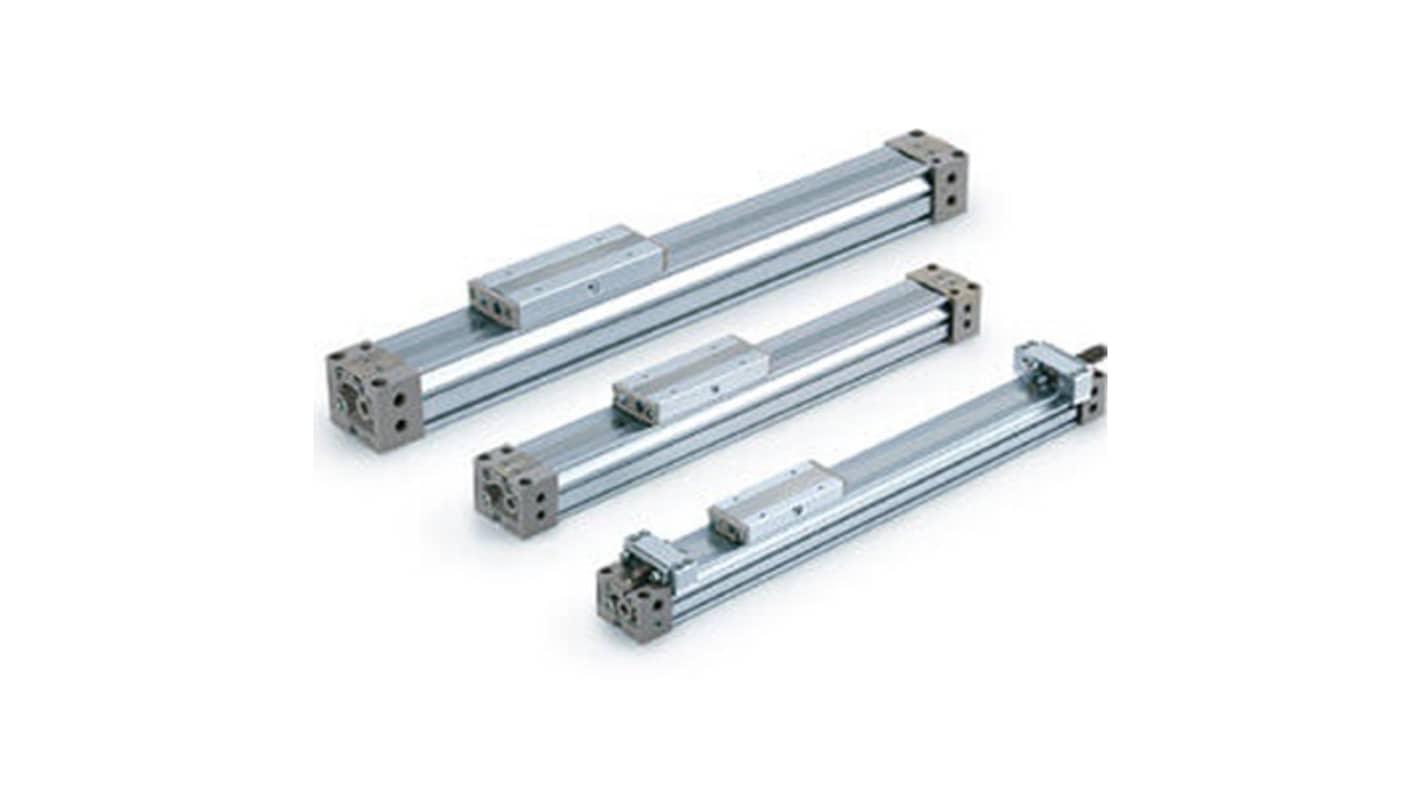

The SMC Mechanical Joint Rodless Cylinder is designed for applications requiring smooth and efficient linear motion without the need for stroke adjustment. It features an easy-to-use cushion needle adjustment, allowing for precise control of cushioning performance during operation.
Flexibility in the auto switch mounting
Entrance of external particle is reliability improved and maintenance costs reduced
