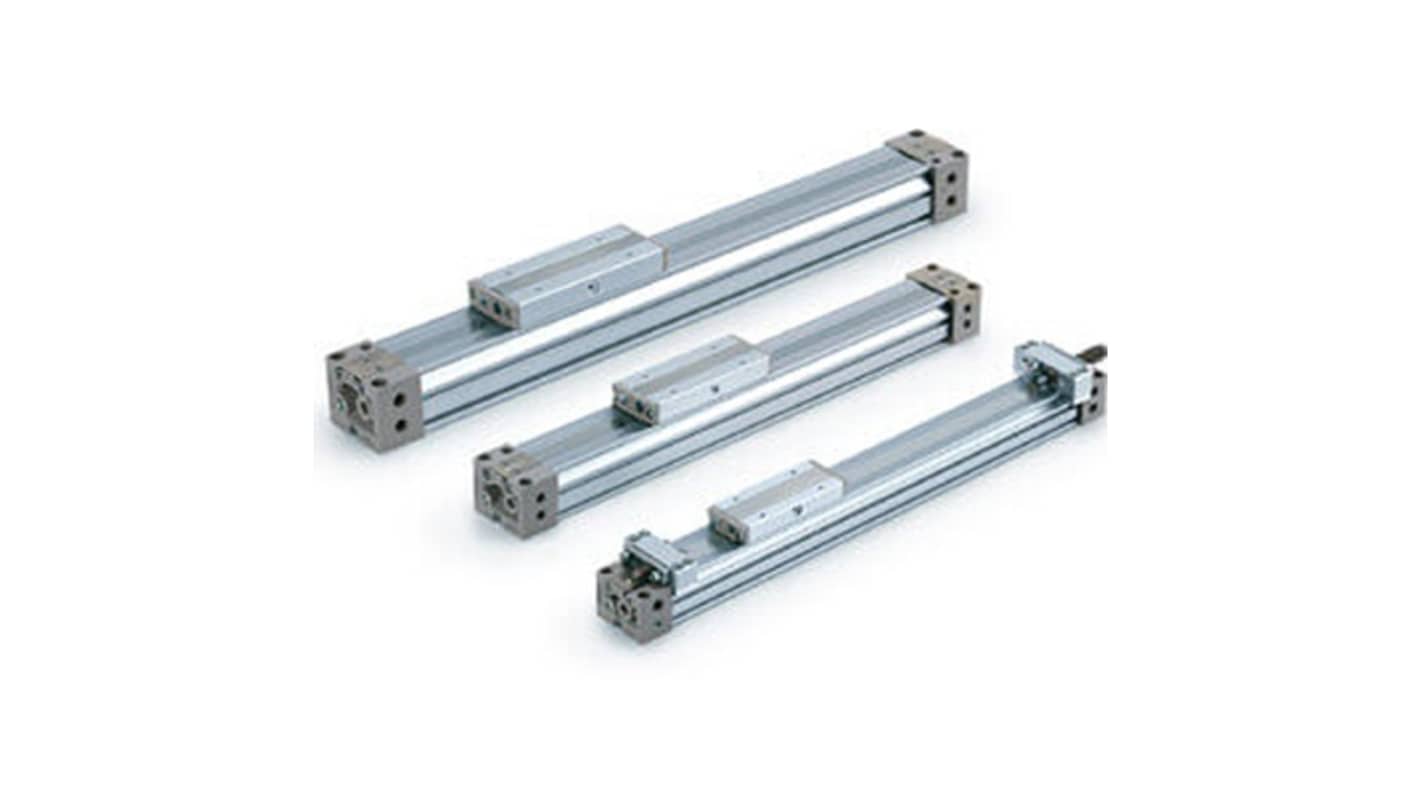

SMC Double Acting Acting Rodless Pneumatic Cylinder 40mm Bore 300 mm
- RS Stock No.:
- 370-024
- Distrelec Article No.:
- 110-94-531
- Mfr. Part No.:
- MY1B40TFG-300Z
- Brand:
- SMC
Subtotal (1 unit)*
£444.12
(exc. VAT)
£532.94
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £444.12 |
*price indicative
- RS Stock No.:
- 370-024
- Distrelec Article No.:
- 110-94-531
- Mfr. Part No.:
- MY1B40TFG-300Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rodless Pneumatic Cylinder | |
| Bore Diameter | 40mm | |
| Connection Thread Standard | G | |
| Stroke Length | 300mm | |
| Series | MY1B | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Body Material | Polyurethane | |
| Mounting Orientation | Auto Switch Mount | |
| Cushioning Type | Air Cushion | |
| Minimum Operating Temperature | 5°C | |
| Guide Type | Basic | |
| Maximum Operating Temperature | 60°C | |
| Width | 640mm | |
| Standards/Approvals | RoHS | |
| Weight | 4.61kg | |
| Length | 640mm | |
| Port Thread Size | 1/4 in G | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rodless Pneumatic Cylinder | ||
Bore Diameter 40mm | ||
Connection Thread Standard G | ||
Stroke Length 300mm | ||
Series MY1B | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Body Material Polyurethane | ||
Mounting Orientation Auto Switch Mount | ||
Cushioning Type Air Cushion | ||
Minimum Operating Temperature 5°C | ||
Guide Type Basic | ||
Maximum Operating Temperature 60°C | ||
Width 640mm | ||
Standards/Approvals RoHS | ||
Weight 4.61kg | ||
Length 640mm | ||
Port Thread Size 1/4 in G | ||
- COO (Country of Origin):
- JP
The SMC High-precision, mechanically jointed rodless guided cylinder designed for pneumatic systems. Its advanced design ensures precise linear motion, making it ideal for demanding automation applications.
Compact construction for space saving installations
Durable build for long term reliability
Suitable for high speed and precise operations in automation systems
