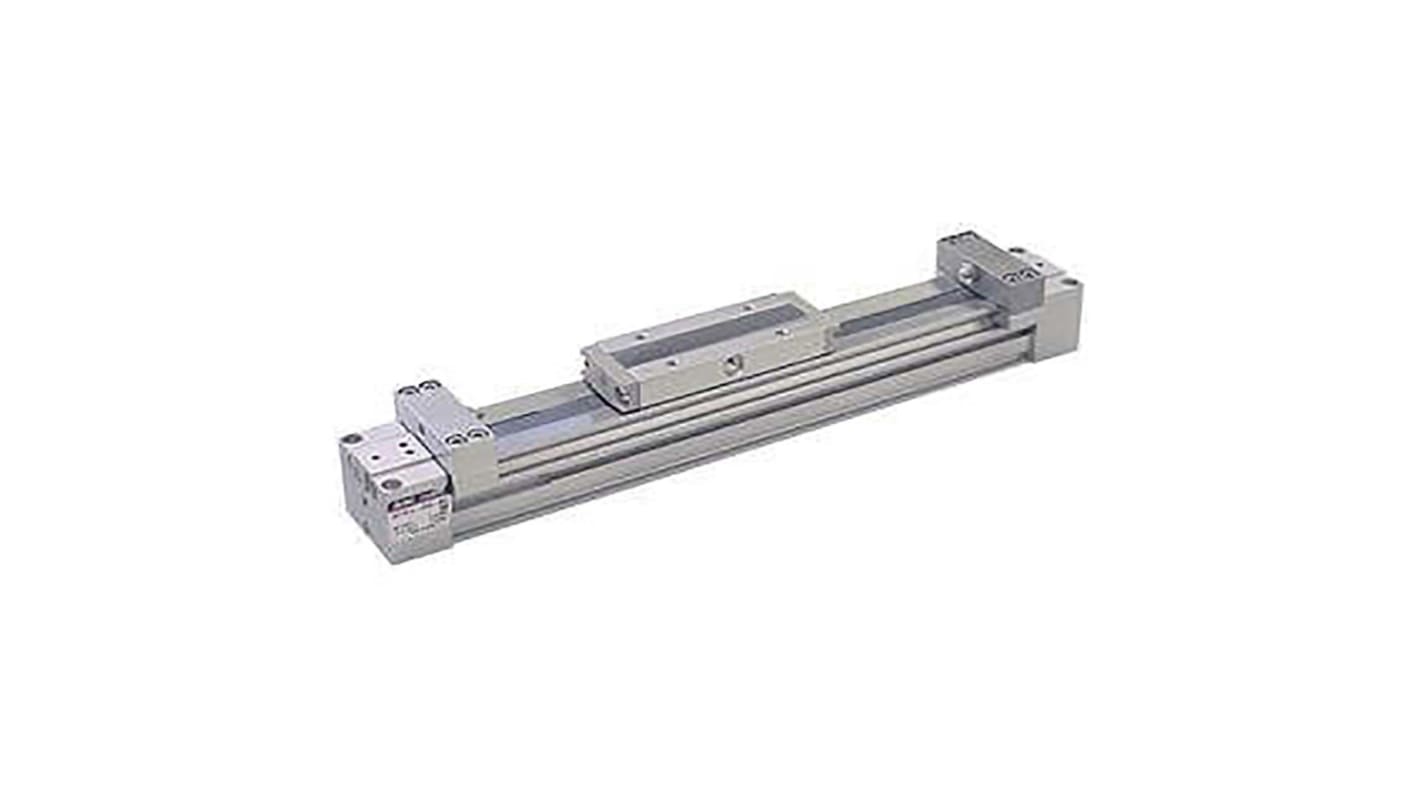

SMC Double Acting Acting Rodless Pneumatic Cylinder 20mm Bore 600 mm
- RS Stock No.:
- 196-1174
- Mfr. Part No.:
- MY1B20G-600
- Brand:
- SMC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£289.23
(exc. VAT)
£347.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £289.23 |
| 5 + | £277.66 |
*price indicative
- RS Stock No.:
- 196-1174
- Mfr. Part No.:
- MY1B20G-600
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rodless Pneumatic Cylinder | |
| Bore Diameter | 20mm | |
| Connection Thread Standard | Metric | |
| Stroke Length | 600mm | |
| Series | MY1B | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Cushioning Type | Air Cushion | |
| Mounting Orientation | Horizontal | |
| Minimum Operating Temperature | 5°C | |
| Port Gender | Female | |
| Guide Type | Basic | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC | |
| Width | 45mm | |
| Height | 46mm | |
| Weight | 1.1kg | |
| Length | 200mm | |
| Port Thread Size | M5 x 0.8 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rodless Pneumatic Cylinder | ||
Bore Diameter 20mm | ||
Connection Thread Standard Metric | ||
Stroke Length 600mm | ||
Series MY1B | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Cushioning Type Air Cushion | ||
Mounting Orientation Horizontal | ||
Minimum Operating Temperature 5°C | ||
Port Gender Female | ||
Guide Type Basic | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC | ||
Width 45mm | ||
Height 46mm | ||
Weight 1.1kg | ||
Length 200mm | ||
Port Thread Size M5 x 0.8 | ||
- COO (Country of Origin):
- CN
Mechanical joint rodless cylinder
Bore sizes: 16, 20, 50, 63, 80, 100 (mm)
Strokes from 100mm through 2000mm depending upon bore size
With one or two stroke adjusters with or without shocks
Variety of switches and a variety of lead wire lengths
