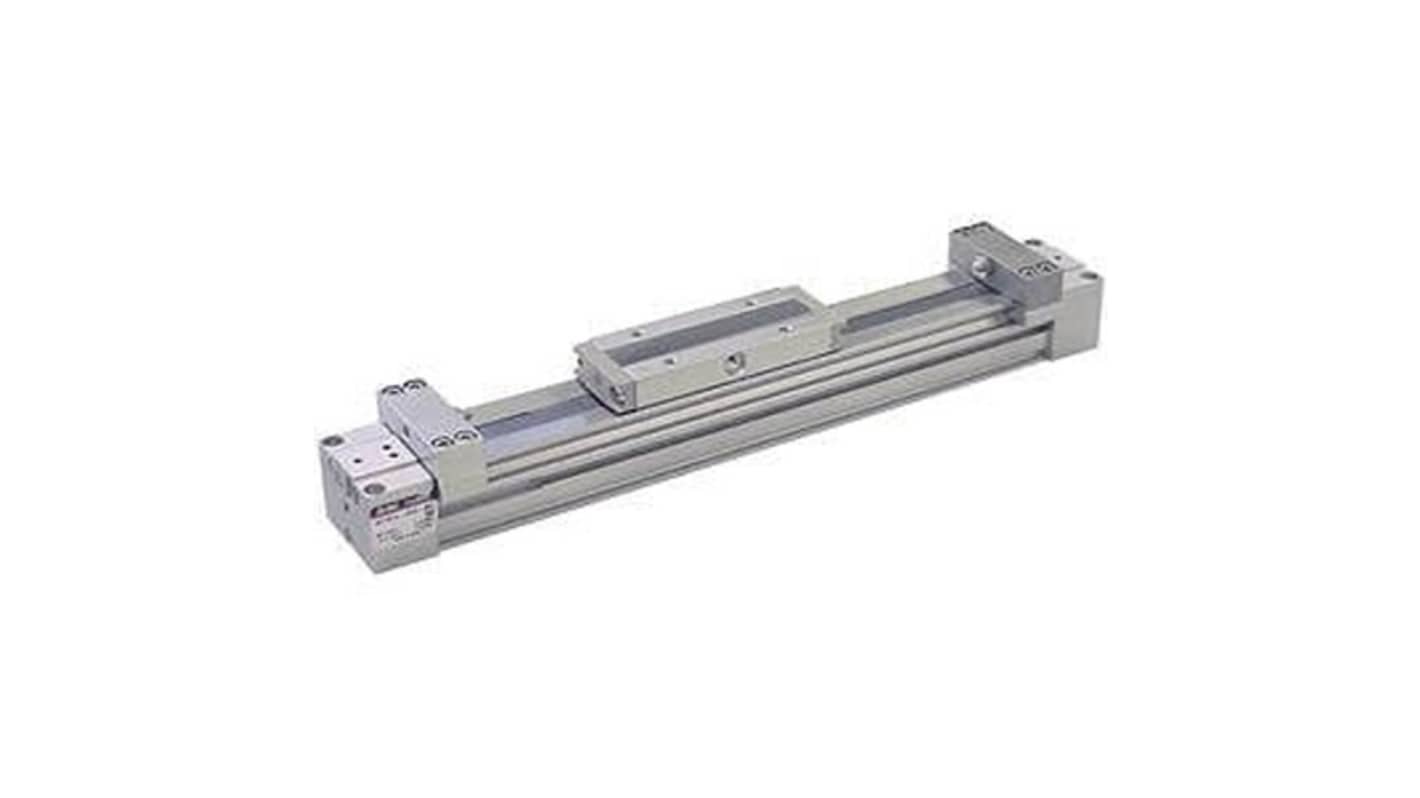

SMC Double Acting Acting Rodless Pneumatic Cylinder 20 mm Bore 800 mm
- RS Stock No.:
- 369-506
- Mfr. Part No.:
- MY1B20G-800
- Brand:
- SMC
Subtotal (1 unit)*
£263.16
(exc. VAT)
£315.79
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £263.16 |
*price indicative
- RS Stock No.:
- 369-506
- Mfr. Part No.:
- MY1B20G-800
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rodless Pneumatic Cylinder | |
| Bore Size | 20mm | |
| Connection Thread Standard | G | |
| Stroke Length | 800mm | |
| Series | MY1B | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Cushioning Type | Air Cushion | |
| Mounting Orientation | Horizontal | |
| Guide Type | Basic | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 1m | |
| Standards/Approvals | RoHS | |
| Width | 1m | |
| Port Thread Size | M5 x 0.8 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rodless Pneumatic Cylinder | ||
Bore Size 20mm | ||
Connection Thread Standard G | ||
Stroke Length 800mm | ||
Series MY1B | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Cushioning Type Air Cushion | ||
Mounting Orientation Horizontal | ||
Guide Type Basic | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Length 1m | ||
Standards/Approvals RoHS | ||
Width 1m | ||
Port Thread Size M5 x 0.8 | ||
- COO (Country of Origin):
- JP
The SMC Mechanically jointed rodless guided cylinder designed for pneumatic systems. Its innovative design ensures compactness and efficiency, making it ideal for automation setups requiring precise linear motion.
Durable construction for long term reliability
Equipped with a guided mechanism for enhanced stability
Suitable for high speed and precise operations in automation systems
