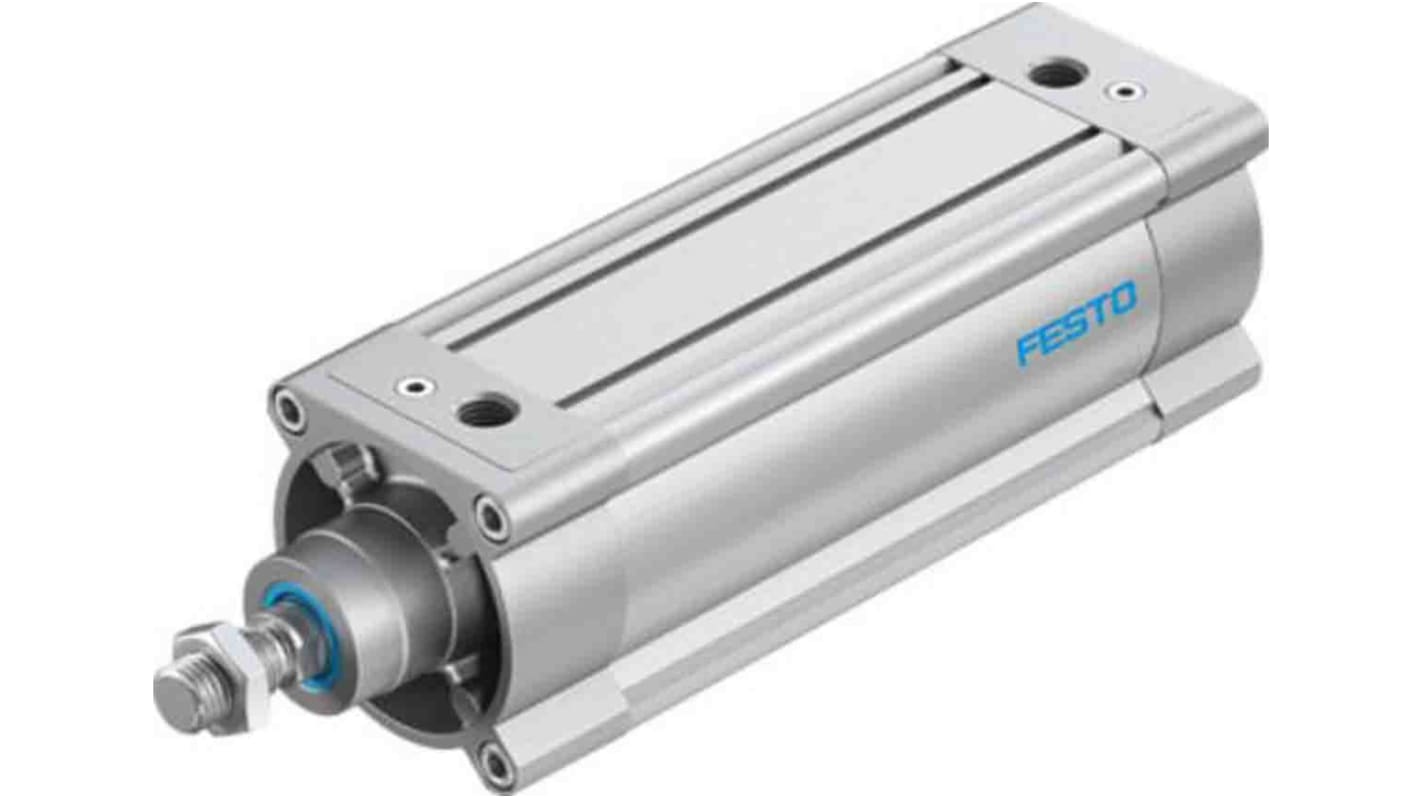

Festo Pneumatic Piston Rod Cylinder - 1384811, 100mm Bore, 200mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 202-1165
- Mfr. Part No.:
- DSBC-100-200-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£381.65
(exc. VAT)
£457.98
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 17 November 2025
Units | Per unit |
|---|---|
| 1 + | £381.65 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 202-1165
- Mfr. Part No.:
- DSBC-100-200-PPVA-N3
- Brand:
- Festo
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 1384811 | |
| Stroke | 200mm | |
| Bore | 100mm | |
| Action | Double | |
| Pneumatic Connection | G 1/2 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Pneumatic Cushioning | |
| Diameter | 100mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Better World Product | Yes | |
| Better World Claim | Repairable by the end user | |
| VDMA Standard | VDMA24364-B1/B2-L | |
| Minimum Operating Temperature | -20°C | |
| Test Weight | 39 g ( @ 10 mm Stroke) | |
| Stroke Interval Weight | 1000 g (@ 0mm Stroke) | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1384811 | ||
Stroke 200mm | ||
Bore 100mm | ||
Action Double | ||
Pneumatic Connection G 1/2 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Diameter 100mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Better World Product Yes | ||
Better World Claim Repairable by the end user | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Minimum Operating Temperature -20°C | ||
Test Weight 39 g ( @ 10 mm Stroke) | ||
Stroke Interval Weight 1000 g (@ 0mm Stroke) | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- HU
Festo Pneumatic Piston Rod Cylinder, M20x1.5 Piston Rod Thread, 0.4 to 12 Bar Operating Pressure - DSBC-100-200-PPVA-N3
Features & Benefits
• High alloy steel piston for use in heavy-duty applications
• Wide operating temperature range between -20°C and +80°C for use in demanding conditions
• PPV pneumatic cushioning adjustable at both ends for versatility, and to withstand impact and prevent damage
Applications
• Agricultural equipment
• Industrial automation
• Transportation industry
What's the stroke force of this cylinder?
