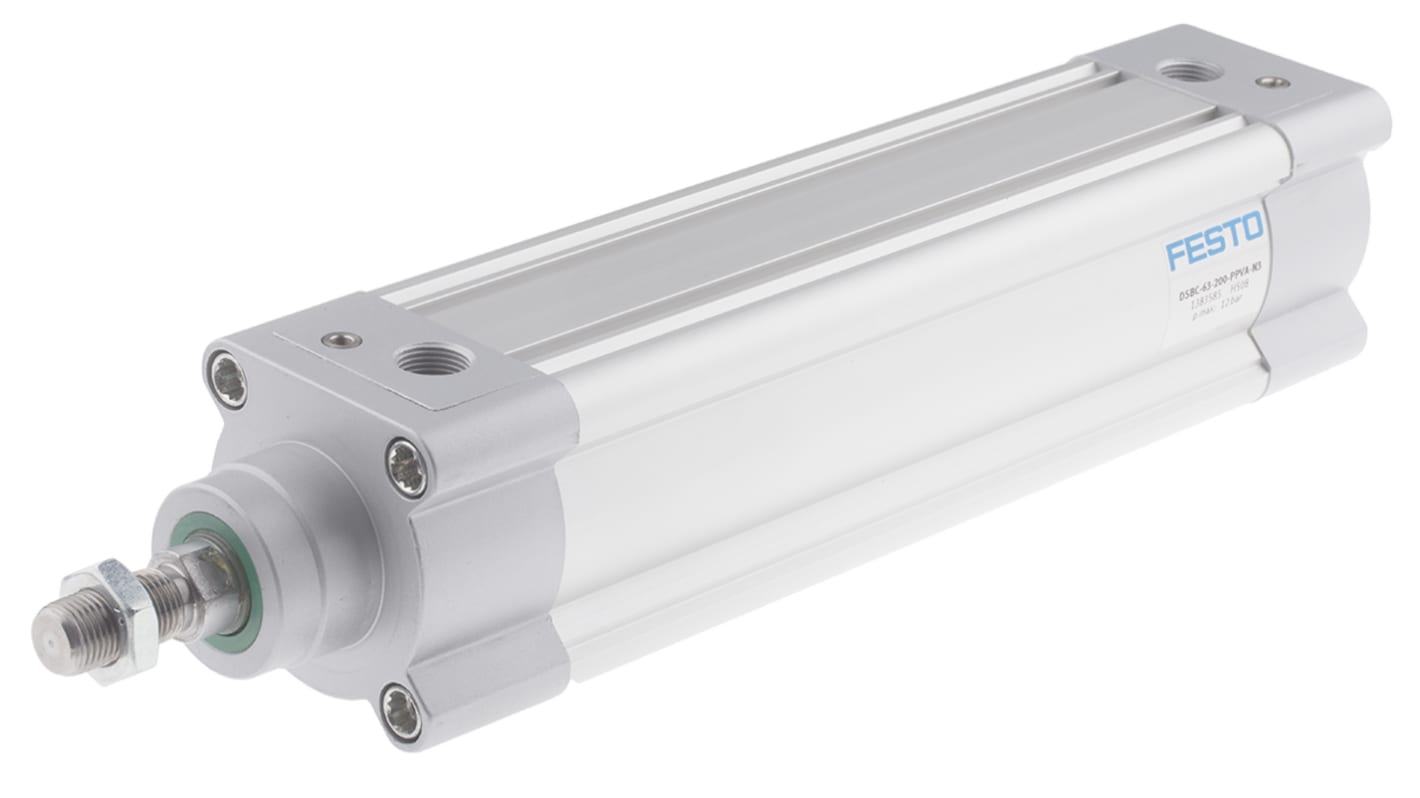

Festo Pneumatic Piston Rod Cylinder - 1383585, 63mm Bore, 200mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5193
- Mfr. Part No.:
- DSBC-63-200-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£215.03
(exc. VAT)
£258.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £215.03 |
*price indicative
- RS Stock No.:
- 121-5193
- Mfr. Part No.:
- DSBC-63-200-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 1383585 | |
| Action | Double | |
| Bore | 63mm | |
| Stroke | 200mm | |
| Pneumatic Connection | G 3/8 | |
| Port Connection | G 3/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 393.1 x 75 x 75mm | |
| Height | 75mm | |
| Length | 393.1mm | |
| Width | 75mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Minimum Operating Temperature | -20°C | |
| Test Weight | 1740 g @ 0 mm Stroke | |
| VDMA Standard | 24562 | |
| Stroke Interval Weight | 62 g @ 10 mm Stroke | |
| Weight | 1.7kg | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383585 | ||
Action Double | ||
Bore 63mm | ||
Stroke 200mm | ||
Pneumatic Connection G 3/8 | ||
Port Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 393.1 x 75 x 75mm | ||
Height 75mm | ||
Length 393.1mm | ||
Width 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Minimum Operating Temperature -20°C | ||
Test Weight 1740 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 62 g @ 10 mm Stroke | ||
Weight 1.7kg | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, M16 Piston Thread, 1.3J Impact Energy at End Positions - DSBC-63-200-PPVA-N3
Get loads moving in the right direction with this pneumatic piston rod cylinder from Festo. As a double-acting unit, the forward and backward thrusts of its piston are controlled by compressed air entering through its two end ports. With a stroke length of 200mm, this unit is the right choice for short-range operations. Its die-cast aluminium housing stands up to impact and corrosion, making it fit for use in harsh industrial environments. Pneumatic cushioning on both ends absorbs the shock of the piston's movement, which reduces noise and vibration to boost performance.
Features & Benefits
• Operating temperature range between -20°C and +80°C means it's safe to use in demanding conditions
• Standard G3/8 threaded port for simple and time-efficient mounting
• Integrated TPE-U(PU) seals block leakages and keep out contaminants to maintain pressure and keep media clean
• Advance stroke of 1870N and return stroke of 1682N for heavy-duty use
• Standard G3/8 threaded port for simple and time-efficient mounting
• Integrated TPE-U(PU) seals block leakages and keep out contaminants to maintain pressure and keep media clean
• Advance stroke of 1870N and return stroke of 1682N for heavy-duty use
Applications
• Process and packaging equipment
• Aerospace engineering
• Pharmaceutical production
• Aerospace engineering
• Pharmaceutical production
How much does this cylinder weigh?
This unit weighs just 1.74kg, so it's easy to handle during installation and doesn't put much strain on your equipment.
